Schweitzer Engineering Laboratories SEL-387E - Metering and Element Testing

3-60 Protection Functions Date Code 20080110
SEL-387E Instruction Manual

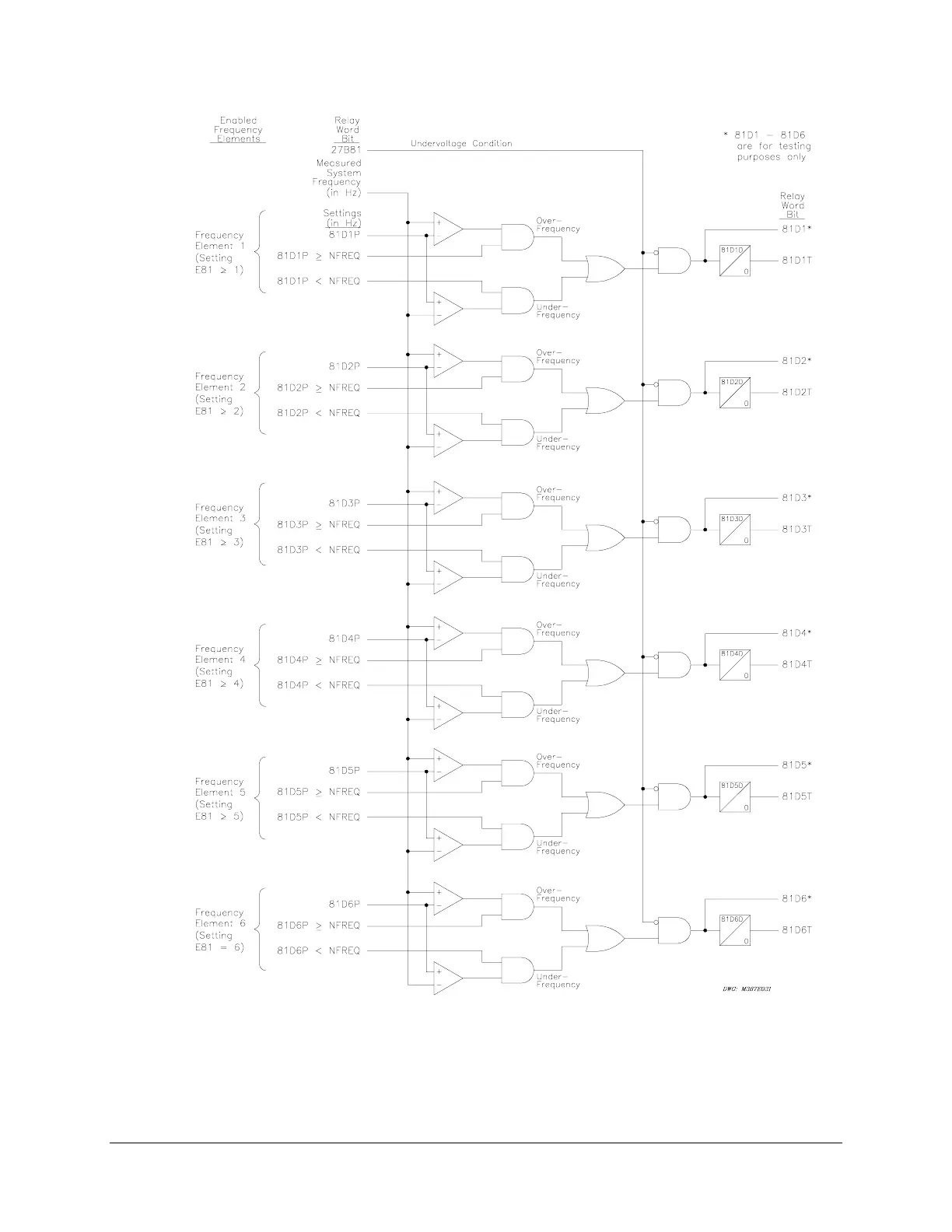

Figure 3.37: Frequency Element Logic
Note:
Instantaneous frequency element Relay Word bits 81D1–81D6 should not be used for
applications other than testing.
