The ICD file described the capabilities of an IED, including information on LN and GOOSE
support. The SSD file describes the single-line diagram of the substation and the required LNs.
The SCD file contains information on all IEDs, communications configuration data, and a
substation description. The CID file, of which there may be several, describes a single
instantiated IED within the project, and includes address information.
Reports
The SEL-387E supports buffered and unbuffered report control blocks in the report model as
defined in IEC 61850-8-1:2004(E). The predefined reports shown in
Figure H.1 are available by
default via IEC 61850.

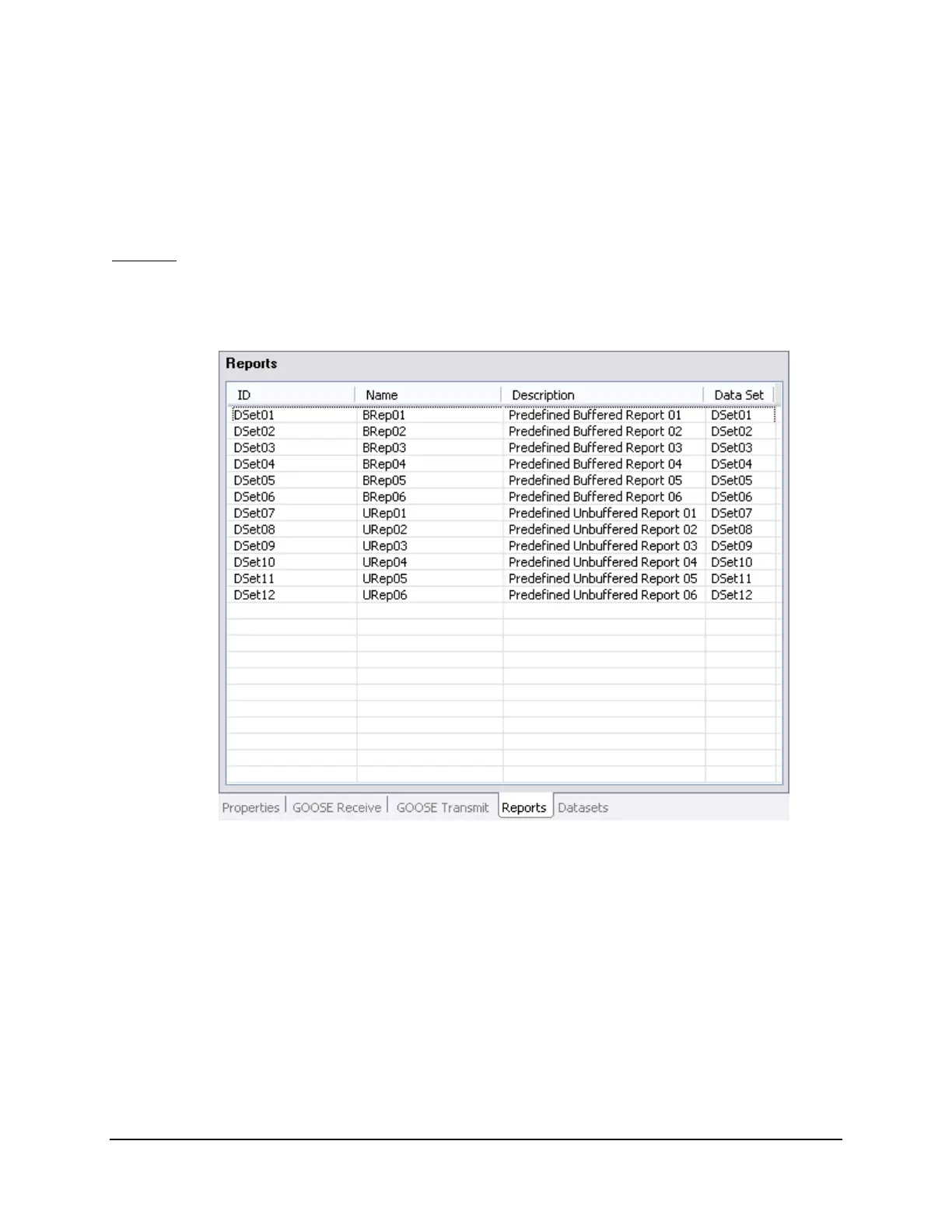

Figure H.1: SEL-387E Predefined Reports
There are 12 report control blocks, six buffered reports and six unbuffered. For each report
control block, there can be just one client association, i.e., only one client can be associated to a
report control block (BRCB or URCB) at any given time. The number of reports (12) and the
type of reports (buffered or unbuffered) cannot be changed. However, by using
AC SEL ERATOR
Architect, you can reallocate data within each report dataset to present different data attributes
for each report beyond the predefined datasets.
For buffered reports, connected clients may edit the report parameters shown in
Table H.4.
