RCB Attribute
User changeable
(Report Disabled)
User changeable
(Report Enabled)
Default Values
TrgOps YES dchg
qchg
IntgPd YES FALSE
GI YES
a
0
a
Exhibits a pulse behavior. Write a one to issue the command. Once command is accepted will
return to zero. Always read as zero.
For Buffered Reports, only one client can enable the RptEna attribute of the BRCB at a time
resulting in a client association for that BRCB. Once enabled, the associated client has exclusive
access to the BRCB until the connection is closed or the client disables the RptEna attribute.
Once enabled, all unassociated clients have read only access to the BRCB.
For Unbuffered Reports, up to six (6) clients can enable the RptEna attribute of the URCB at a
time, resulting in multiple client associations for that URCB. Once enabled, each client has
independent access to a copy of that URCB. The Resv attribute is writable, however, the
SEL-387E does not support reservations. Writing any field of the URCB causes the client to
obtain their own copy of the URCB-in essence, acquiring a reservation.
Datasets
The list of datasets in
Figure H.2 is the default for an SEL-387E device.

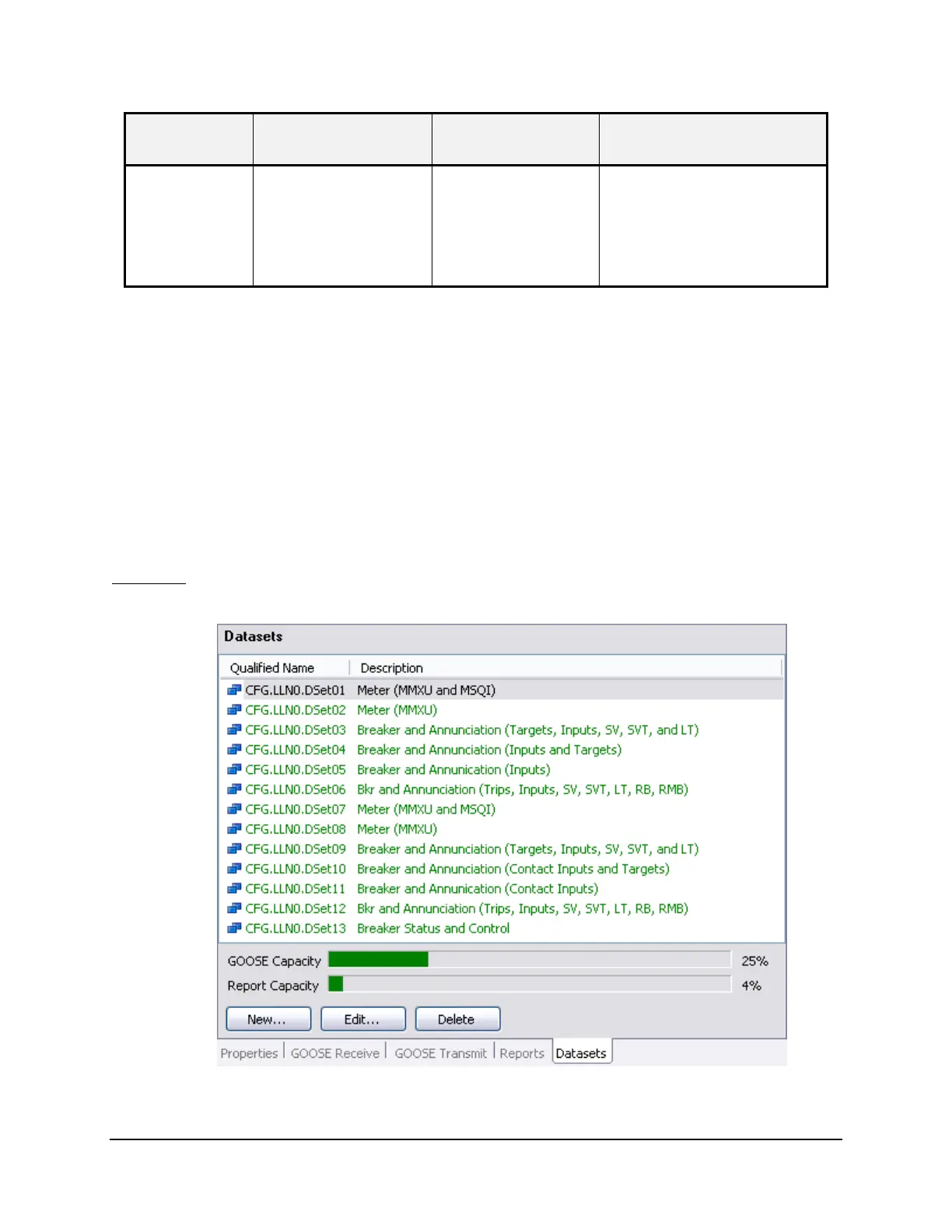

Figure H.2: SEL-387E Datasets
