Section 04 ENGINE (2-STROKE)
Subsection 04 (TOP END)

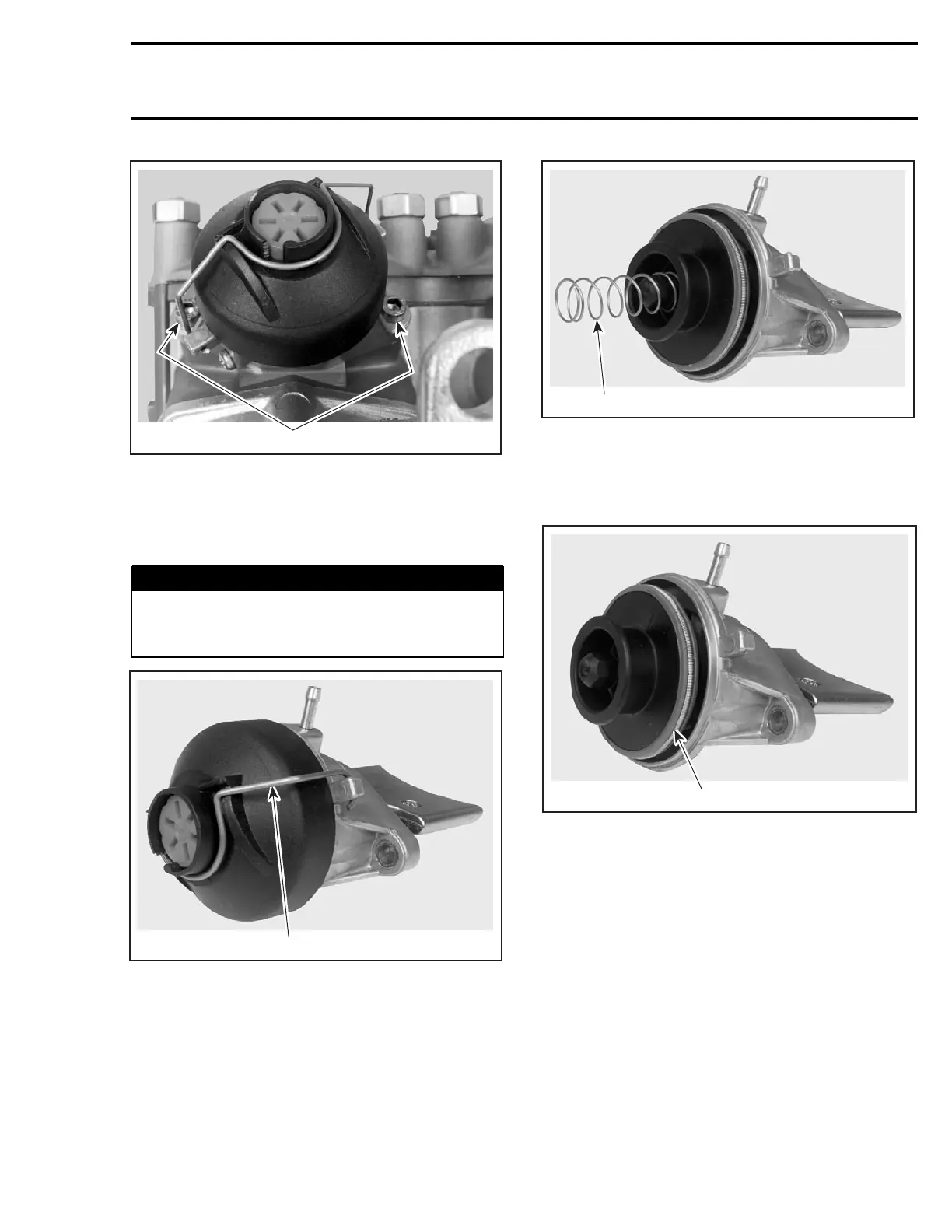

F06D0QA
1
1. Remove screws
Remove RAVE valve no. 15.
Remove the cover no. 18 of the valve by releasing
the spring no. 16.

WARNING
Firmly hold cover to valve base. The com-
pression spring inside the valve is applying
pressure against the cover.
F06D0RA
1
1. Spring
Remove the compression spring no. 19.
F06D25A
1
1. Remove spring
787 RFI Engines
Remove spring no. 30 retaining bellows no. 21 to
valve piston no. 20.
F06D0SA
1
1. Spring
Free bellows no. 21 from valve piston no. 20.
smr2004-Complete Line Up 105
