Section 04 ENGINE (2-STROKE)
Subsection 04 (TOP END)
F06D0TA
1

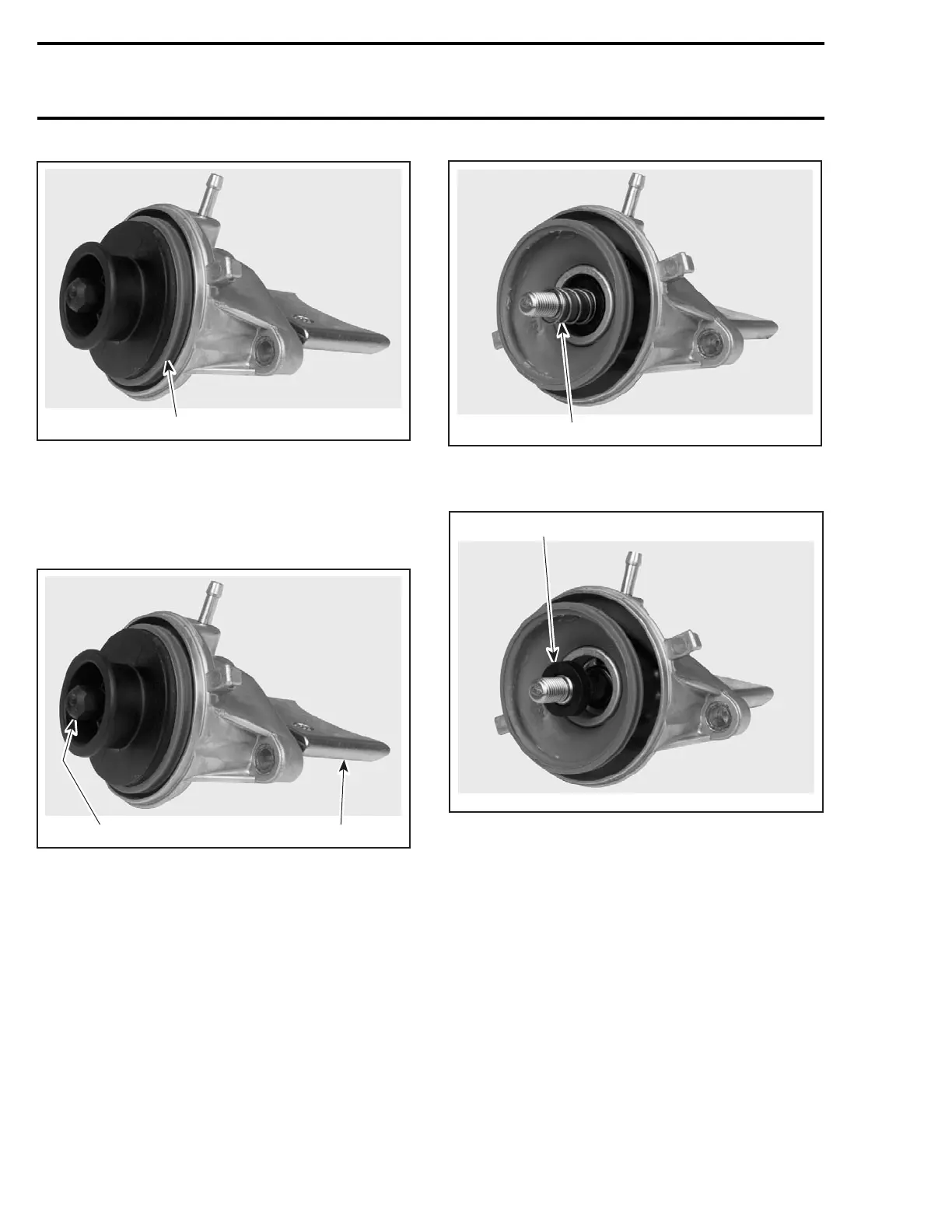

1. Bellows removed from piston
Unscrew valve piston no. 20 from sliding valve
no. 22.
NOTE: Hold the sliding valve to prevent it from
turning.
F06D0TB
2
1
1. Unscrew piston
2. Hold sliding valve
Remove compression spring no. 29.
A06D26A
1
1. Remove spring
Remove supporting ring no. 28.
F06D27A
1
1. Remove supporting ring
Remove O-ring no. 23.
