Section 04 ENGINE (2-STROKE)
Subsection 04 (TOP END)
F06D28A
1

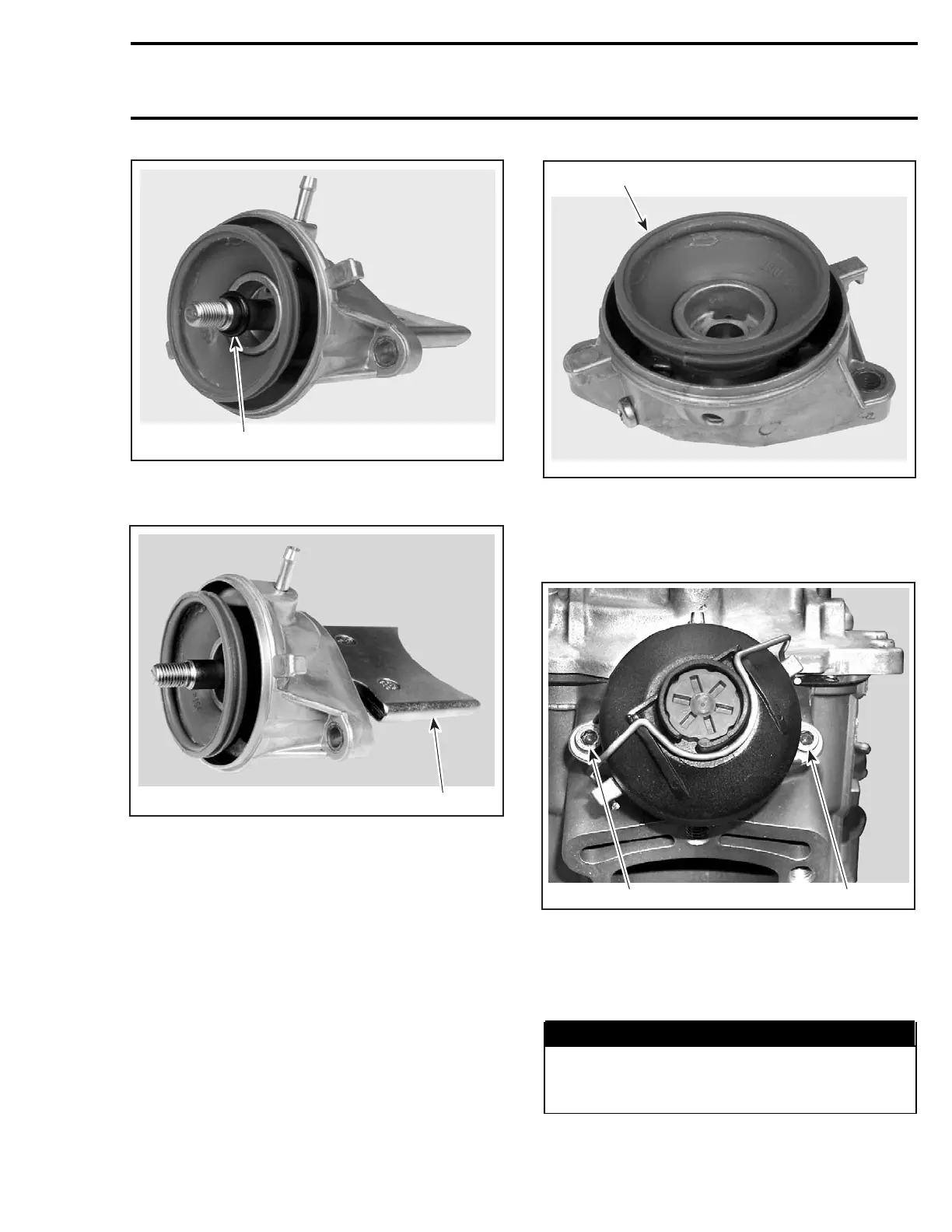

1. Remove O-ring
Remove sliding valve no. 22.
F06D0UA
1
1. Remove sliding valve
Remove bellows no. 21.
F06D0VA
1
1. Remove bellows
947 DI Engines
Loosen Allen screws no. 26 each side of RAVE
valve.
1
F12D0UA
1
1. Remove screws
Remove RAVE valve no. 15.
Remove the cover no. 18 of the valve by releasing
the spring no. 16.

WARNING
Firmly hold cover to valve base. The com-
pression spring inside the valve is applying
pressure against the cover.
