Section 04 ENGINE (2-STROKE)
Subsection 04 (TOP END)
Cylinder
717 and 787 RFI Engines

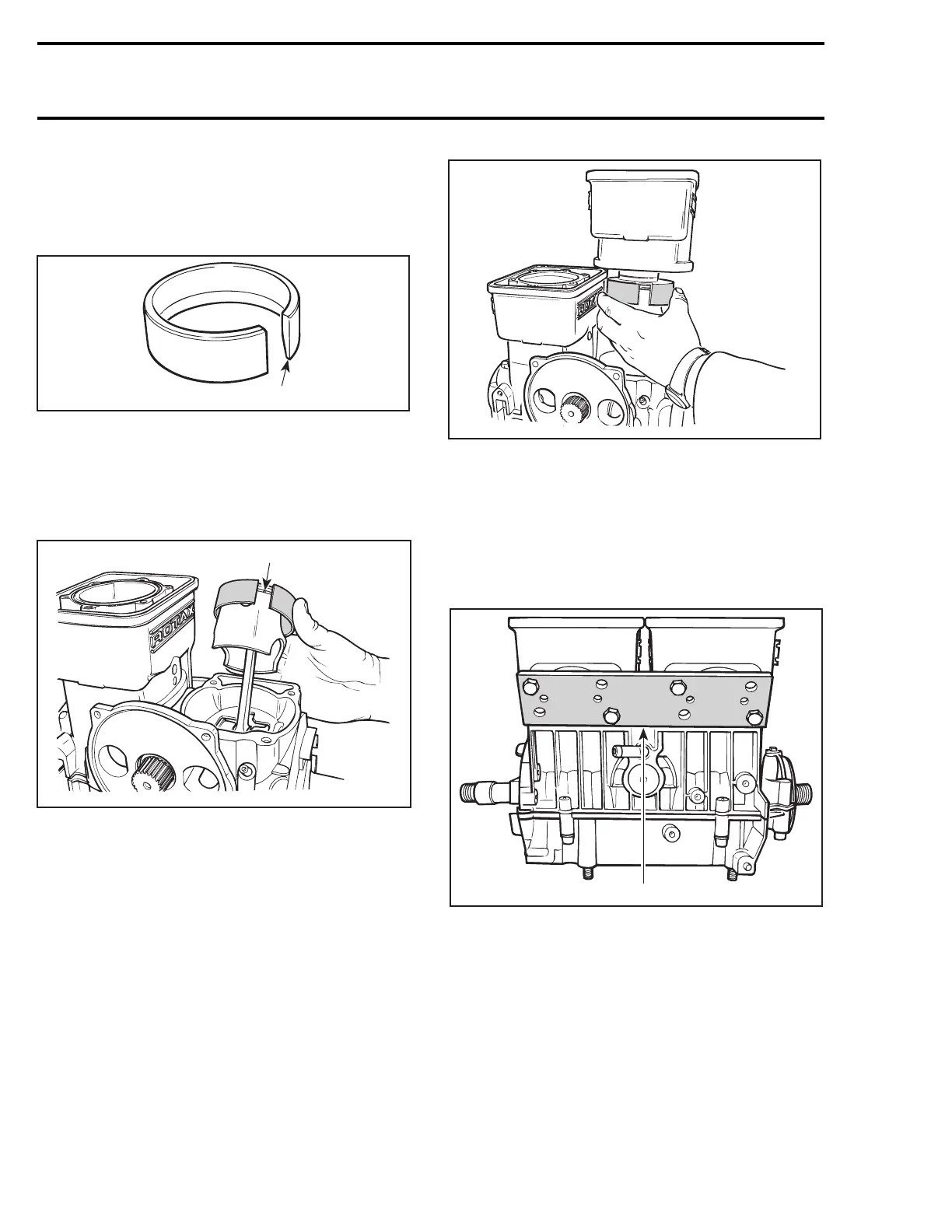

To easily slide cylinder no. 9 over piston, use pis-
ton ring compressor (P/N 290 876 979).
A01B1TA
1
1. Slide this edge
NOTE: Ring compressor will not fit on oversize
parts.
Makesuretoalignringendgapwithpistonlocat-
ing pin. Slide tool over rings.
F01D0ZA
1
1. Ringendgapalignedwithpistonlocatingpin
Slide cylinder over piston.
F01D10A
When reassembling cylinders to crankcase, it is
important to have them properly aligned so that
exhaust flanges properly match up with exhaust
manifold.
717 Engines
The aligning tool (P/N 420 876 904) or the exhaust
manifold can be used to align cylinders.
F01D44A
1
717 ENGINES
1. Exhaust flange aligning tool
