Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
F07K0TA
1
2

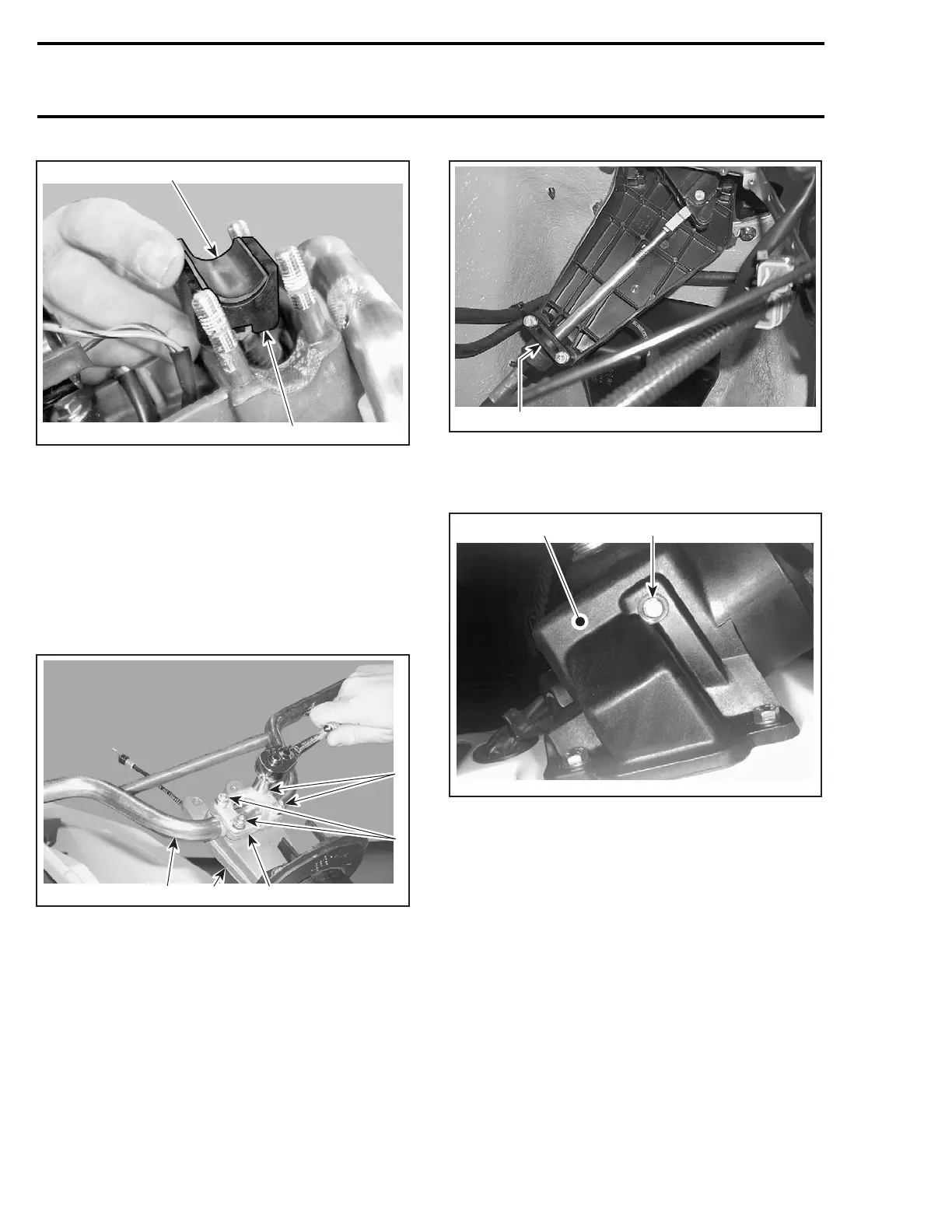

TYPICAL
1. Rubber pad
2. Stopper
All Models except GTX 4-TEC
Supercharged Limited
Remove steering cover and steering padding as
mentioned above.
Remove4nutsno. 38 to remove handle bar no. 22
from steering stem no. 46 andsteeringclamp
no. 44.
2
F18K0HA
34
1
1
1. Nuts
2. Handlebar
3. Steering stem
4. Steering clamp
Cable Support
RXP 4-TEC Models
Remove front vent tube.
All Models
Loosen bolts no. 9 and remove retaining block
no. 10.
1
F18K0IA
1. Retaining block
Loosen bolts no. 11 each side of steering support
no. 12.
F07K02A
1 2
1. Steering support
2. Bolt
