Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
1
2
F07K03A

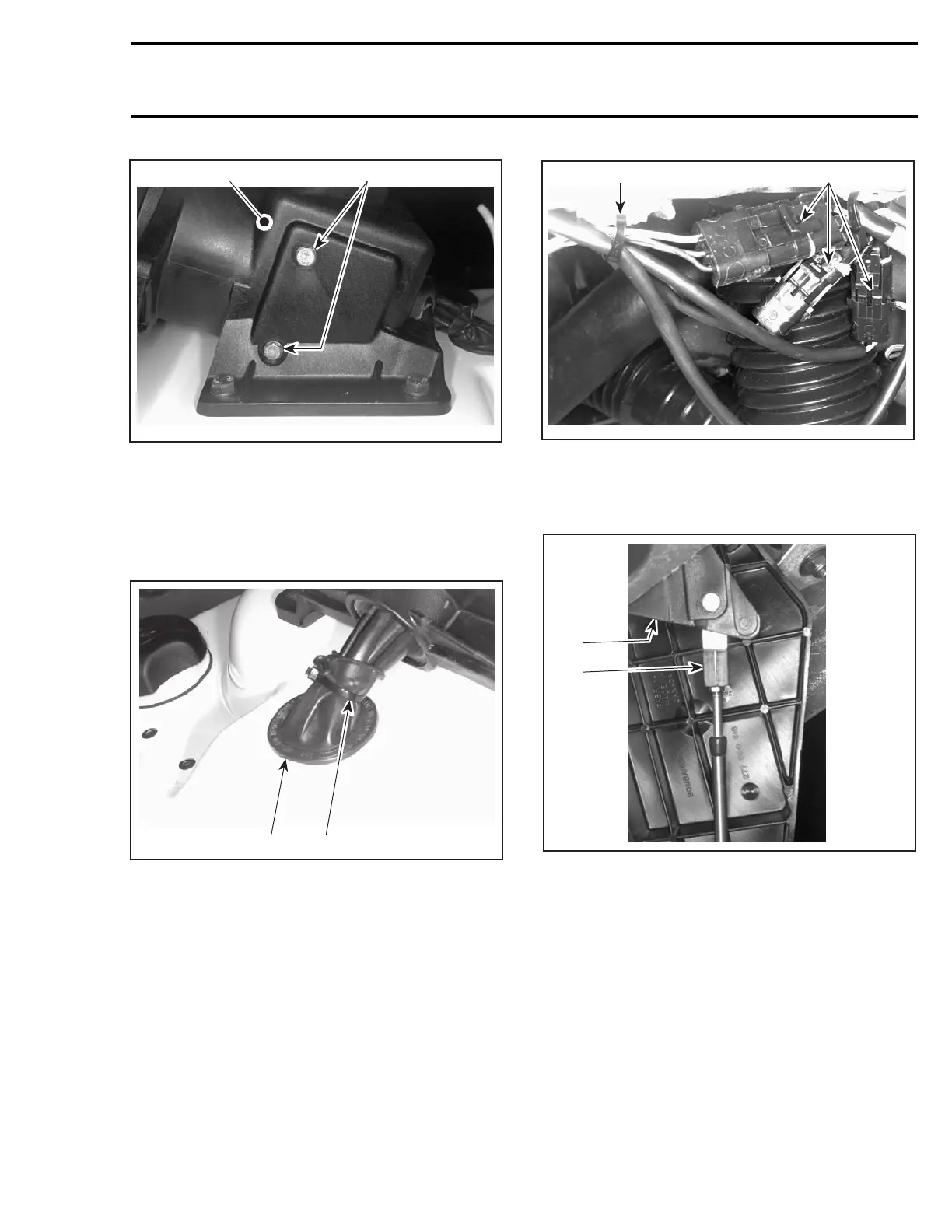

1. Steering support
2. Bolts
Remove cable support no. 8.
Steering Support
Cut locking tie securing wiring harness boot.
F07K04A
1 2
1. Boot
2. Locking tie
Carburetor-Equipped Models
Disconnect the throttle and choke cables from car-
buretor levers.
Fuel Injection Models
Disconnect the throttle cable from throttle body.
All Models
Disconnect the wiring harnesses leading out of
steering stem and cut locking tie.
F07K05A
21
1. Tie rap
2. Connectors
Disconnect the steering cable from the steering
stem arm no. 15.
F07K06A
1
2
1. Steering stem arm
2. Steering cable
Remove bolts no. 11 retaining cable support no. 8
to steering support no. 12.
Remove bolts no. 13 and lock nuts no. 14 from
steering retaining strip studs.
