InSpec Sampler Controller SECTION 18: SVG SCHEMATIC - WEB INTERFACE
83
SECTION 18: SVG SCHEMATIC - WEB INTERFACE

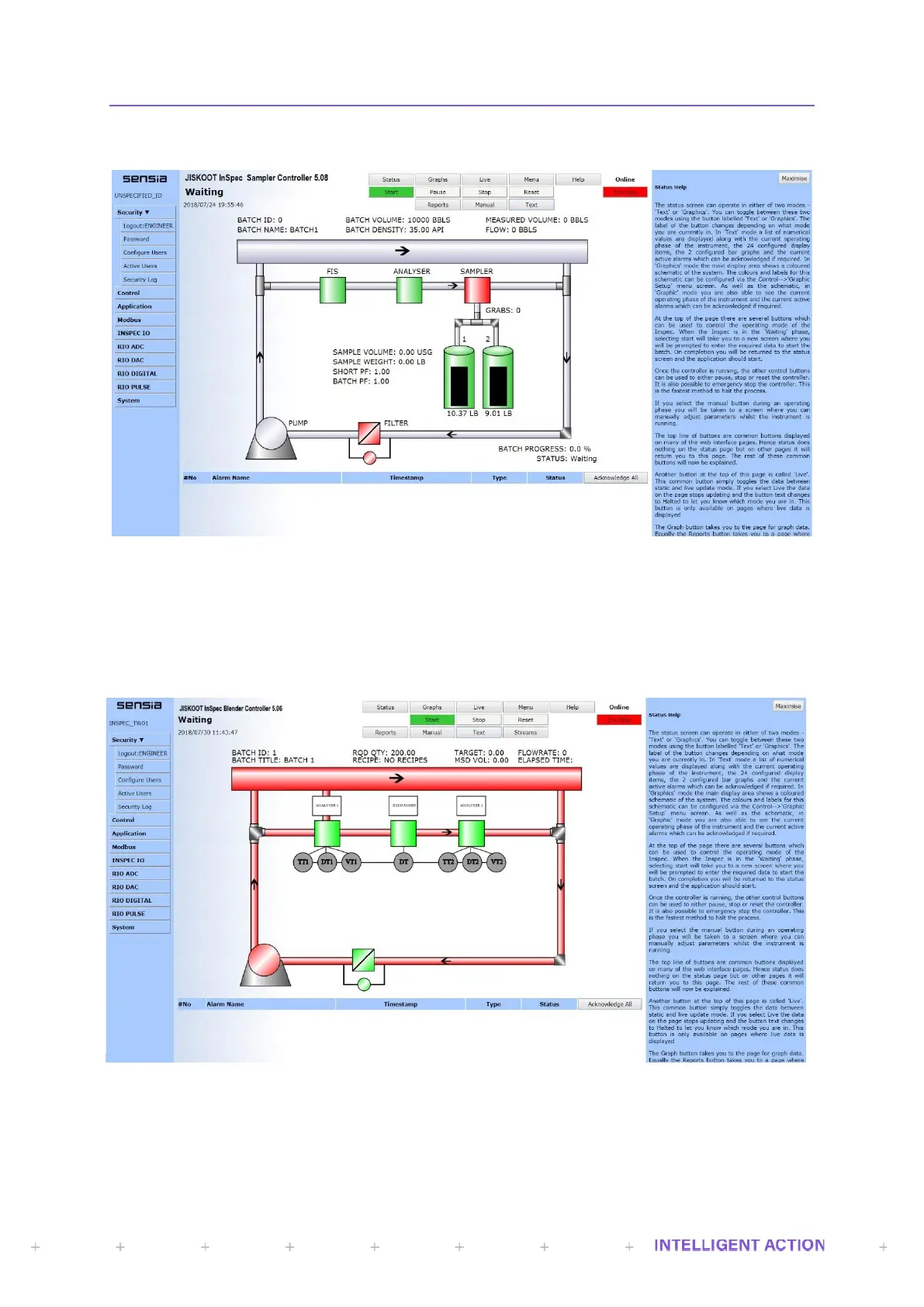

Figure 32 – The Default Sampler Graphics Page
On the status page there is a button labelled graphics. When you click this the graphical schematic will
appear. This is designed to show a layout of the system (Sampler or Blender). Note that in the case of the
sampler there are currently 4 different types of system available via an internal register. The setting of the
C_SVG_SAMPLER_MODE register determines which of the following systems is drawn: Cojetix, Fastloop, Inline
with Jetmix or inline without Jetmix.
Figure 33 – The Default Blender Overview Graphics Page
