1.3 BASIC OPERATION OF THE INSTRUMENT (START, STOP,
RESET, MANUAL)
The Start, Stop and Reset buttons act in their primary function when the menu is closed and
showing the front display. This allows a batch or blend to be started, stopped or reset quickly from the
front panel. Within the menu they take on their secondary functions of Mode, Cancel and Delete – where
appropriate. The self-explanatory functions of the start, stop and reset buttons are duplicated within the
menu. Selecting the very first ‘Control’ item of the menu (as shown above) will result in the user being
taken down into the control menu where, amongst other commands, the ‘Start’, Stop’ and ‘Reset’
commands are duplicated.

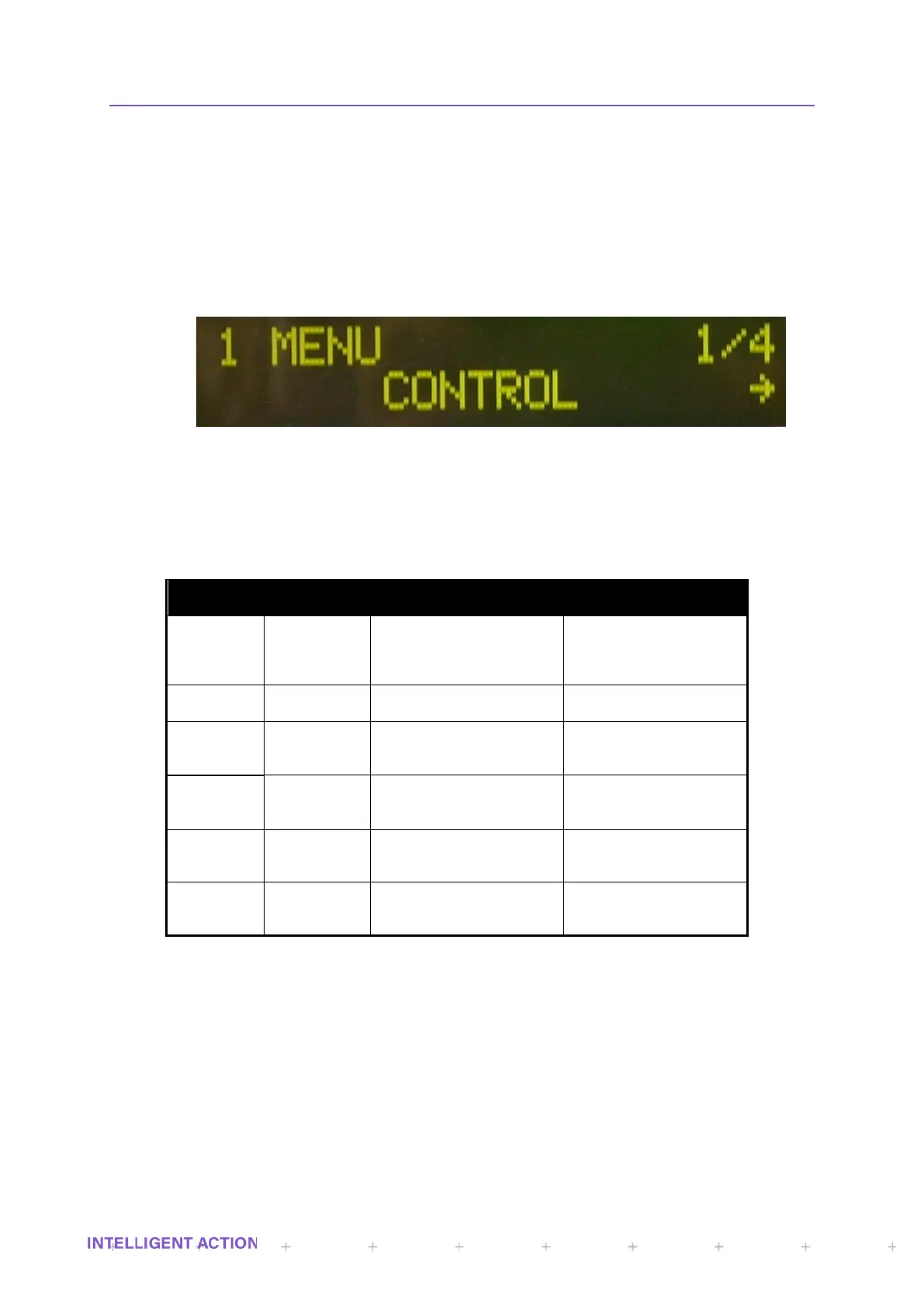

Figure 2 - Control Menu
Within the menu, the operator can also select the ‘Manual’ item to change specific batch
parameters. These available parameters depend on the given application.
The following table briefly summarises the five primary / secondary key buttons
PRIMARY
KEY NAME
SECONDARY
KEY NAME
FUNCTION IN MAIN
DISPLAY
FUNCTION IN MENU
START
MODE
To start the application
Bring up register options
and toggle between
integer and hex entry
modes.
STOP
CANCEL
To stop the application
Cancel out of a menu or
entry mode.
RESET
DELETE
To reset the application
Delete entered
alphanumeric characters
or cancel out of a decision.
ENTER
MENU
Enter the menu from the
front display
Enter menu / select menu
item / confirm values /
confirm control decisions
DOWN
CURSOR
ACK
Acknowledge all active /
unacknowledged alarms
Go down / enter menu
items / scroll down through
alphanumeric characters.
UP
CURSOR
Toggle between scrolling
and non-scrolling on main
display and alarms
Go up / exit menu items /
scroll up through
alphanumeric characters.
