Sensia JISKOOT InSpec Sampler User Manual

InSpec Sampler Controller SECTION 19: REMOTE IO MODULE
89

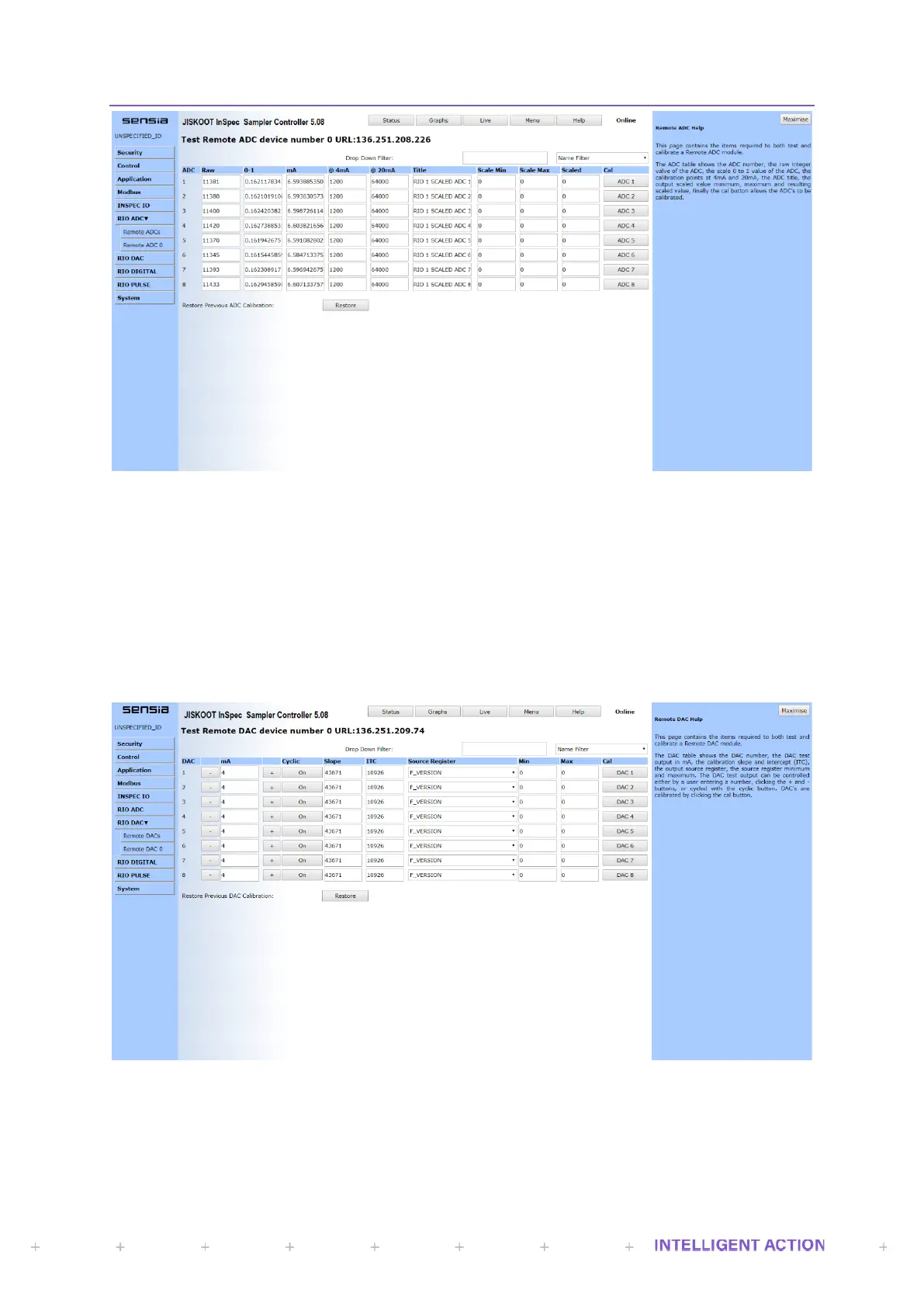

Figure 41 – Remote ADC 0, Option in Menu Sidebar for Setup and Test
19.4 REMOTE DAC DEVICE
This page contains the items required to all configure, test and calibrate a Remote DAC module.
The DAC table shows the DAC number, the DAC test output in mA, the calibration slope and intercept
(ITC), the output source register, the source register minimum and maximum. The DAC test output can be
controlled either by a user entering a number, clicking the + and - buttons, or cycled with the cyclic button. DAC's
are calibrated by clicking the cal button.
Figure 42 – Remote DAC 0, Option in Menu Sidebar for Setup and Test
