Sensia JISKOOT InSpec Sampler User Manual

InSpec Sampler Controller SECTION 24: FIELD CONNECTIONS
99
24.3.2 RS422 & RS485 TERMINATION
For correct operation of the multi-drop bus, the communication lines must be held in the default
fault tolerant position. For RS422 this is done at each receiver and Rx+ is pulled low (0V) and Rx- is
pulled high (5V).For RS485 this is done at each transceiver and Tx/Rx+ is pulled low (0V) and Tx/Rx- is
pulled high (5V). See Section 3.13 for information on configuring this option.

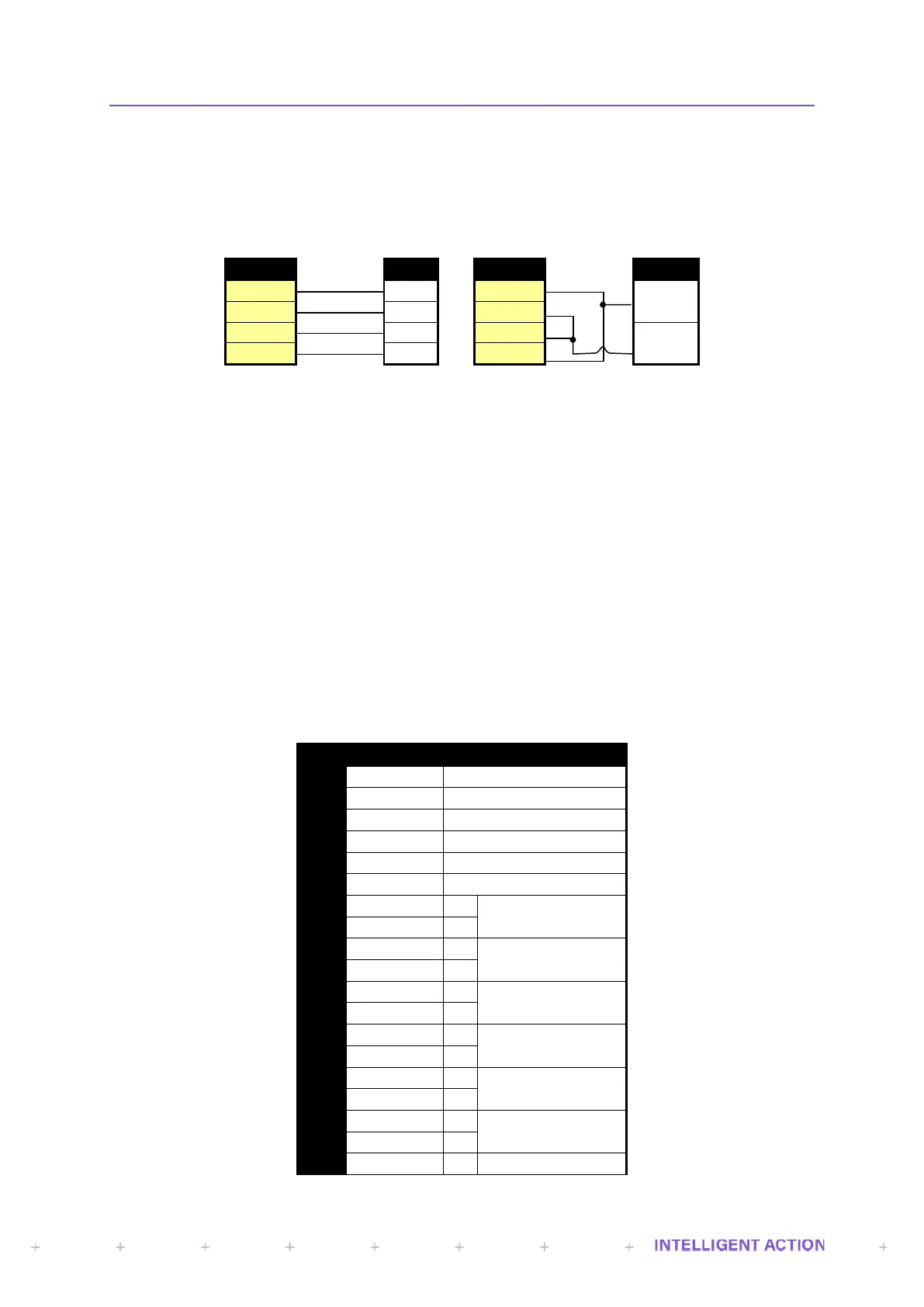

24.3.3 RS422 & RS485 CONNECTIONS
InSpec+
Other
Rx +
Tx +
Rx -
Tx -
Tx -
Rx -
Tx +
Rx +
Figure 50 - RS422 (4-Wire)
InSpec+
Other
Rx +
Rx/Tx +
Rx -
Tx -
Rx/Tx -
Tx +
Figure 51 - RS485 (2-Wire)
24.4 PLUG NO. 6
IMPORTANT: Cables terminating into Pulse Inputs or Analogue Inputs/Outputs in this terminal block must be
screened and kept separate from the digital I/O.
This terminal block is carries connections for: -
• 1 off 24V DC Supply;
• 4 off Digital I/O points;
• 2 off Pulse Inputs (Voltage or Current Pulse);
• 2 off Analogue Outputs;
• 3 off Analogue Inputs
Its terminal assignments are:e a
Plug No.6
Terminal
Duty
1
0V (+24V DC GND)
2
+24V DC Supply
3
Digital I/O Point No.8
4
Digital I/O Point No.7
5
Digital I/O Point No.6
6
Digital I/O Point No.5
7
-
Pulse Input
No.2
8
+
9
-
Pulse Input
No.1
10
+
11
-
Analogue Output
No.2
12
+
13
-
Analogue Output
No.1
14
+
15
-
Analogue Input No.3
16
+
17
-
Analogue Input No.2
18
+
19
-
Analogue Input No.1
