Appendix B: Installation Sequence (Safe Area Unit)
2.5mm Hexagon Wrench or Allen Key
4mm Hexagon Wrench or Allen Key
The controller is not intended to be used as a standalone piece of equipment and must be built-in to
the end product and mounted in the vertical plane to maintain compliance with international safety
standards.

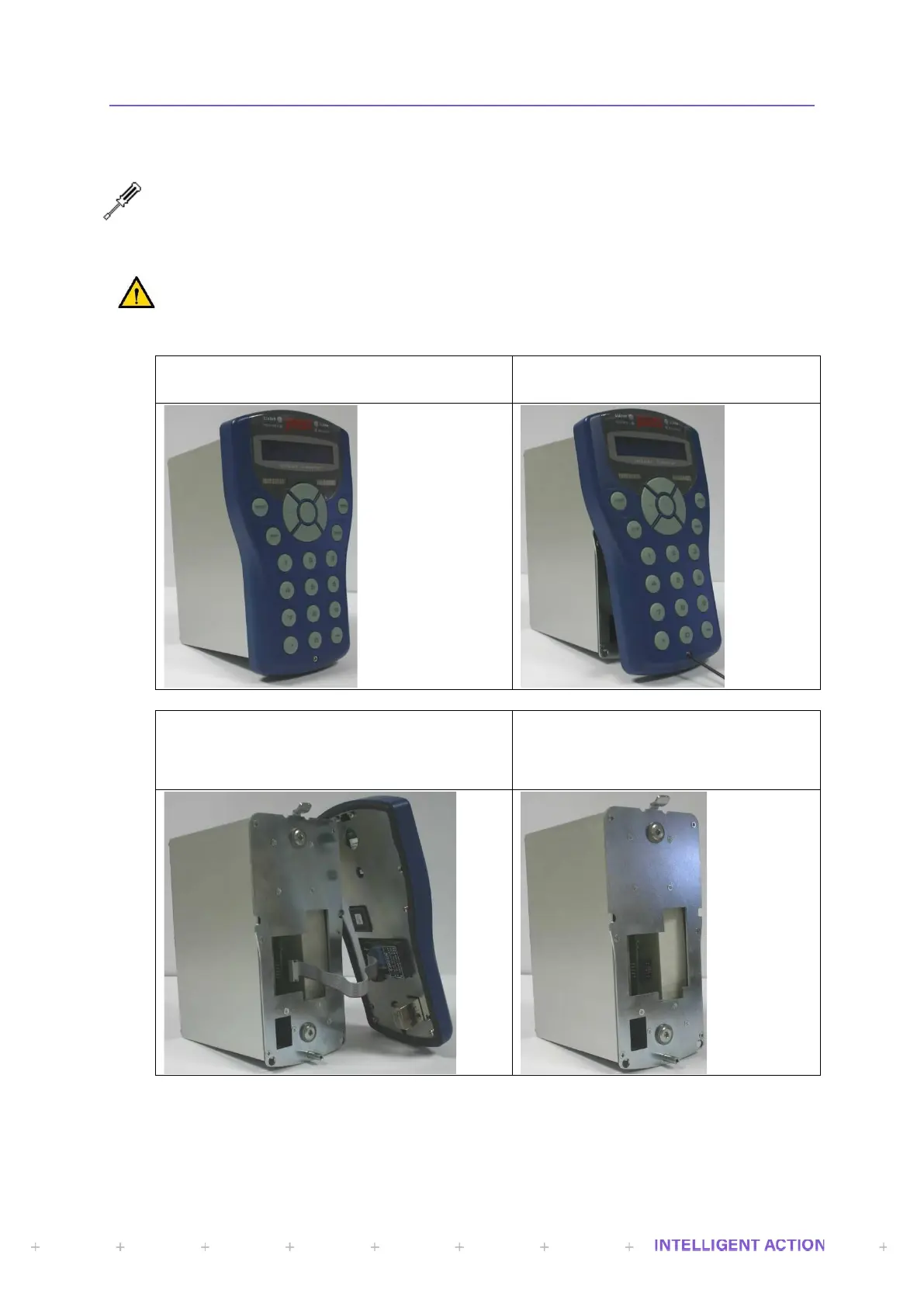

a) Take one Safe Area Instrument
b) Remove the front panel by undoing the
fixing screw using a 2.5mm Allen Key…
c) …and then lift the front panel off the hook at the top.
d) Carefully disconnect the ribbon cable from
the main body of the instrument. Carefully
store the front panel so that it is not
damaged.
To Next Page
