Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
81
6
Configuring the measuring sections
Startup

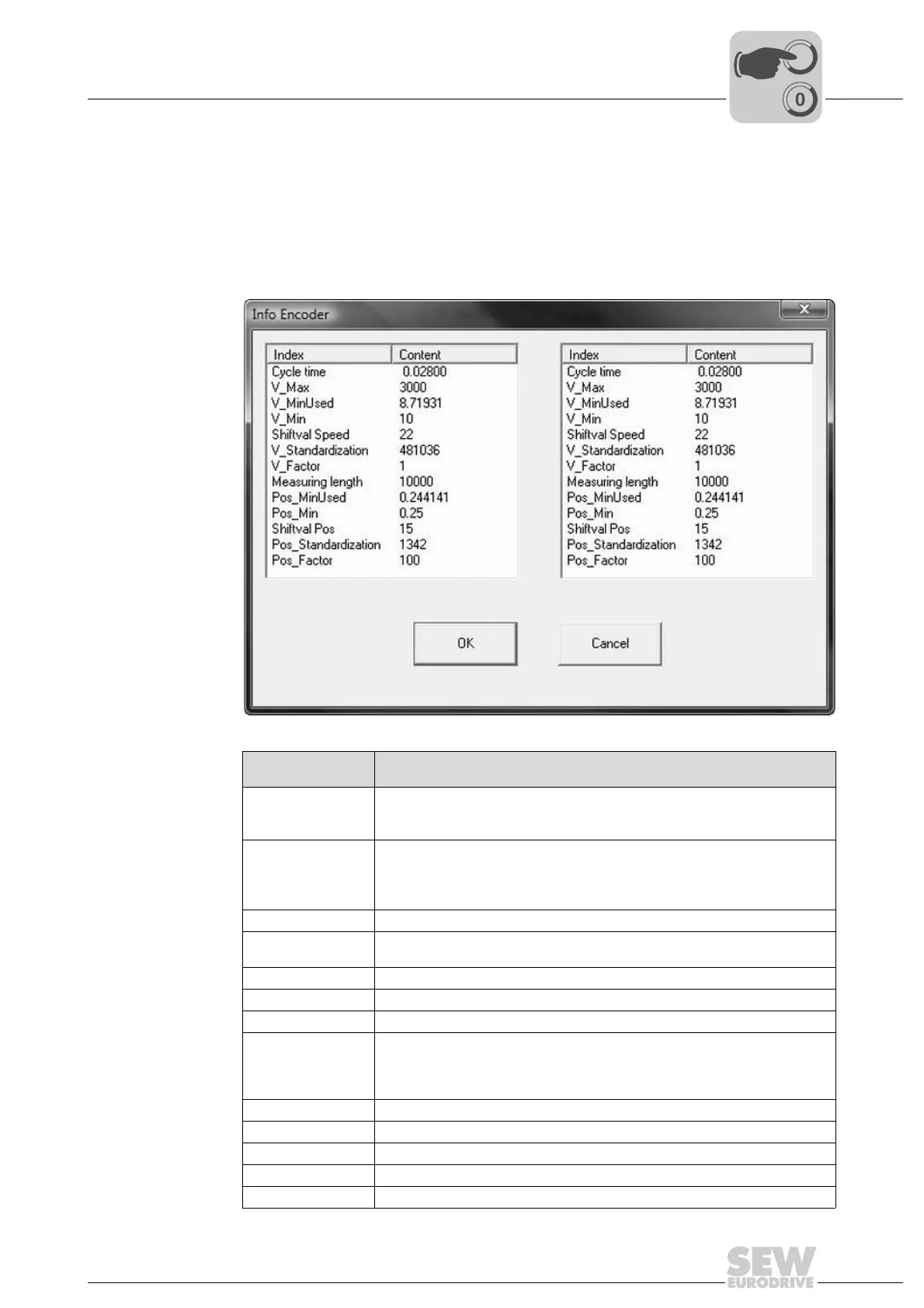

• Encoder information
To have selection data and result data of the encoder currently used displayed, press
the [Info encoder] button. Selection and result data are not applied until you have
confirmed the set parameters with [OK]. The displayed values (see below figure) are
used by the technical support to configure the encoder. They are also used for the
scaling calculation in the DCS..B option.
2061256459
Encoder
information
Meaning/setting
Cycle time Specifies the cycle time of the DCS..B option.
• DCS31B = 0.025 s
• DCS21B = 0.028 s
V_Max Maximum speed value that can be entered during the parameterization of the
safety functions.
V_Max is defined as follows:
"Encoder screen maximum velocity" × factor 1.5
V_MinUsed Minimum speed for internal scaling calculation.
V_Min Minimum speed value that can be entered during the parameterization of the
safety functions.
Shiftval_Speed Internal operand to scale the speed. Integer exponent to base 2.
V_Standardization Scaling value for the velocity (internal calculation data)
V_Factor Factor for calculating the velocity (scaling)
Measuring length Measuring length to determine the position from the encoder screen. If no
measuring length is activated, the following value is entered by default:
• Linear = 10 000 mm (50 m)
• Rotary = 500 revolutions
Pos_MinUsed Minimum position for internal scaling calculation.
Pos_Min Minimum position that can be entered for parameterizing the monitoring dialogs.
Shiftval_Pos Internal operand to scale the position. Integer exponent to base 2.
Pos_Standardization Scaling value for the position (internal calculation data).
Pos_Factor Factor for position calculation (scaling).
