Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
6

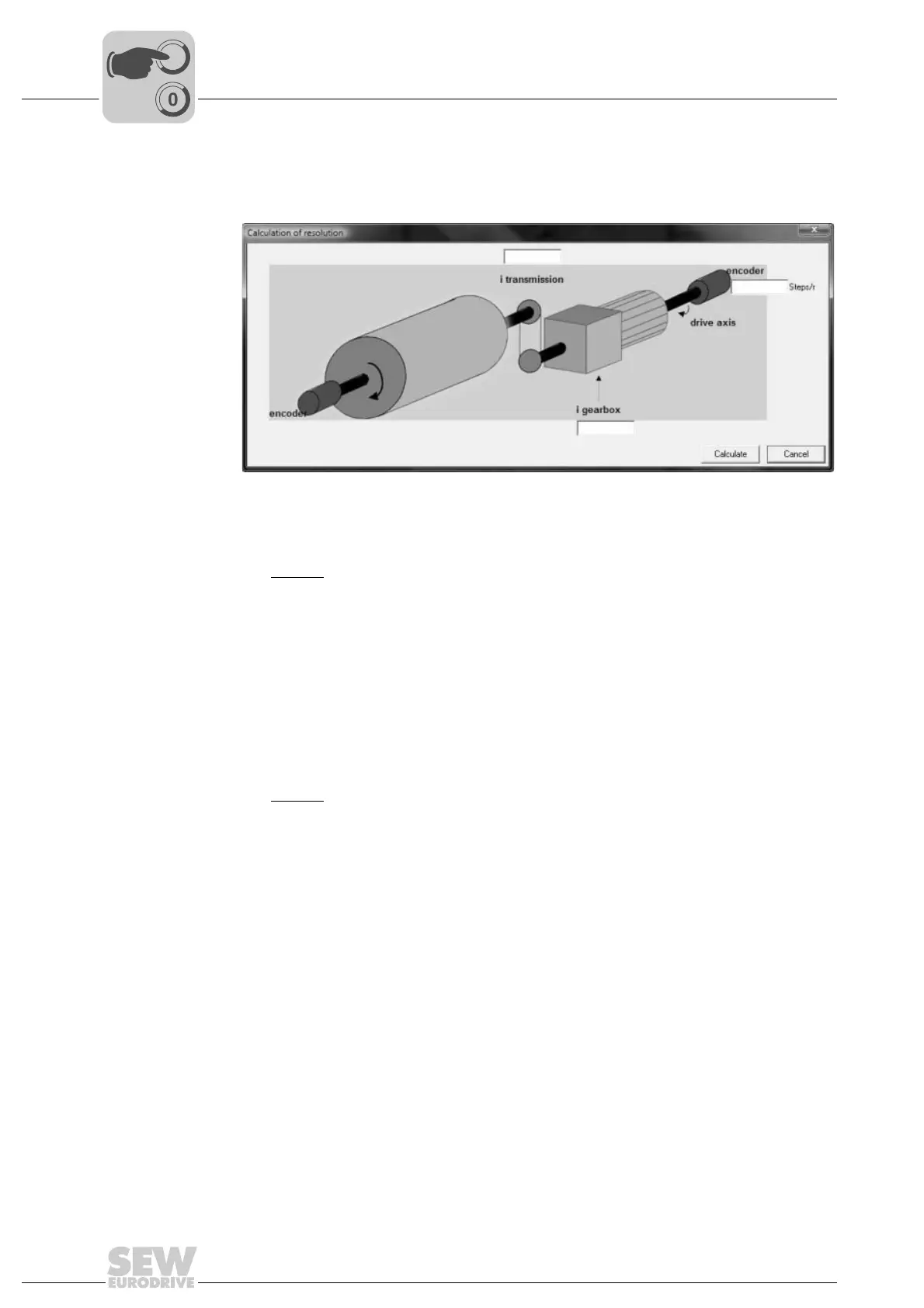

Configuring the measuring sections
Startup
• Rotary system:
Calculating the speed:
Calculating the acceleration:
1981823755
2146446603
v
M
Motor speed [1/min] (rpm)
i
G
Gear unit ratio
i
VG
Gear ratio of the additional gear
2146488075
a
M
Motor acceleration
i
G
Gear unit ratio
i
VG
Gear ratio of the additional gear
v
v
ii
M
GVG
=
×
a
a
ii
M
GVG
=
×
00
I
