If
/001
(Pattern number selection) is selected only in [Event input DI2 allocation],
(e.g.) To select Pattern 2, close (ON)
8
and
12
.
(Table 9.2.1-2)
Pattern number
Terminal number
* 2
8
Event input DI2
OFF (Open) ON (Closed)
* This number will be selected by keypad.
If
/001
(Pattern number selection) is selected in [Event input DI1 allocation] and [Event
input DI2 allocation]:
(e.g.) To select Pattern 4, close (ON)
9
–
12
, and
8
–
12
(Table 9.2.1-3)
Pattern number
Terminal number
* 2 3 4
9
Event input DI1
OFF (Open) ON (Closed) OFF (Open) ON (Closed)
8
Event input DI2
OFF (Open) OFF (Open) ON (Closed) ON (Closed)
* This number will be selected by keypad.
(4) Executing Fixed Value Control
There are 2 ways to execute Fixed value control:
Using the RUN key, or using Event input
• Using the
RUN key.
Press the RUN key in Program control STOP (in Standby).
The step, for which step time is set to
----
at (2), is held, and Fixed value control is performed
using the step SV.
The RUN indicator flashes during Fixed value control.
• Using Event input
If /003 (Program control RUN/STOP) is selected in [Event input DI allocation],
Program control RUN/STOP can be switched, depending on ON (Closed) or OFF (Open) status
between Event input DI1/DI2 terminal and SG terminal.
If /003 (Program control RUN/STOP) is selected in [Event input DI allocation],
close (ON)
9
and
12
.
The step, for which step time is set to
----
at (2), is held, and Fixed value control is performed
using the step SV.
The RUN indicator flashes during Fixed value control.

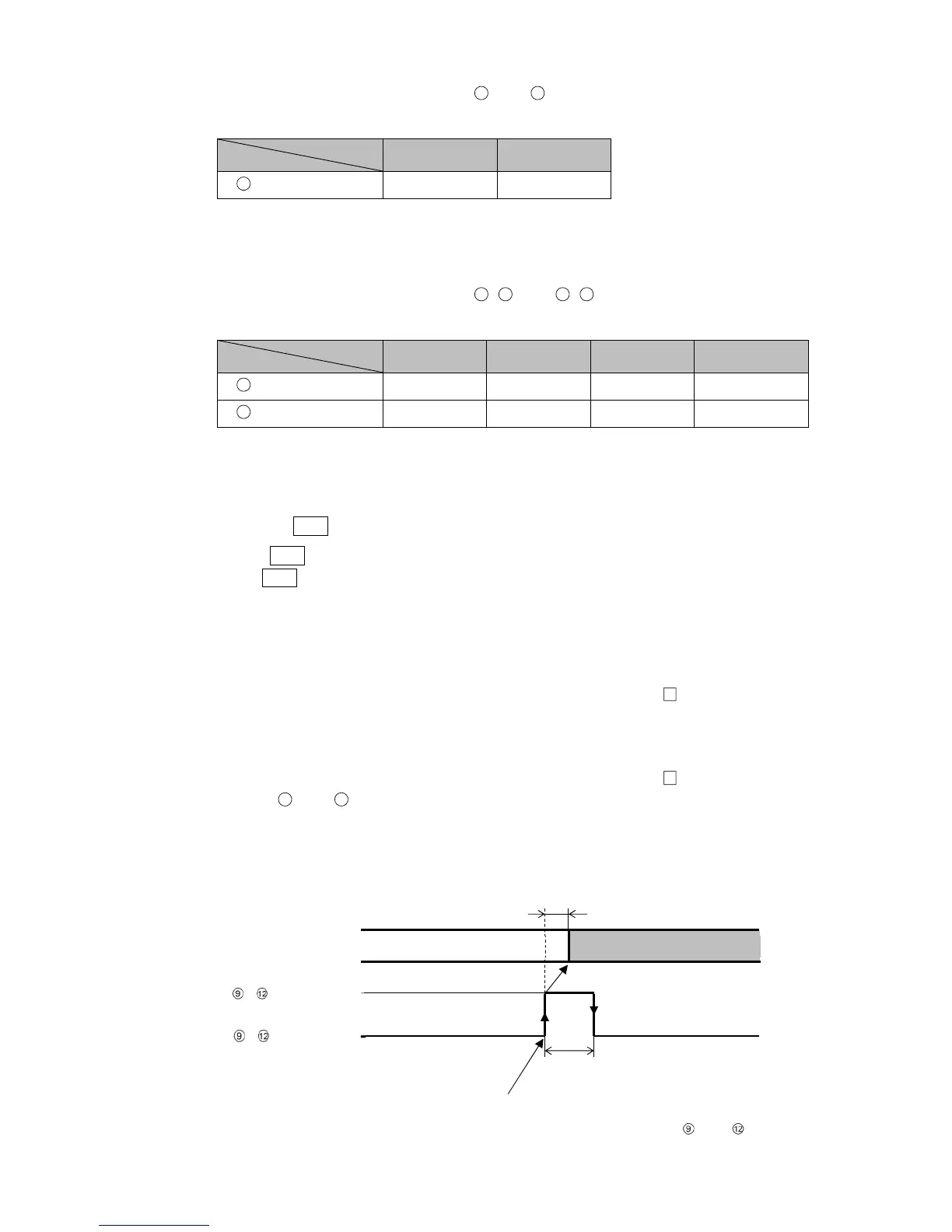

(Fig. 9.2.1-1)
Program control STOP (in Standby) Fixed value control
With 0.1 sec
0.1 sec min.
,
ON (Closed)
,
OFF (Open)
Controller action
Fixed value control is performed by detecting rising signal edge
action from OFF (Open) to ON (Closed) of terminals and
.
