9.1.2 Stopping Program Control
There are 2 methods for stopping program control:
Using the STOP key or using Event input
• Using the
STOP
key
Press the STOP key for approximately 1 second during Program control RUN.
Program control will stop, and revert to program control STOP (in Standby) status.
• Using Event input
If
/003
(Program control RUN/STOP) is selected in [Event input DI allocation],
Program control RUN/STOP can be switched, depending on ON (Closed) or OFF (Open) status
between Event input DI terminal and SG terminal.
If
/003
(Program control RUN/STOP) is selected in [Event input DI1 allocation],
open (OFF)
9
and
12
.
Program control will stop, and the unit will revert to Program control STOP (in Standby) status.

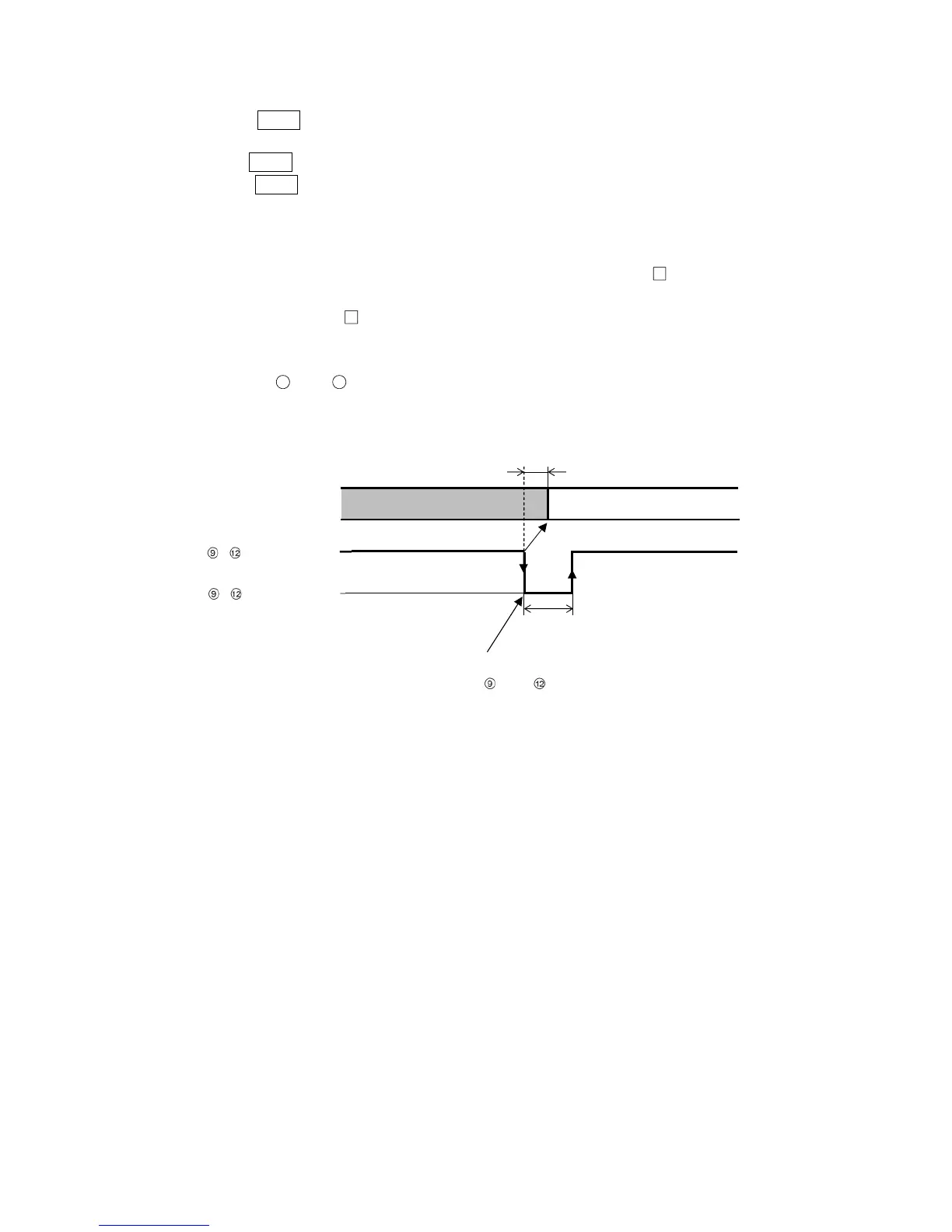

(Fig. 9.1.2-1)
Program control RUN
Program control STOP (in Standby)
Within 0.1 sec
0.1 sec min.
, ON (Closed)
, OFF (Open)
Controller action
Program control stops by detecting falling signal edge action from
ON to OFF of terminals and .
