Shinko PCB1 User Manual

- 12 -
□92
＋0.8
0
130
n×96-3
＋0.5
0
92
＋0.8
0
Horizontal close mounting
n: Number of units mounted

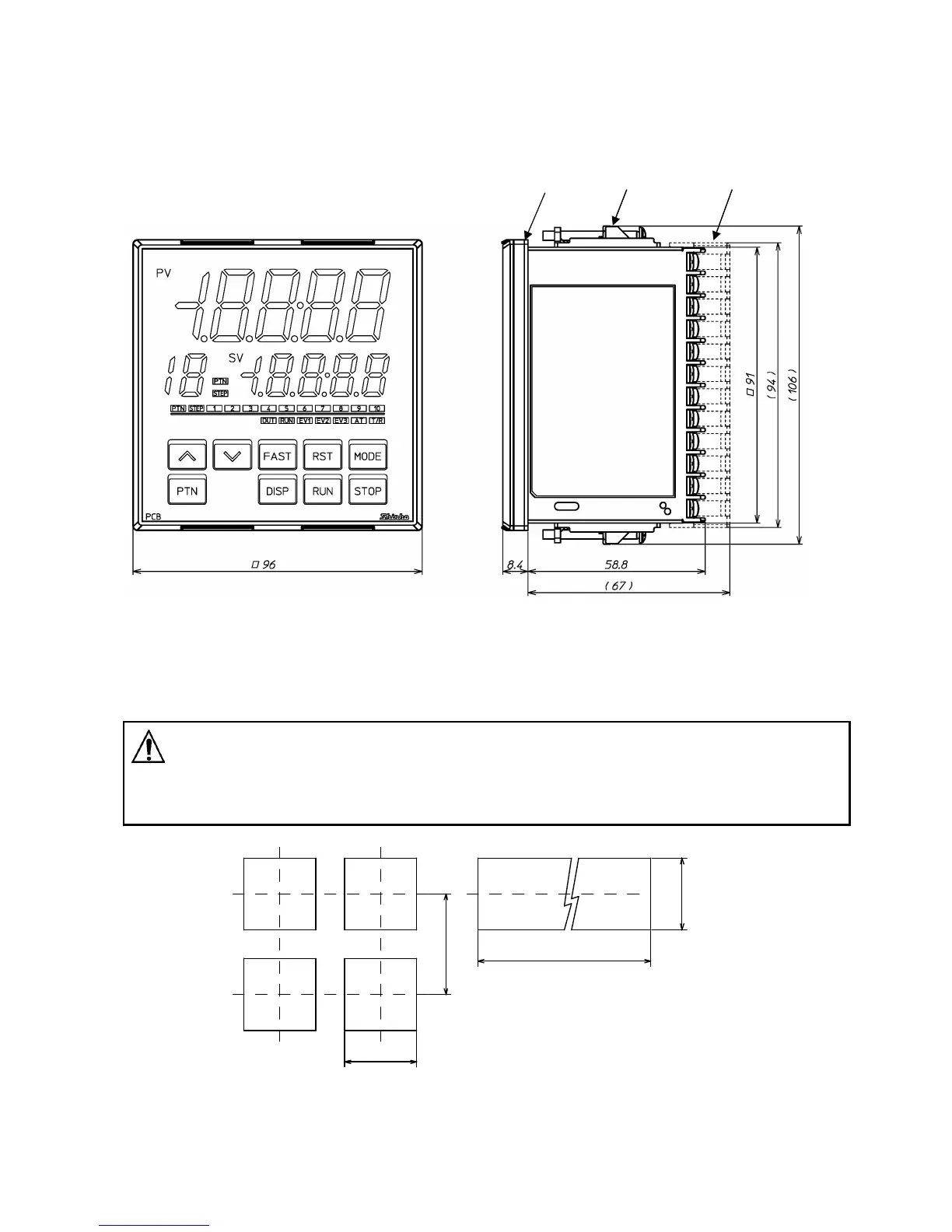

3. Mounting to the Control Panel
3.1 External Dimensions (Scale: mm)
( ): Size when mounting brackets or terminal cover (sold separately) are mounted.
(Fig. 3.1-1)
3.2 Panel Cutout (Scale: mm)
Caution
If horizontal close mounting is used for the controller, IP66 specification (Drip-proof/Dust-proof)
may be compromised, and all warranties will be invalidated.
(Fig. 3.2-1)
Gasket
Mounting
bracket
Terminal cover
(sold separately)
