- 21 -

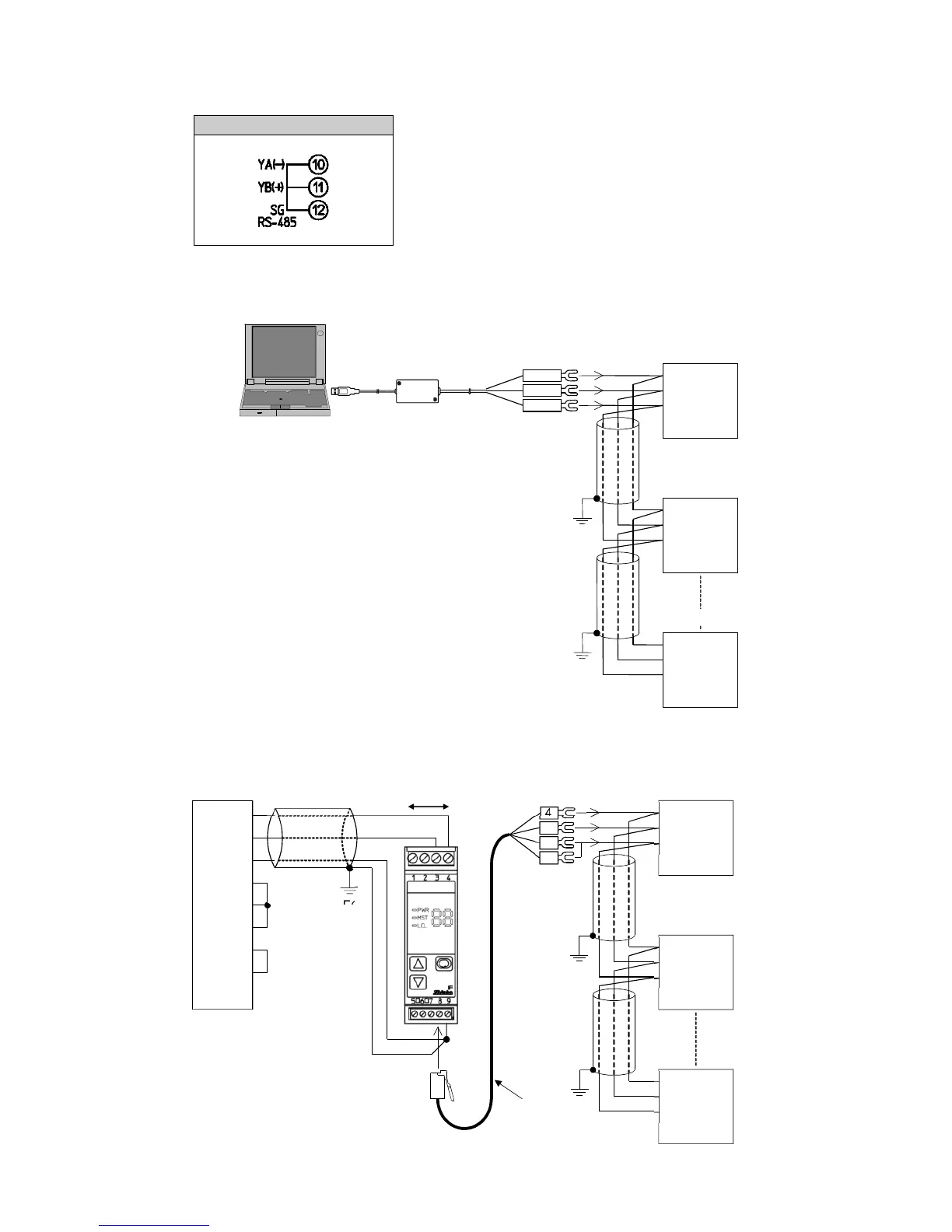

4.4.6 Serial Communication
If the C5W or C5 option is ordered, Serial communication is available.
Serial Communication
(1) Serial Communication
When using USB communication cable CMC-001-1 (sold separately)
(Fig. 4.4.6-1)
When using communication converter IF-400 (sold separately)
(Fig. 4.4.6-2)
FG
FG
USB communication cable
CMC-001-1 (sold separately)
Host computer
USB port
YA(-)
YB(+)
SG
YA(-)
YB(+)
SG
YA(-)
YB(+)
SG
Shield wire
Shield wire
YA(-)
YB(+)
COM
PCB1
RXD
TXD
DCD
DTR
DSR
RTS
CTS
2
3
5
1
4
6
7
8
GND
RI
9
CDM
FG
FG
FG
YA(-)
YB(+)
SG
YA(-)
YB(+)
SG
Shield
wire
4
3
1
6
Host computer
D-sub 9-pin connector
YA(-)
YB(+)
SG
Shield wire
Communication converter IF-400 (sold separately)
RS-232C RS-485
PCA1
Shield wire
