Ethernet communication
 Select “Custom IP address configuration”.
 Click “Add”.
 Enter the IP address of the device or the IP address range when several devices are
used and confirm with “OK”.
 Select TCP port 2111 in the “TCP port” directory.
 Define the protocol settings in the “Protocol” directory according to → pg. 159, Fig. 91.

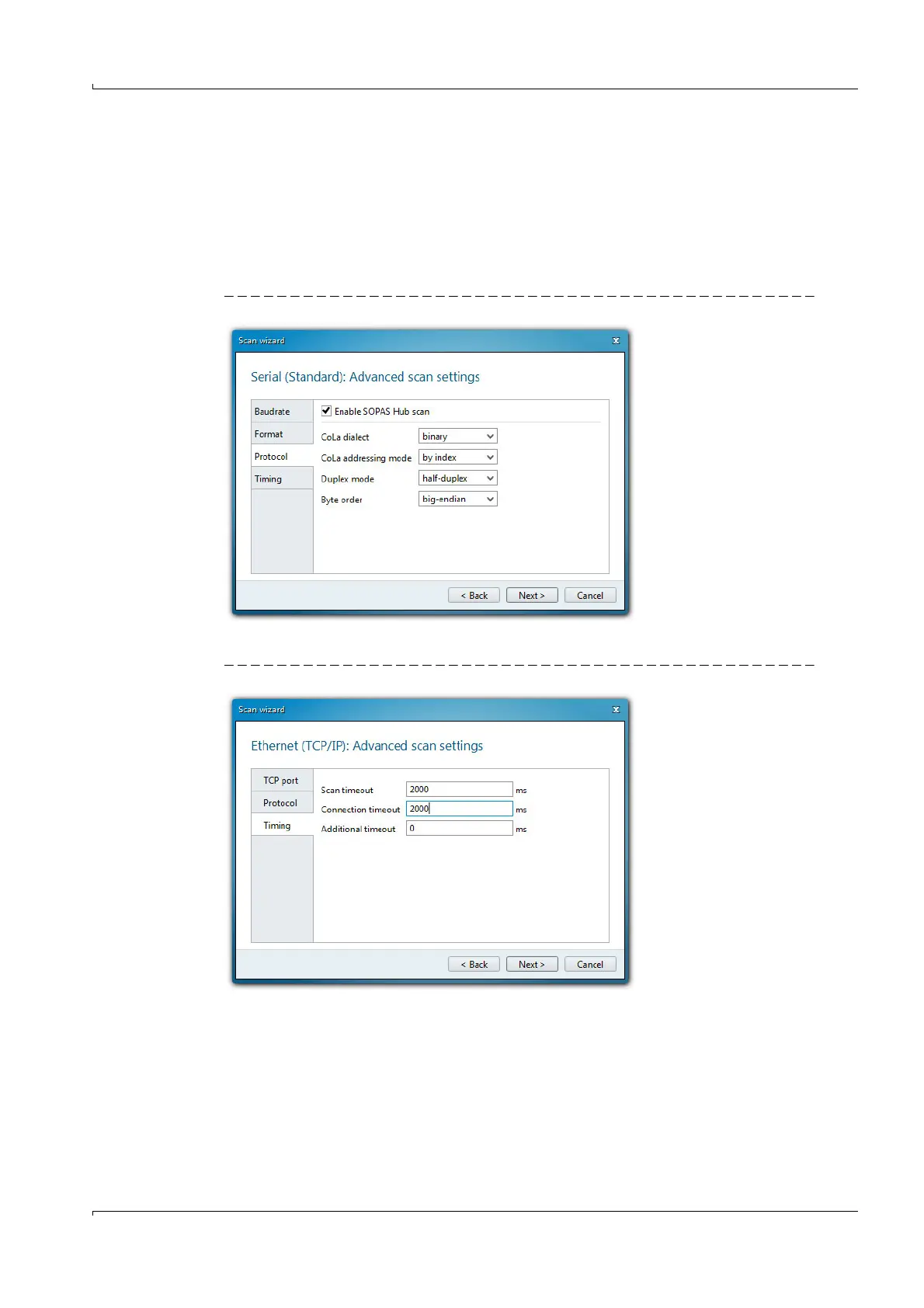

Fig. 91 Defining the protocol settings
 Define the timeout settings in the “Timing” directory according to → Fig. 92.
Fig. 92 Defining the timeout settings
