4.2.3.1 Configuration of SOPAS ET for 10" pipelines
10" pipelines require the following configuration of the linearization parameters. Proceed
as follows:
 Open the "Measuring Point Parameter" page and enter:
– Nominal diameter "DN250 / 10 inch"
– Sensor type "Cross duct"

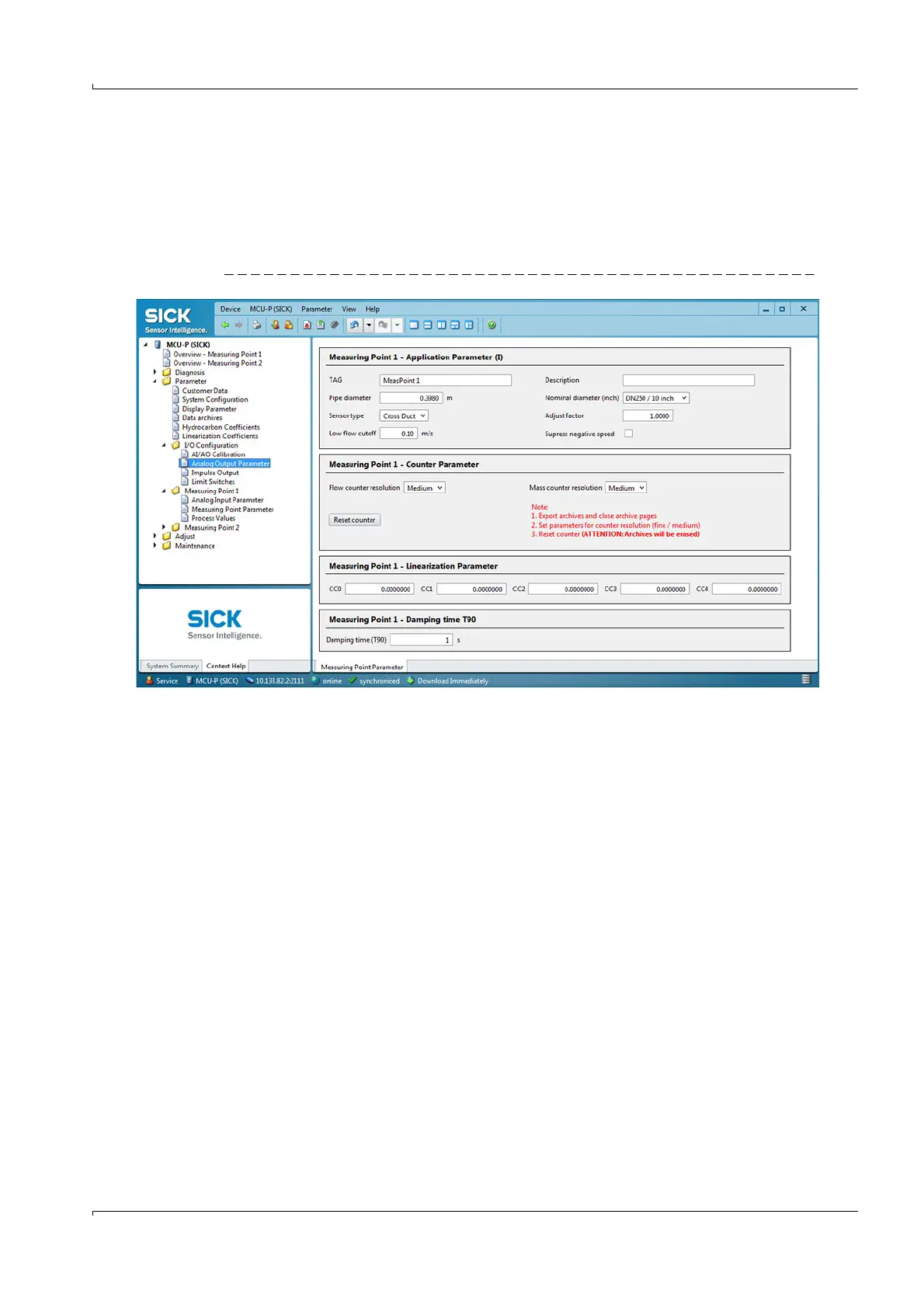

Fig. 105 Setting the measuring point parameter
The MCUP will activate the linearization parameter for this selection. SOPAS ET must then
synchronize the parameter from the MCUP. To initiate this, perform the following steps:
 Select menu "Communication"/"Offline"
 Open the "Measuring Point Parameter" again, and then change back to "online". SOPAS
ET will then synchronize the MCUP.
To complete the configuration:
 Open the "Linearization parameter" page.
 Change parameter cc0 to -223.085 and parameter cc1 to 168.508.
 Press Enter.
