Sender/receiver units FLSE100-EXS according to ATEX for Ex Zone 1/zone 2, IECEx zone
1 and according to CSA for Cl I, Div.1/Div.2, non-retractable
1
,
2

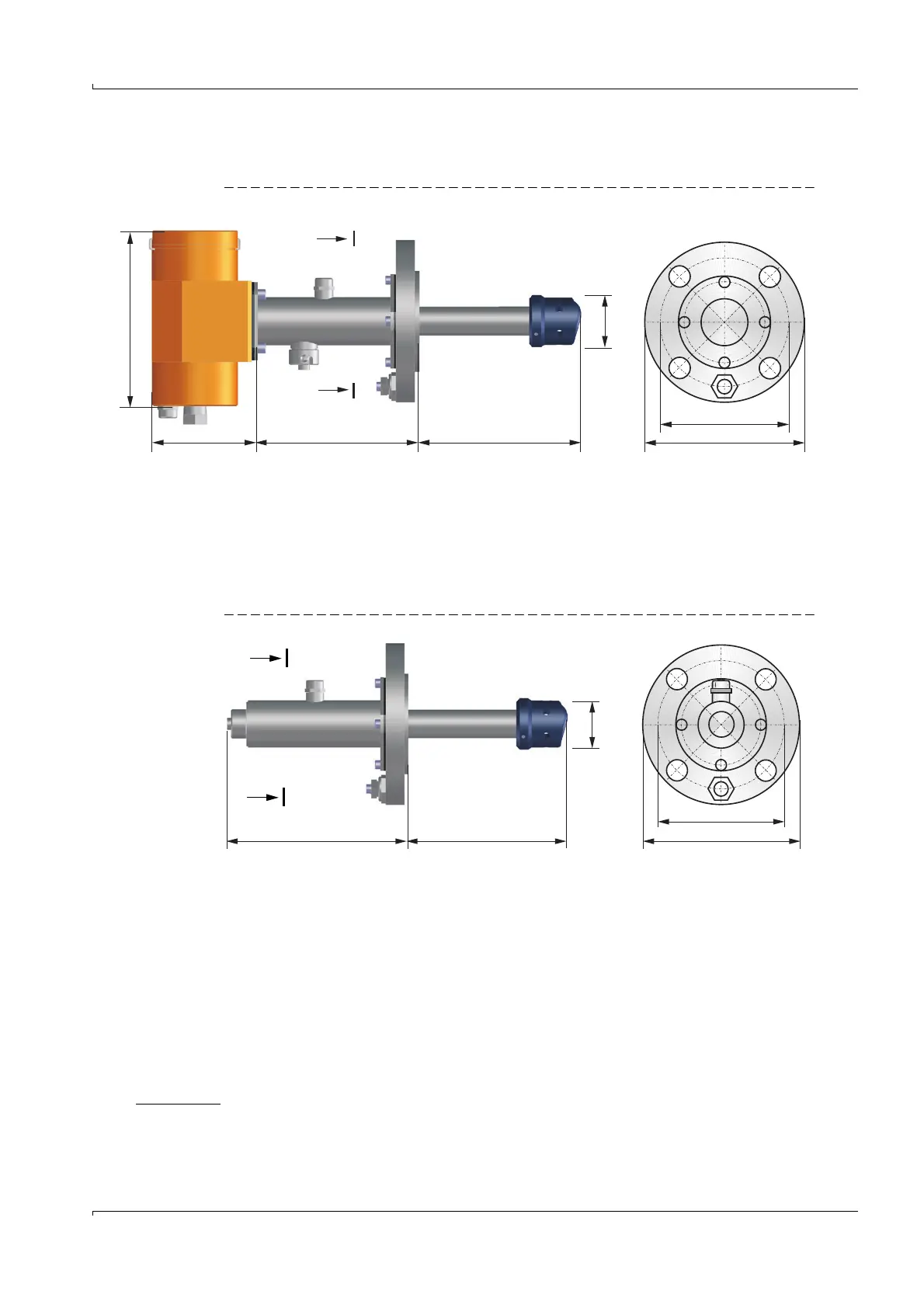

Fig. 142 Sender/receiver unit FLSE100-EXS Master
Fig. 143 Sender/receiver unit FLSE100-EXS Slave
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 2" CL150 RF acc. to ASME B16.5. DN50 PN16 form B1 acc. to EN
1092-1 available as option
A
A
95.5 155.5 148
A -A
163
48
Ø 120.7
Ø 150
171.5 150
48
A
A
A -A
Ø 120.7
Ø 150

SICK FLOWSIC100 Flare Specifications

General

Brand	SICK
Model	FLOWSIC100 Flare
Category	Measuring Instruments
Language	English
