Product Description
Subject to change without notice
2.2.1.2 FLSE100-EXS sender/receiver units
Transducers: small version
Process connection: prepared for mounting on counter flange 2" CL150 RF acc. to ASME
B16.5 or counter flange DN50 PN16 form B1 acc. to EN 1092-1
I) FLSE100-EXS sender/receiver units according to ATEX for use in zone 2 only
Explosion protection: ATEX II 3 G Ex nA IIC T4 Gc
Applied standards: EN 60079-0, EN 60079-15
1 Non-retractable version

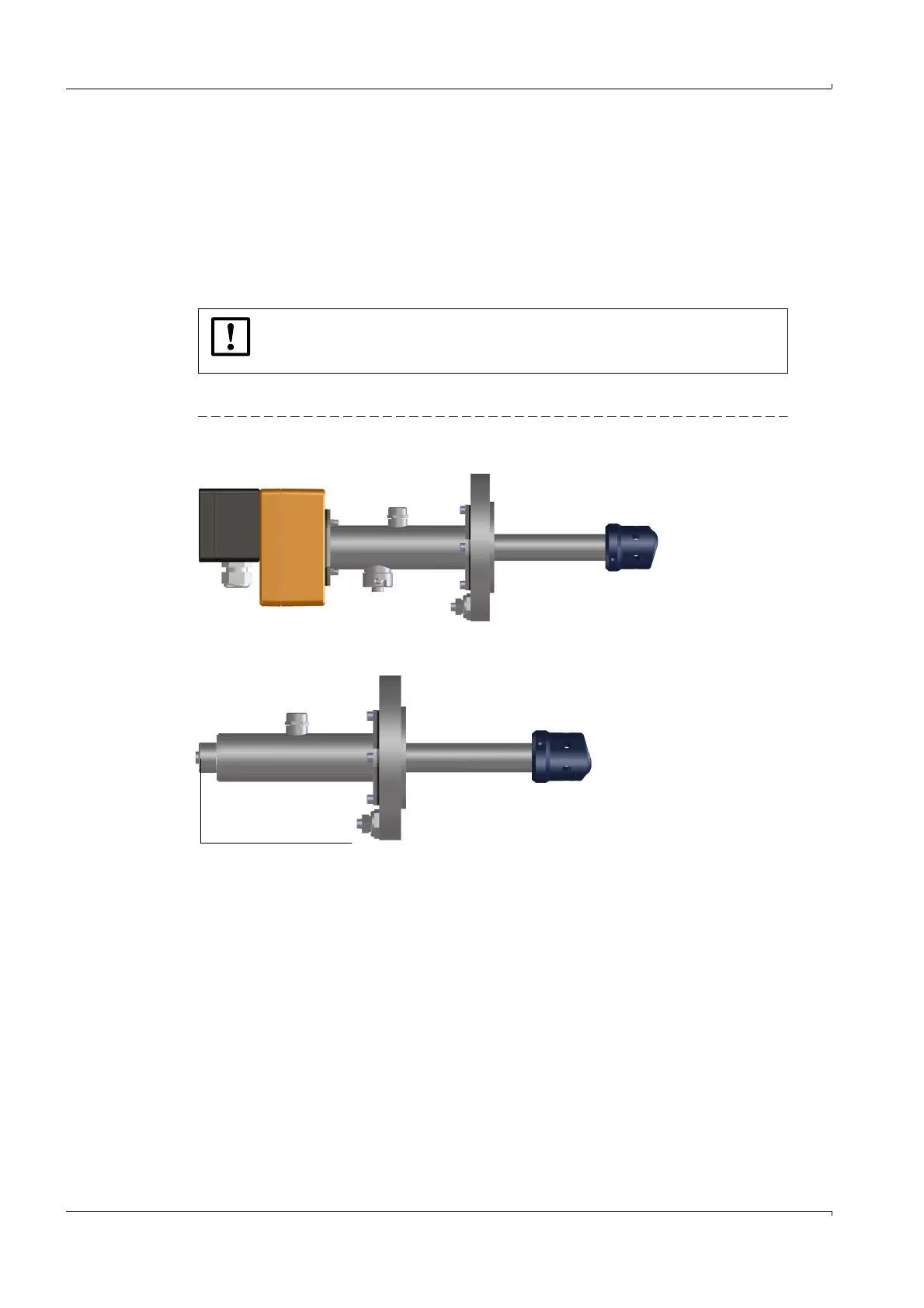

Fig. 6 FLSE100-EXS sender/receiver units, non-retractable version
NOTICE:
Future devices will also be labelled according to EN 60079-0:2012. The previ-
ous label is still valid.
Probe with 2-channel electronics (master)
Connection to master probe
Probe without electronics (slave)
Modules/parts not named:
→ pg. 31, Fig. 5
