Product Description
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 41
Subject to change without notice

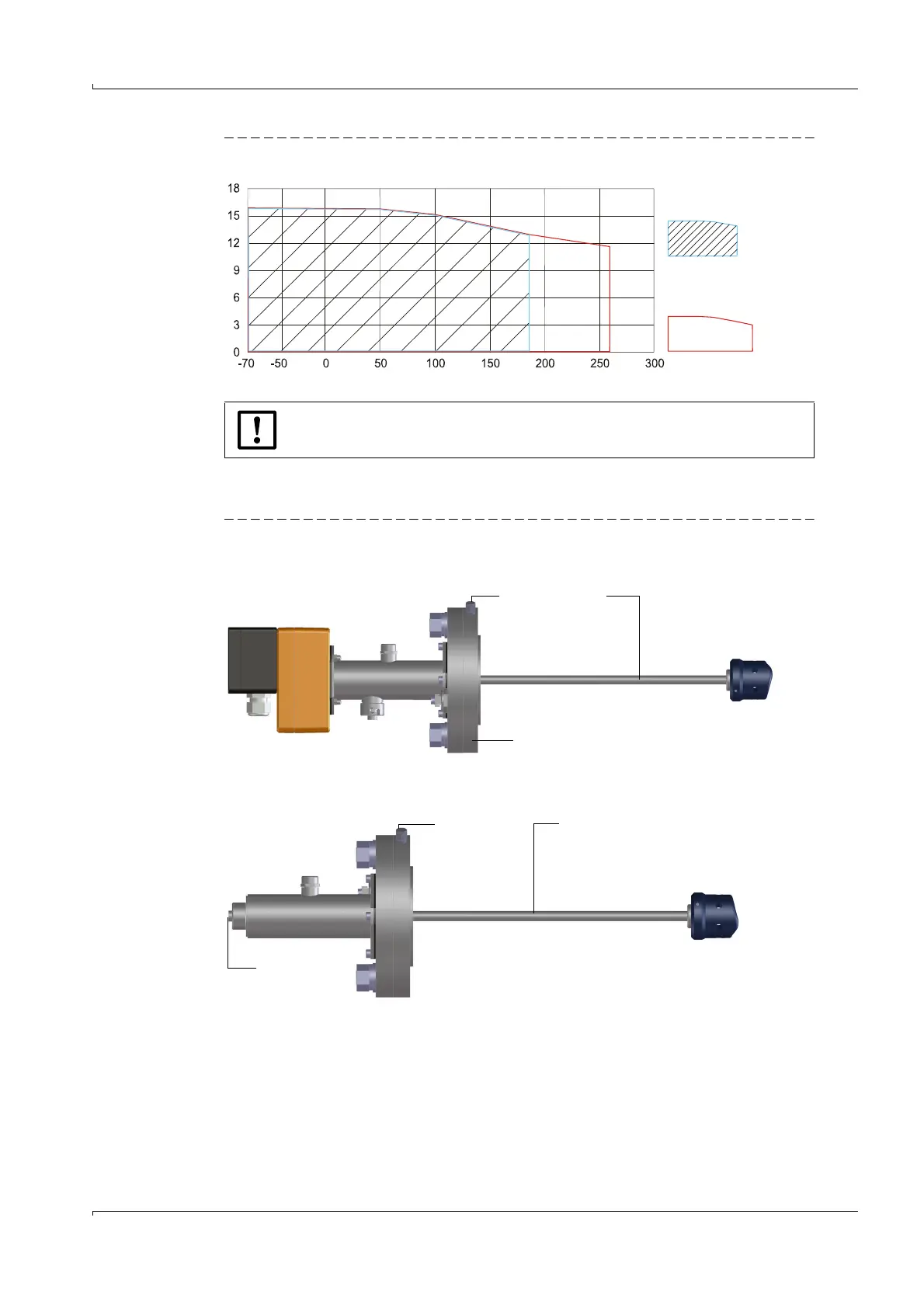

Fig. 7 Permissible sample gas pressure/temperature range
2 Retractable version
Fig. 8 FLSE100-EXS sender/receiver units, retractable version (guide rods not shown)
NOTICE: Range for low temperature version see p. 45, Fig. 14.
Temperature in °C
Pressure in bar
Range for
standard temperature version
Range for high-
temperature version
1 2
1 Connection for optional venting2 Duct probe RE
3 Retraction flange4 Connection to master probe
3
Modules/parts not named:
→ pg. 31, Fig. 5
1 2
4
Probe with 2-channel electronics (master)
Probe without electronics (slave)
1 Connection for optional venting2 Duct probe RE
3 Retraction flange4 Connection to master probe
