Product Description
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 43
Subject to change without notice
II) FLSE100-EXS sender/receiver units certified according to ATEX for use in zone 1 and 2
Explosion protection: ATEX II 1/2 G Ex d e [ia Ga] IIC T4 Ga/Gb, optionally T6 with
reduced ambient temperature range (
→
pg. 210, § 6.1)
1 Non-retractable version

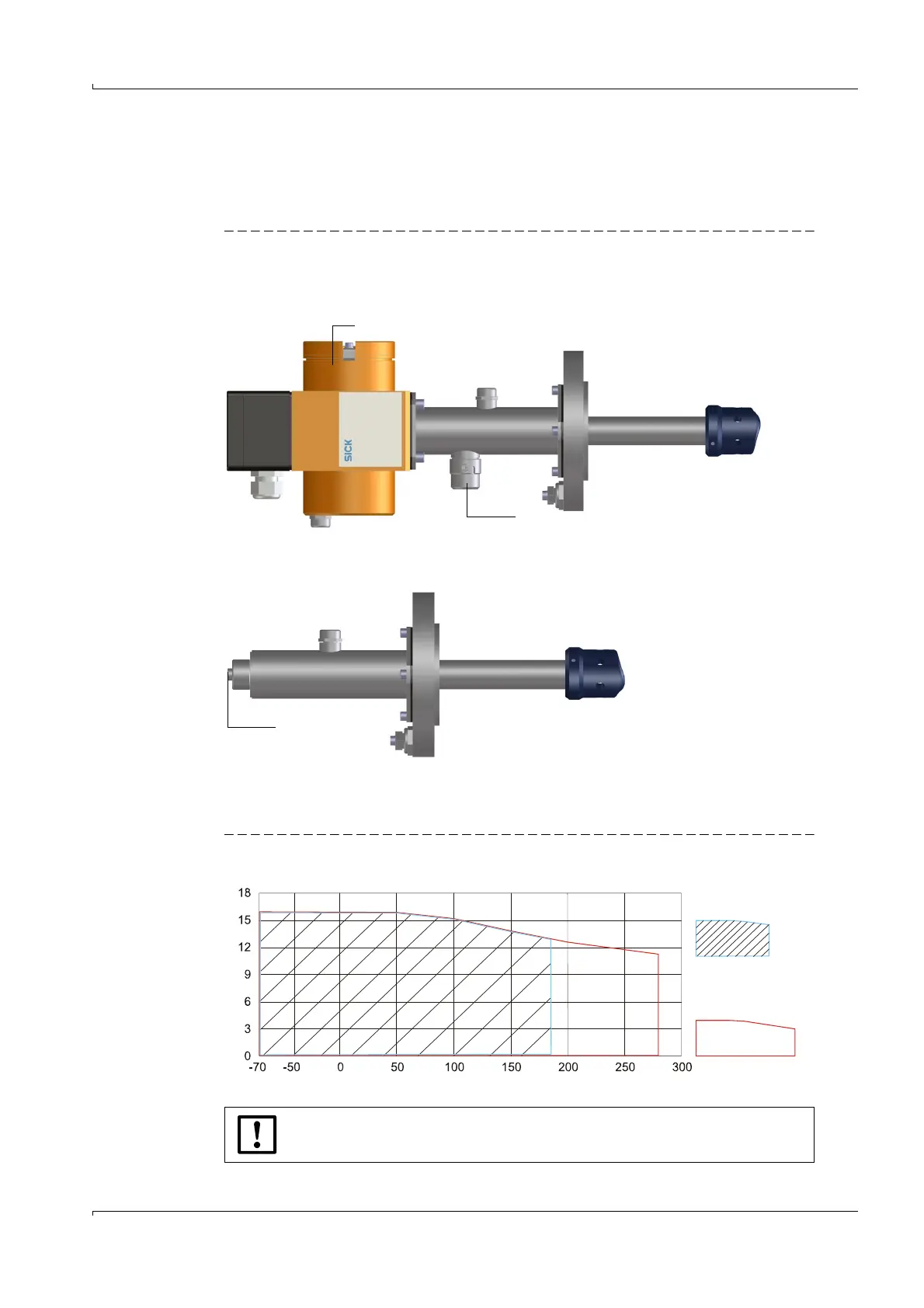

Fig. 10 FLSE100-EXS sender/receiver units, non-retractable version
Fig. 11 Permissible sample gas pressure/temperature range
NOTICE: Range for low temperature version see p. 45, Fig. 14.
1
Probe with 2-channel electronics (master)
Applied standards: EN 60079-0, EN 60079-1, EN 60079-7,
EN 60079-11, EN 60079-26
Probe without electronics (slave)
Applied standards: EN 60079-0, EN 60079-11, EN 60079-26
1 Electronic unit in Exd housing
2 Connection Ex ia to slave probe
3 Connection Ex ia to master probe
2
3
Modules/parts not named:
→
pg. 31, Fig. 5
Temperature in °C
Pressure in bar
Range for
standard temperature version
Range for high-
temperature version
