Product Description
Subject to change without notice
2 Retractable version

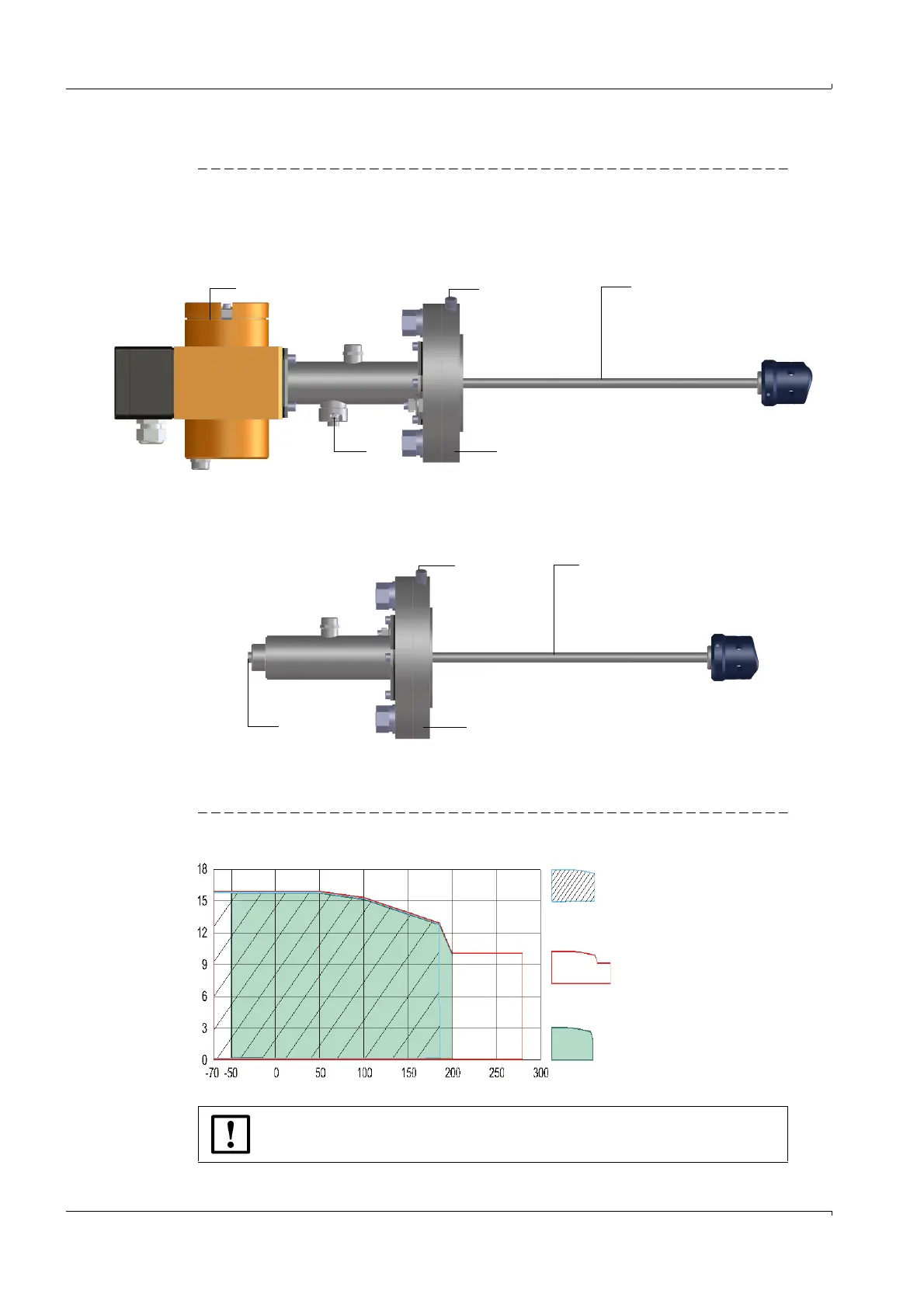

Fig. 12 FLSE100-EXS sender/receiver units, retractable version (guide rods not shown)
Fig. 13 Permissible sample gas pressure/temperature range
NOTICE: Range for low temperature version see p. 45, Fig. 14.
2 3
6 5
1 2 3
Probe with 2-channel electronics (master)
Applied standards: EN 60079-0, EN 60079-1, EN 60079-7,
EN 60079-11, EN 60079-26
Probe without electronics (slave)
Applied standards: EN 60079-0, EN 60079-11, EN 60079-26
1 Electronic unit in Exd housing 4 Connection Ex ia to slave probe
2 Connection for optional venting 5 Retraction flange
3 Duct probe RE 6 Connection Ex ia to master probe
4 5
Modules/parts not named:
→ pg. 31, Fig. 5
Range for
standard temperature version
Range for high-
temperature version
Range for standard temperature
ball valve and retraction flange
Temperature in °C
Pressure in bar
