Assembly and Installation
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 87
Subject to change without notice
Determining the nozzle position and marking on the pipeline for cross-duct types
FLSE100-EXS and EX/EXRE

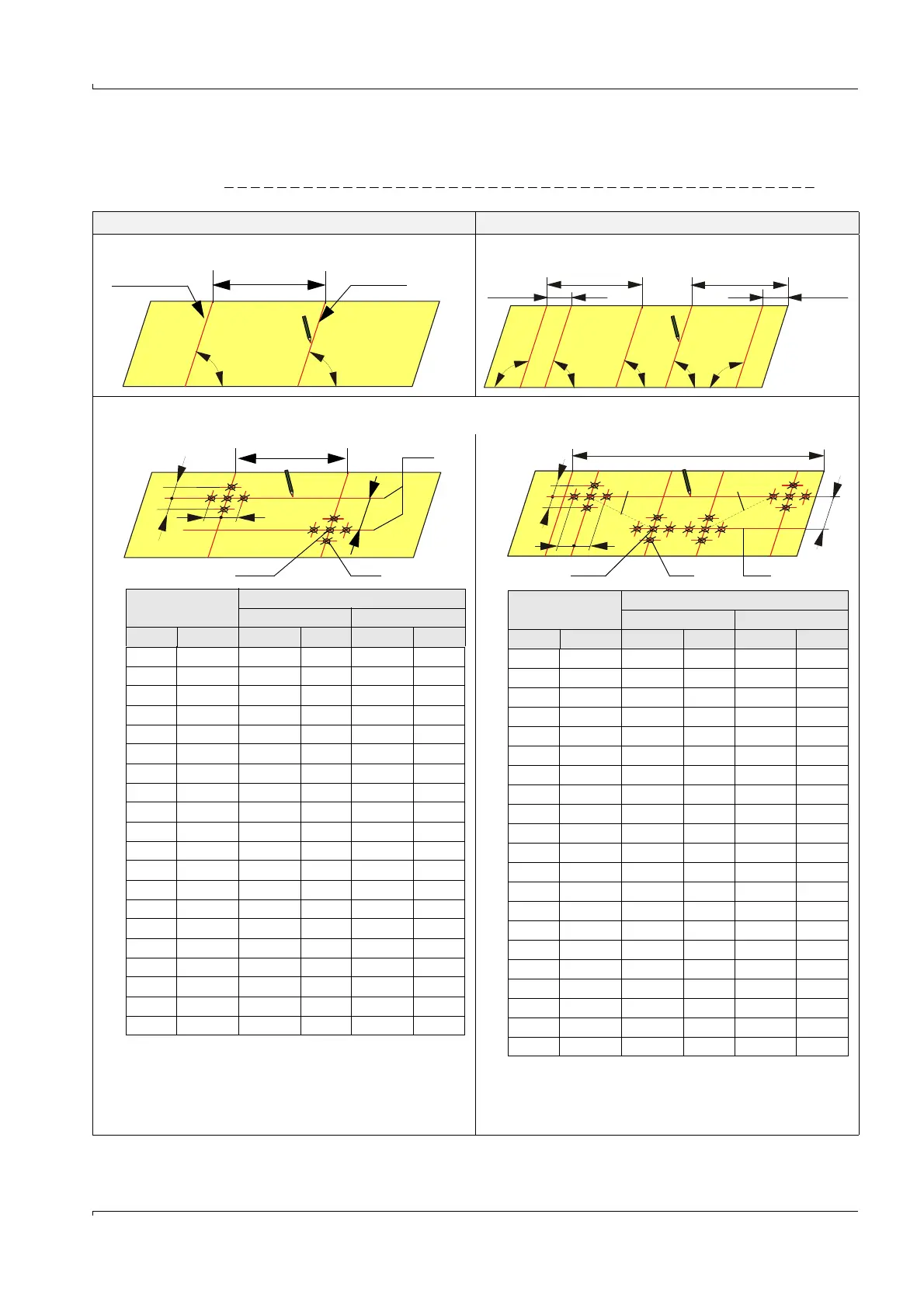

Fig. 36 Determining the nozzle positions on the strip
1-path measurement 2-path measurement
5) Draw guide lines (1) for the nozzle positions in a distance as listed in the table, mark the crossing points (2) and draw marking points
(3) in distance 60 mm (x) from the crossing points.
Overlap line U/2 Kink line
90 ° 90 °
4a) Roll the strip out again and mark the kink line.
90 ° 90 ° 90 ° 90 ° 90 °
4b) Roll the strip out again and mark the lines as follows:
2.498•r 2.498•r
0.6435•r 0.6435•r
r = D/2
(
→
pg. 81,
§ 3.1.3)
6a )Measure and note values a and U/2 (needed to calculate
the path angle and path length).
Outside
diameter
Nozzle offset a
FLSE100-EXS FLSE100-EX/EXRE
inch mm mm inch mm inch
4 114 32.0 1.25
5 141 37.5 1.48
6 168 44.0 1.72
8 219 55.0 2.17 50.0 1.94
10 273 67.0 2.64 61.5 2.42
12 324 78.5 3.08 72.5 2.86
14 356 85.5 3.36 79.5 3.14
16 406 96.5 3.80 91.0 3.58
18 457 108.0 4.24 102.5 4.03
20 508 119.0 4.68 113.5 4.47
22 559 130.5 5.13 125.0 4.91
24 610 141.5 5.57 136.0 5.35
26 660 147.5 5.80
28 711 158.5 6.24
30 762 170.0 6.68
32 813 182.0 7.13
34 864 192.5 7.57
36 914 203.5 8.02
42 1067 237.5 7.35
48 1219 271.0 10.68
x
x
x x
U/21
a
2 3
x
x
x x
a
Outside
diameter
Nozzle offset a
FLSE100-EXS FLSE100-EX/EXRE
inch mm mm inch mm inch
12 305 64.0 2.52 58.0 2.30
14 356 70.0 2.76 64.0 2.51
16 406 79.0 3.11 73.0 2.87
18 457 88.0 3.46 82.0 3.22
20 508 97.0 3.82 91.0 3.58
22 559 106.0 4.17 100.0 3.93
24 610 115.0 4.53 109.0 4.29
26 660 118.0 4.64
28 711 127.0 5.00
30 762 136.0 5.35
32 813 145.0 5.71
34 864 154.0 6.06
36 914 163.0 6.42
42 1067 190.0 7.48
48 1219 217.0 8.54
52 1321 235.0 9.25
56 1422 253.0 9.96
60 1524 271.0 10.67
64 1626 289.0 11.38
68 1727 307.5 12.10
72 1829 325.0 12.80
U
1
2 3
Path 1Path 2
6b) Measure and note values a and U (needed to calculate the
path angle and path length).
