Assembly and Installation
Subject to change without notice

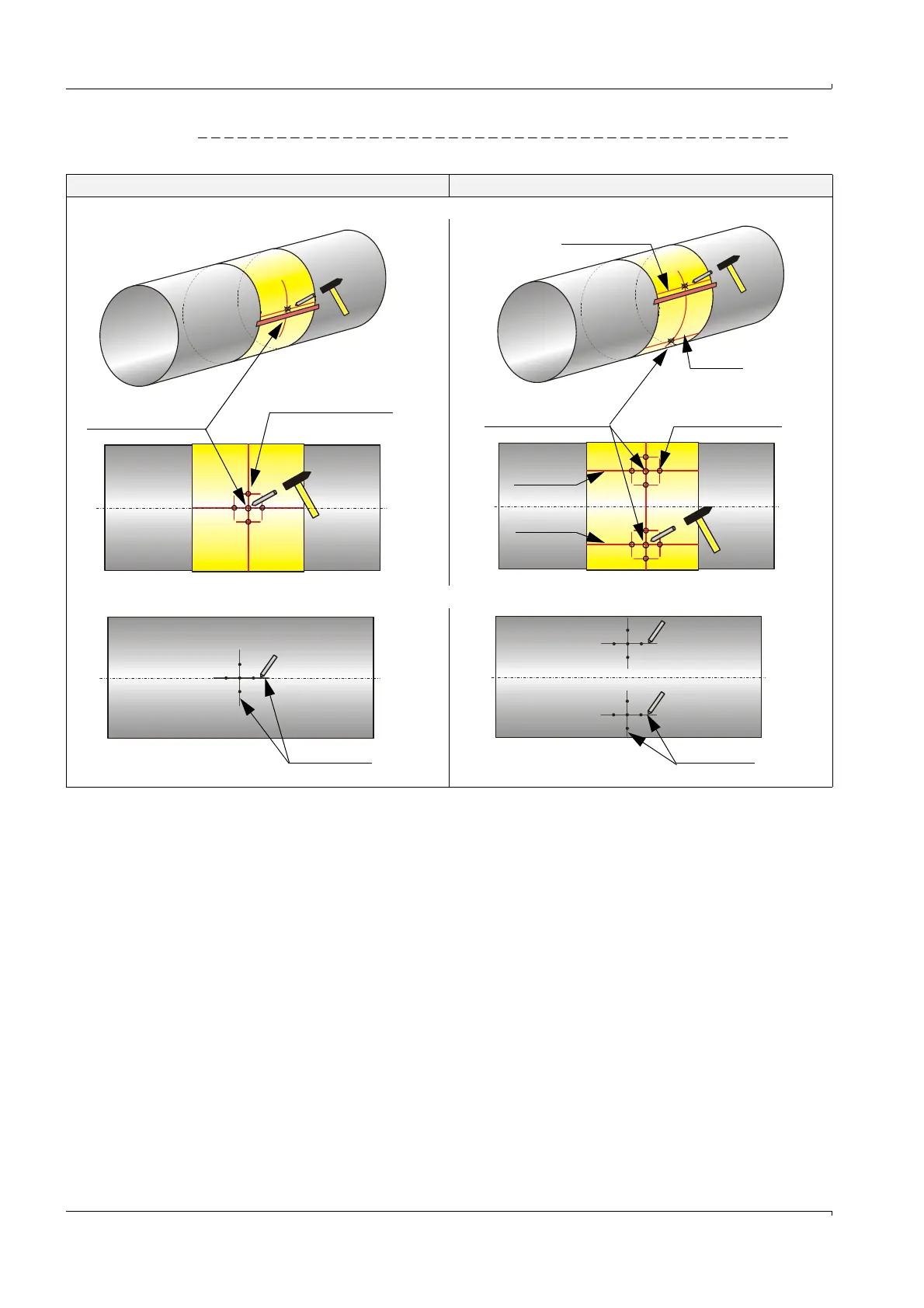

Figure 39 Marking the nozzle position(s) on the pipeline
1-path measurement 2-path measurement
6) Roll the strip back around the pipeline and mark the nozzle positions with crossing and marking points by using a metal center punch.
7) Take the strip off again and join the additional markings with a line.
Crossing point (marking for
the center of the nozzle
Marking point (aid for
aligning the nozzle
Path 1
Path 2
Path 1
Path 2
Marking point (aid for
aligning the nozzle
Crossing point (marking for
the center of the nozzle
Marking lines
Marking lines
