10-8 SIEMENS Energy & Automation
SIMOREG DC Master Base Drive Panel Operating Instructions
PNU Description Value range
[Unit]
Steps
No. indices
Factory
setting
Type
See
Change
(Access /
Status)
r011
(G112)
(G117)
Display of status of binary outputs

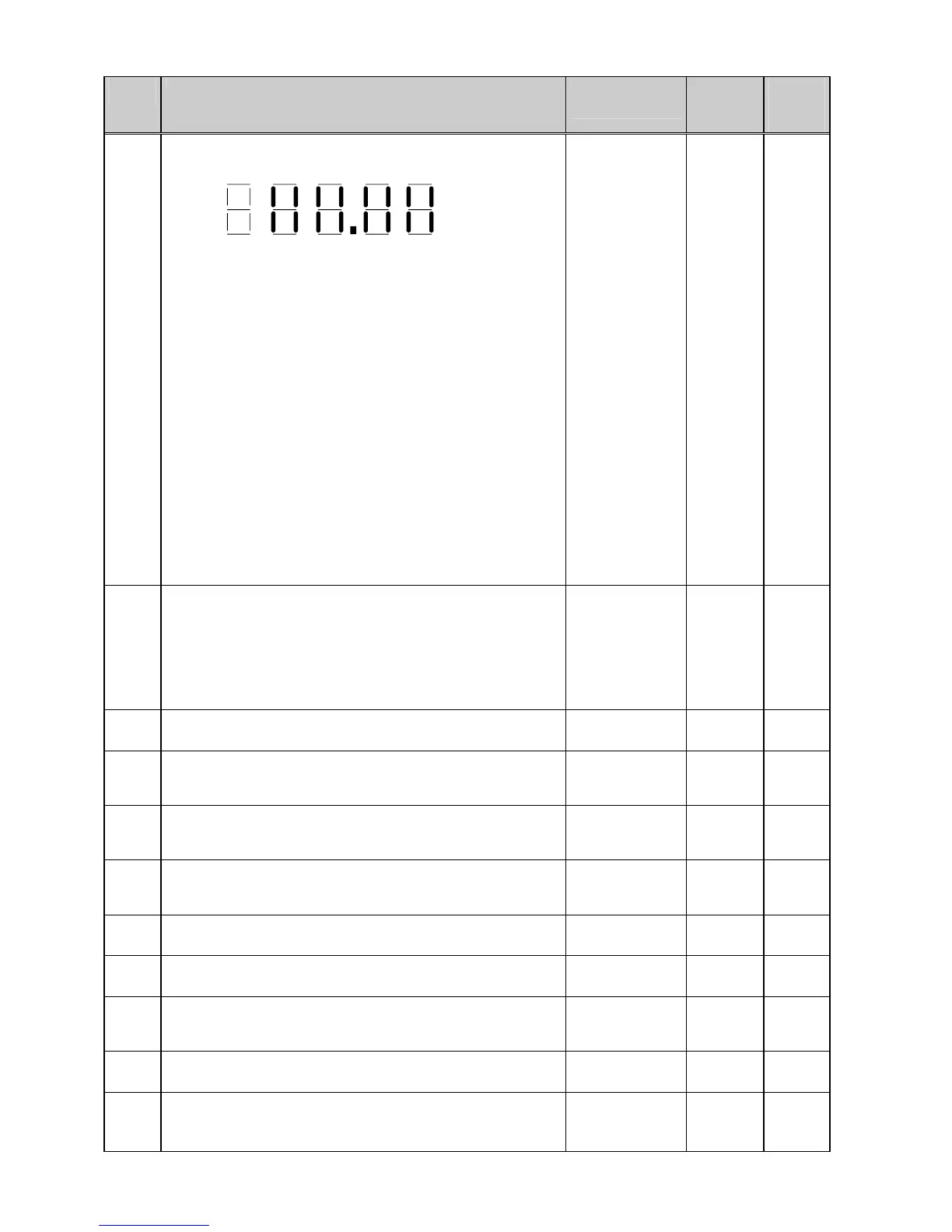

Representation on operator panel (PMU):
3210
4
5
6
7
89101112131415
Segment ON: Corresponding terminal is activated
(HIGH level is applied) or overloaded or short-circuited
Segment OFF: Corresponding terminal is not activated
(LOW level is applied) or not overloaded or not short-
circuited
Display of status of binary output terminals:
Segment or bit
0 ..... Terminal 46
1 ..... Terminal 48
2 ..... Terminal 50
3 ..... Terminal 52
7 ..... Terminal 109/110 (relay contact for line contactor)
Display of overloading of binary outputs:
Segment or bit
8 ..... Terminal 46
9 ..... Terminal 48
10 .... Terminal 50
11 .... Terminal 52
12 .... Terminal 26 (15V output)
13 .... Terminal 34, 44 and/or 210 (24V output)
Ind: None
Type: V2
P052 = 3
r012
(G185)
Motor temperature
Display of motor temperature when a KTY 84 temperature sensor is
connected (P490.x=1).
A value of "0" is always output in r012 when a PTC thermistor or no
temperature sensor is installed.
i001: Motor temperature 1 (sensor at terminals 22 / 23)
i002: Motor temperature 2 (sensor at terminals 204 / 205)
-58 to +200
[°C]
1°C
Ind: 2
Type: I2
P052 = 3
r013 Heatsink temperature
Display of heatsink temperature
-47 to +200
[°C]
1°C
Ind: None
Type: I2
P052 = 3
r014 Temperature rise
i001: Calculated motor temperature rise (see P114)
i002: Calculated thyristor temperature rise (see P075)
0.0 to 200.0
[%]
0.1%
Ind: 2
Type: O2
P052 = 3
r015 Display of line voltage (armature)
(generated as arithmetic rectification average, RMS value display applies to
sinusoidal voltage, average over 3 line-to-line voltages)
0.0 to 2800.0
[V]
0.1V
Ind: None
Type: O2
P052 = 3
r016 Display of line voltage (field)
(generated as arithmetic rectification average, RMS value display applies to
sinusoidal voltage)
0.0 to 800.0
[V]
0.1V
Ind: None
Type: O2
P052 = 3
r017 Display of line frequency
0.00 to 120.00
[Hz]
0.01Hz
Ind: None
Type: O2
P052 = 3
r018
(G163)
Display of firing angle (armature)
0.00 to 180.00
[degrees]
0.01degrees
Ind: None
Type: O2
P052 = 3
r019
(G162)
Display of actual armature current
The internal actual armature current value is displayed (arithmetic average
over the last 6 current peaks in each case)
-400.0 to 400.0
[% of P100]
0.1% of P100
Ind: None
Type: I2
P052 = 3
r020
(G162)
Display of the absolute value of armature current setpoint
0.0 to 300.0
[% of P100]
0.1% of P100
Ind: None
Type: I2
P052 = 3
r021
(G160)
Display of torque setpoint after torque limitation
Steps: 1
=
∧
0.1% of rated motor torque (=rated motor armature current
(P100) * magnetic flux at rated motor field current (P102))
-400.0 to 400.0
[%]
0.1% (see column on
left)
Ind: None
Type: I2
P052 = 3
