MODULARIS Uro Plus SPL1-130.840.02 Page 14 of 16 Siemens AG
Rev. 03 04.05 CS PS 24 Medical Solutions

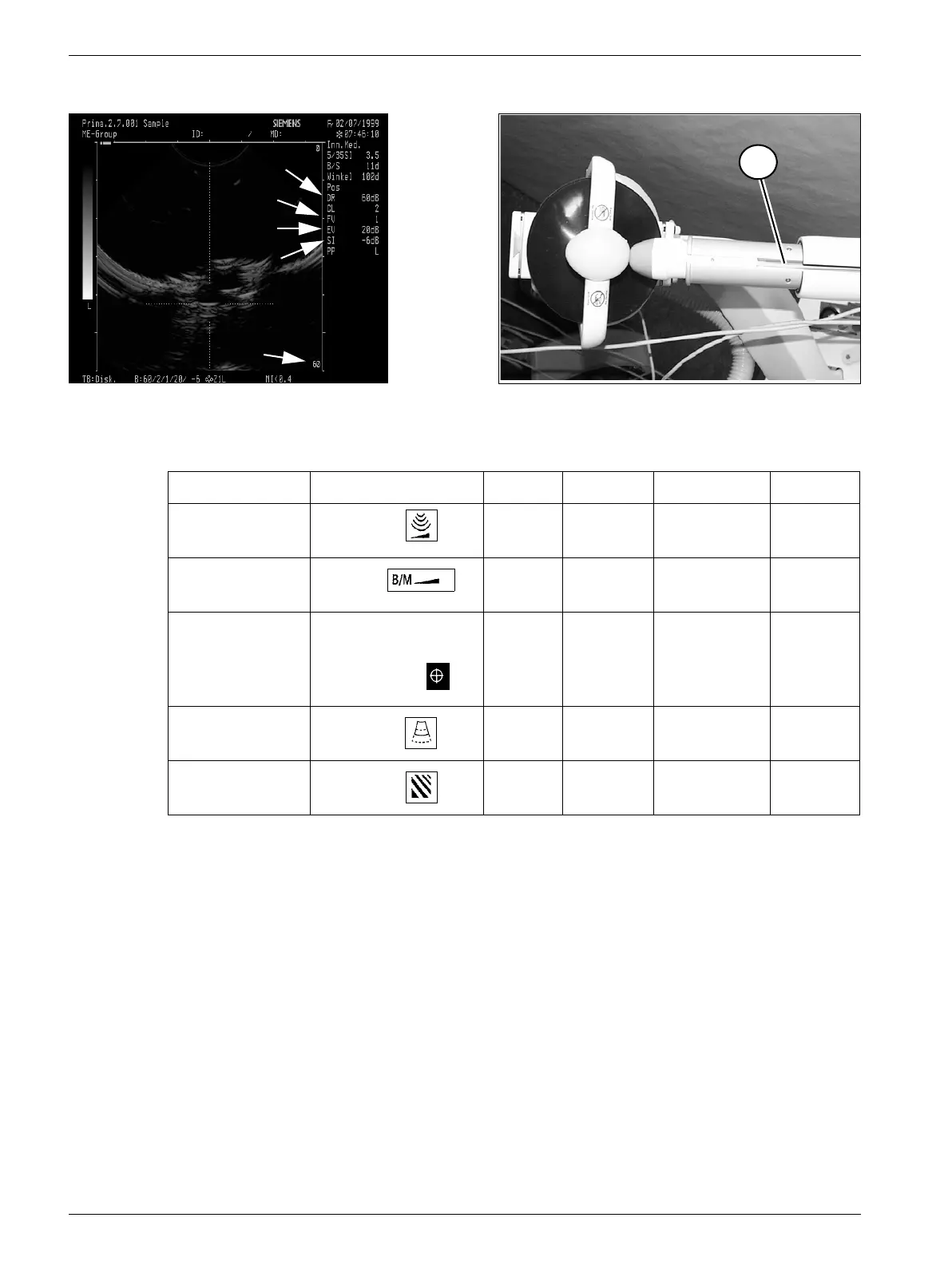

6 - 14 Iso-center with ultrasound
• Make the following basic settings at the ultrasound unit:
Fig. 21 Fig. 22
Value: Adjust using: German English French Spanish
- 6 dB (C/Fig. 21) Knob SI Output Sortie Salida
20 dB (B/Fig. 21) Knob EV Gain Gain Ampl
3 (A/Fig. 21)
set track ball to FV
(highlighted in white)
then press
FV Edge Côté Contorno
60 (D/Fig. 21) Knob ------- ------- ------- -------
60 dB (E/Fig. 21) Knob DR Dyn Rng DR Cam Din
1
D
B
A
E
C
