Siemens SIMOCODE pro Function Manual

Communication
2.2 PROFINET communication
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
89
OPC UA send
The bit information that is to be transferred to the client via OPC UA Send is also defined by
configuring with SIMOCODE ES.
OPC-UA variables (read):
● Send data byte 0, bits 0-7
● Send data byte 1, bits 0-7
Data from SIMOCODE PRO V PN (GP):

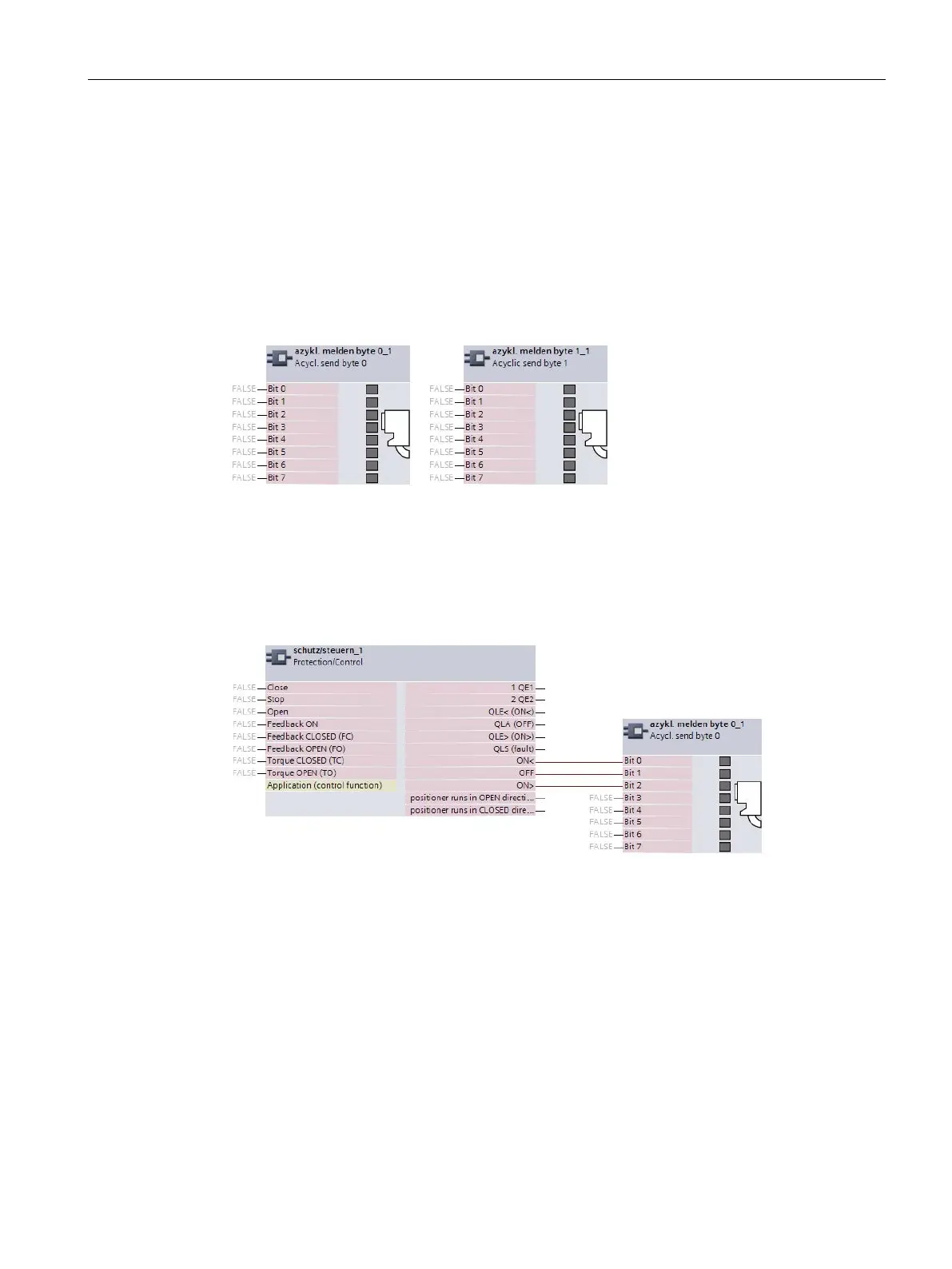

Figure 2-27 OPC UA Send 0, 1 function blocks
Example:
The feedback of the switching state of the motor is transferred to the client via OPC UA.
When selecting the variables in the OPC UA client, the assigned status signals are then as
follows:
Figure 2-28 Configuration of OPC UA Send in SIMOCODE ES
