Telegram
Set the same telegram in the converter as in the IO Controller. Interconnect the telegrams in the
control program of the IO Controller with the signals of your choosing.
Drive control via PROFIBUS or PROFINET (Page211)
Application examples
You can nd application examples for PROFINET communication on the Internet:
Controlling the speed of a SINAMICS G110M/G120/G120C/G120D with S7-300/400F
via PROFINET or PROFIBUS, with Safety Integrated (via terminal) and HMI (https://
support.industry.siemens.com/cs/ww/en/view/60441457)
Controlling the speed of a SINAMICS G110M / G120 (Startdrive) with S7-1500
(TO) via PROFINET or PROFIBUS, with Safety Integrated (via terminal) and HMI (https://
support.industry.siemens.com/cs/ww/en/view/78788716)
4.10.10.4 Installing GSDML
Procedure
1. Save the GSDML to your PC.
– With Internet access:
GSDML (https://support.industry.siemens.com/cs/ww/en/view/26641490)
– Without Internet access:
Insert a memory card into the converter.
Set p0804=12.
The converter writes the GSDML as a zipped le (*.zip) into directory /SIEMENS/SINAMICS/
DATA/CFG on the memory card.
2. Unzip the GSDML le on your computer.
3. Import the GSDML into the engineering system of the controller.
You have now installed the GSDML in the engineering system of the controller.

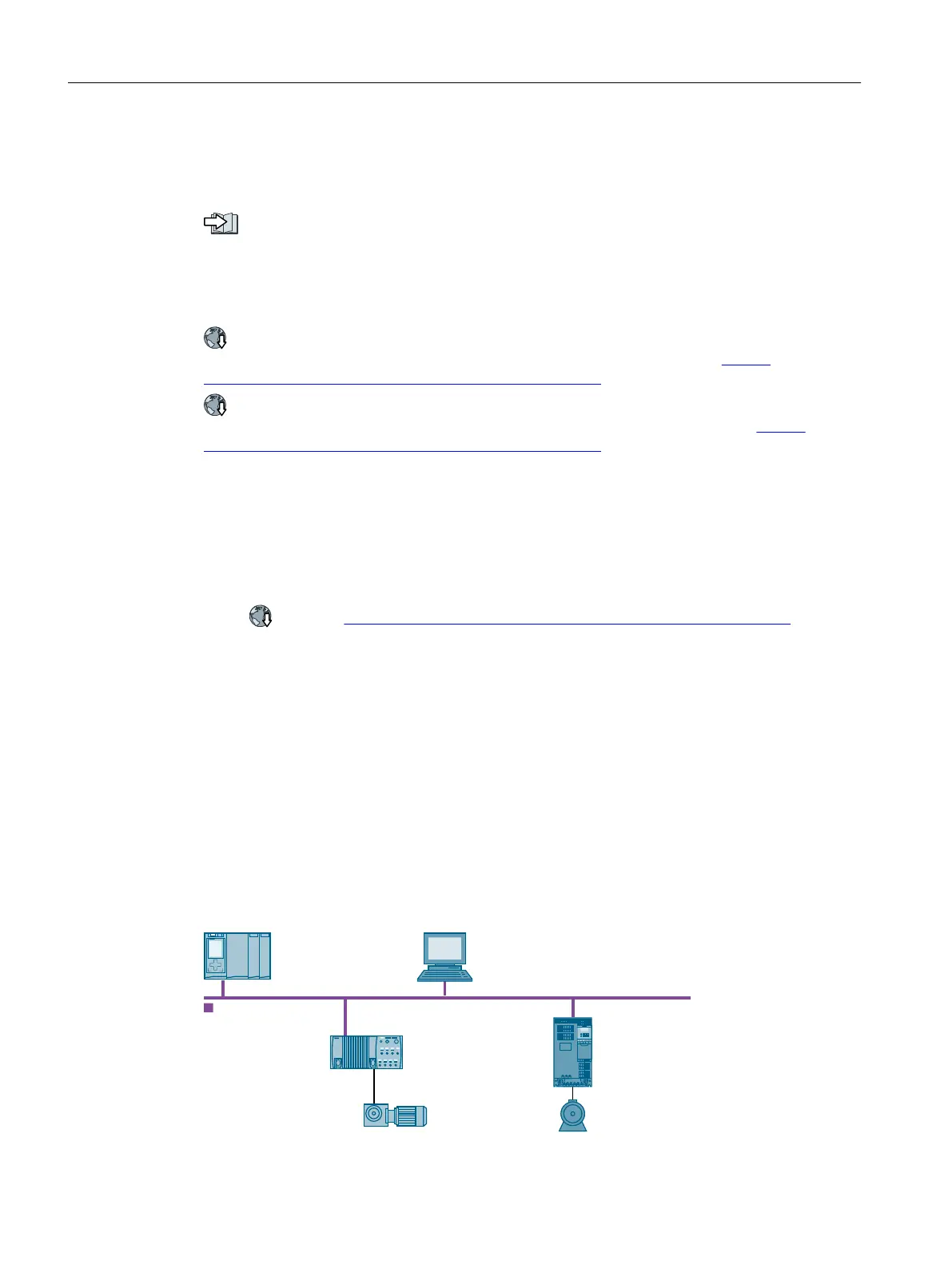

4.10.11 Connecting the converter to PROFIBUS
6,1$0,&6*'
6ODYH
6,1$0,&6*
6ODYH
3&&ODVV0DVWHU
352),%86'3
6,0$7,&6
&ODVVPDVWHU
Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
112 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK
