8.10 Jogging
Overview
The "Jog" function is typically used to temporarily move a motor using local control
commands.
Requirement
The OFF1 command must be active. With an active ON command, the converter ignores the
commands "Jogging1" and "Jogging2".
Function description
5HDG\WRVZLWFKRQ
2SHUDWLRQ
QRMRJJLQJ-RJJLQJ
Commands "Jog1" or "Jog2" switch the motor on and o󹪜.
The commands are only active when the converter is in the "Ready for switching on" state.
0RWRUVSHHG
0D[LPXPVSHHG
-RJJLQJ
6HWSRLQWMRJJLQJ
6HWSRLQWMRJJLQJ
-RJJLQJ
S
S
S
W
W
W
SS

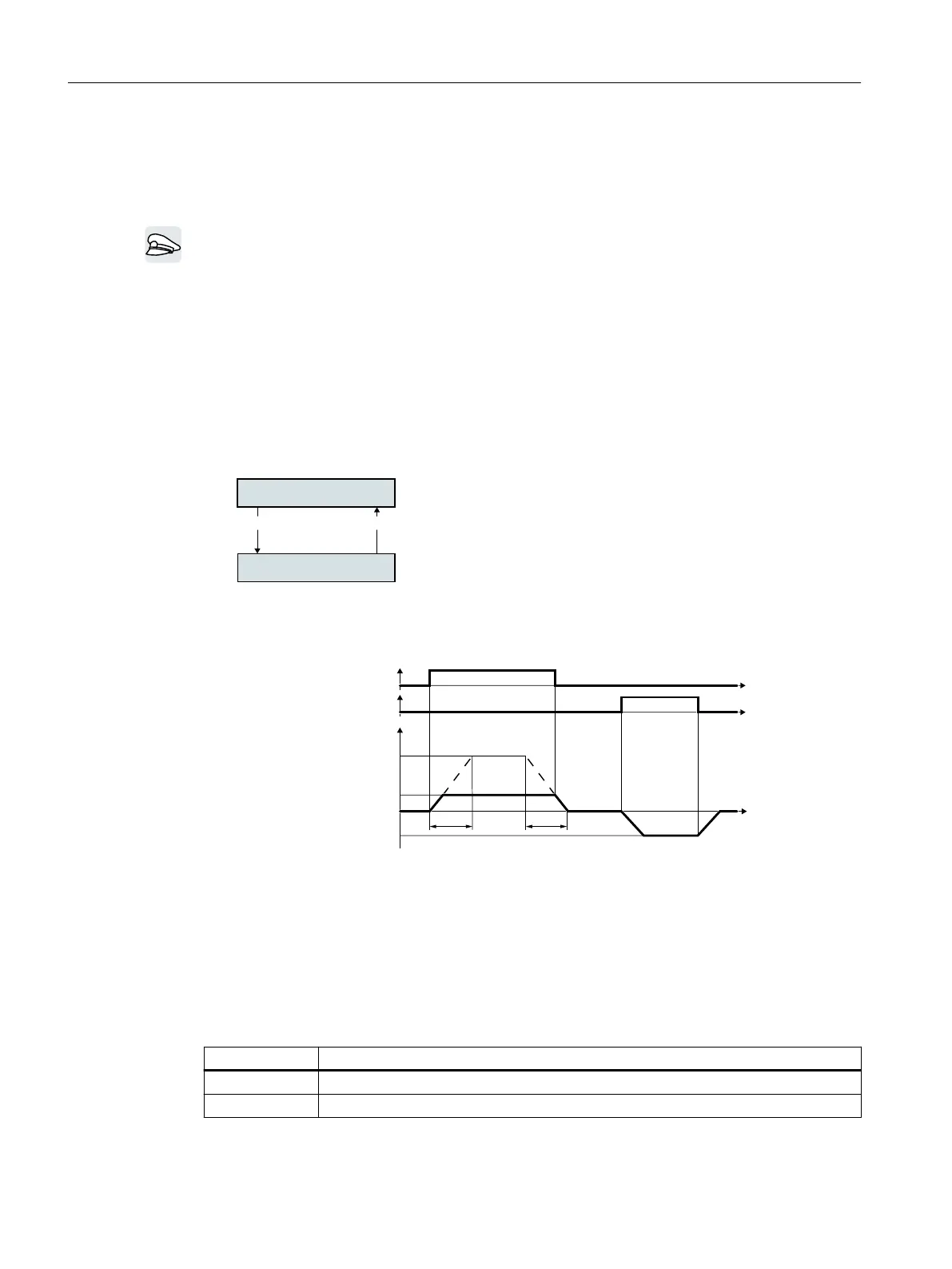

Figure8-22 Behavior of the motor when "jogging"
After switching on, the motor accelerates to the setpoint, jog1 or setpoint, jog2. The two
di󹪜erent setpoints can, for example, be assigned to motor clockwise and counter-clockwise
rotation.
When jogging, the same ramp-function generator is active as for the ON/OFF1 command.
Example
Parameter Description
p1055 = 722.0 Jogging bit 0: Select jogging1 via digital input0
p1056 = 722.1 Jogging bit 1: Select jogging2 via digital input1
Advanced commissioning
8.10Jogging
SINAMICS G120C Converters
240 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
