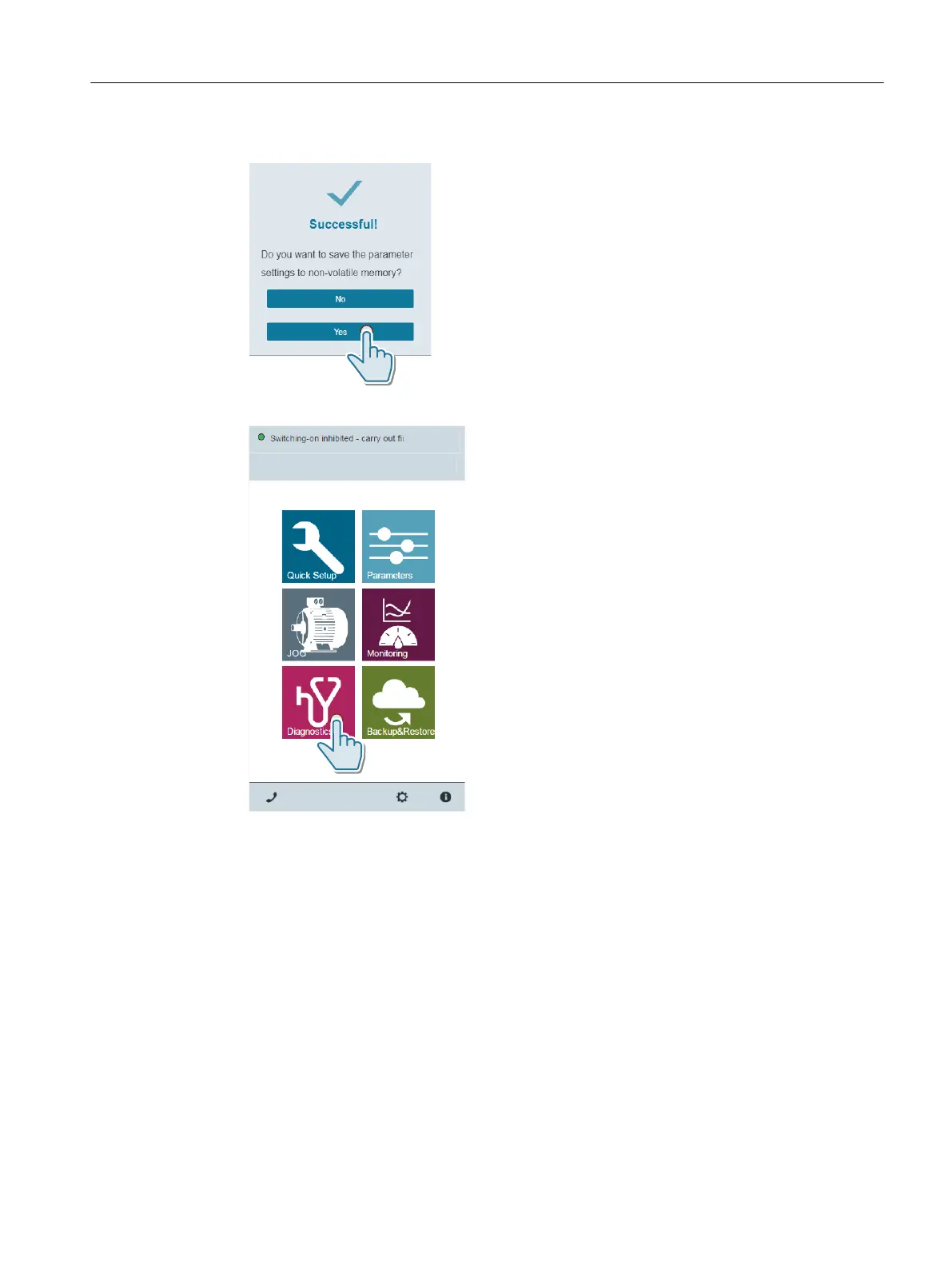

4. Back up the settings so that they are protected against power failure.
5. After loading, check whether the converter outputs Alarm A01028.
– Alarm A01028:
The loaded settings are not compatible with the converter.
Delete the alarm with p0971=1.
Recommission the drive.
– No alarm A01028: Proceed with the next step.
You transferred the settings from the Smart Access to the new converter.
❒
10.2.1.7 Download from the PC using Startdrive
Overview
You can transfer the converter settings that have been backed up to a PC back to the converter.
Corrective maintenance
10.2Downloading the converter settings
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 389
