Siemens SINAMICS G120C DP User Manual

Mounting frame size FSAA on two base components
















0RWRU
RXWSXWFKRNH
RUVLQHZDYHILOWHU
0RWRU
RXWSXWFKRNH
RUVLQHZDYHILOWHU
/LQHVXSSO\/LQHVXSSO\/LQHVXSSO\
/LQHILOWHURUOLQH
UHDFWRU
%UDNLQJUHVLVWRU
0RWRU
/LQHILOWHU
/LQHILOWHURUOLQH
UHDFWRU
6LQHZDYHILOWHUV
/LQHVXSSO\
0RWRU
/LQHILOWHURUOLQH
UHDFWRU
2XWSXWFKRNH/LQHUHDFWRU

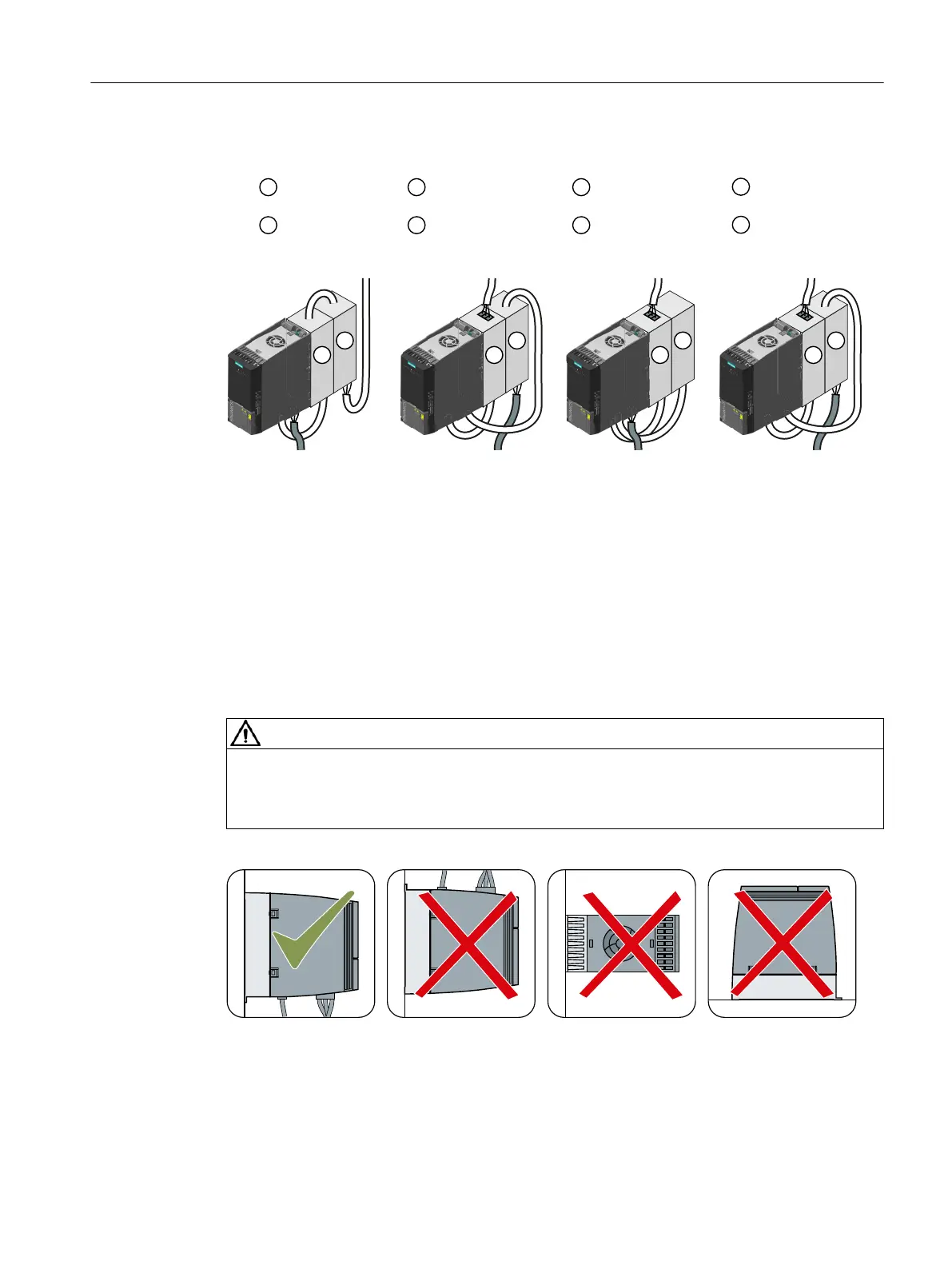

Figure4-12 Permissible combinations of base components
You can combine two base components.
4.4 Mounting the converter
Mounting position
CAUTION
Overheating due to inadmissible mounting position
The converter can overheat, and therefore be damaged if mounted in an inadmissible position.
• Only mount the converter in a permissible position.
Figure4-13 Only mount in the vertical position with the line connection at the bottom
Installing
4.4Mounting the converter
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 49

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
