Siemens SINAMICS G120C DP User Manual

For this product, this means:
The product does not process neither store any person-related data, only technical function
data (e.g. time stamps). If the user links these data with other data (e.g. shift plans) or if
he stores person-related data on the same data medium (e.g. hard disk), thus personalizing
these data, he has to ensure compliance with the applicable data protection stipulations.
5.3 Preparing for commissioning
5.3.1 Collecting motor data
Data for a standard induction motor
Before starting commissioning, you must know the following data:
• Which motor is connected to the converter?
Note down the Article No. of the motor and the motor’s nameplate data.
If available, note down the motor code on the motor’s nameplate.
9ROWDJH
&XUUHQW
3RZHU
6SHHG
$UWLFOH1R
1(0$
1(0$
,(&
,(&

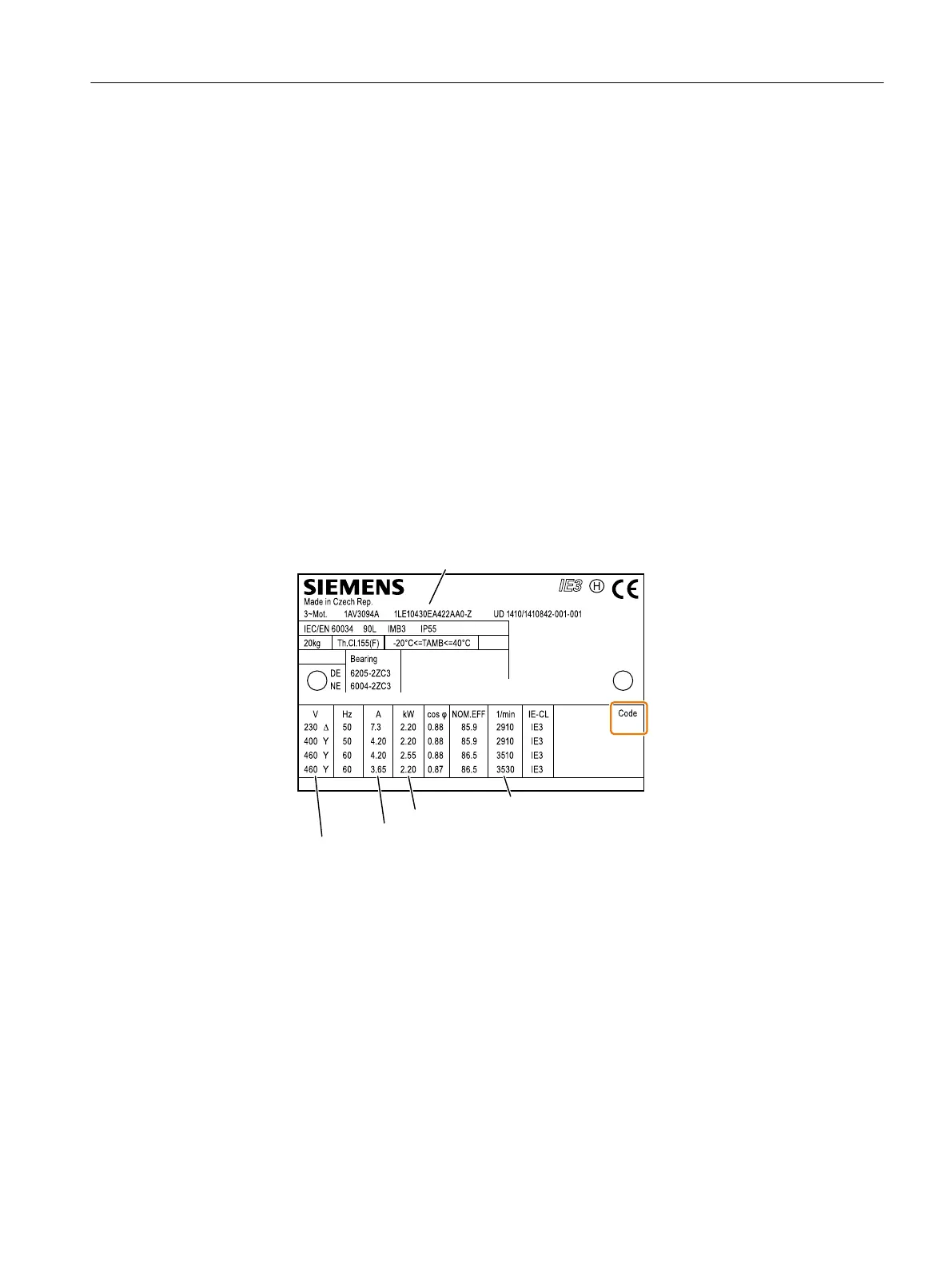

Figure5-1 Example of the rating plate for a standard induction motor
• In which region of the world is the motor to be used?
- Europe IEC: 50Hz [kW]
- North America NEMA: 60 Hz [hp] or 60 Hz [kW]
• How is the motor connected?
Pay attention to the connection of the motor (star connection [Y] or delta connection [Δ]).
Note the appropriate motor data for connecting.
Commissioning
5.3Preparing for commissioning
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 121

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
