Parameters
Table 8-6 Parameters for the scaling characteristic
Parameter Description Factory setting
p0777[0…1] CU analog outputs characteristic value x1 -
p0778[0…1] CU analog outputs characteristic value y1 0 V
p0779[0…1] CU analog outputs characteristic value x2 100%
p0780[0…1] CU analog outputs characteristic value y2 20V

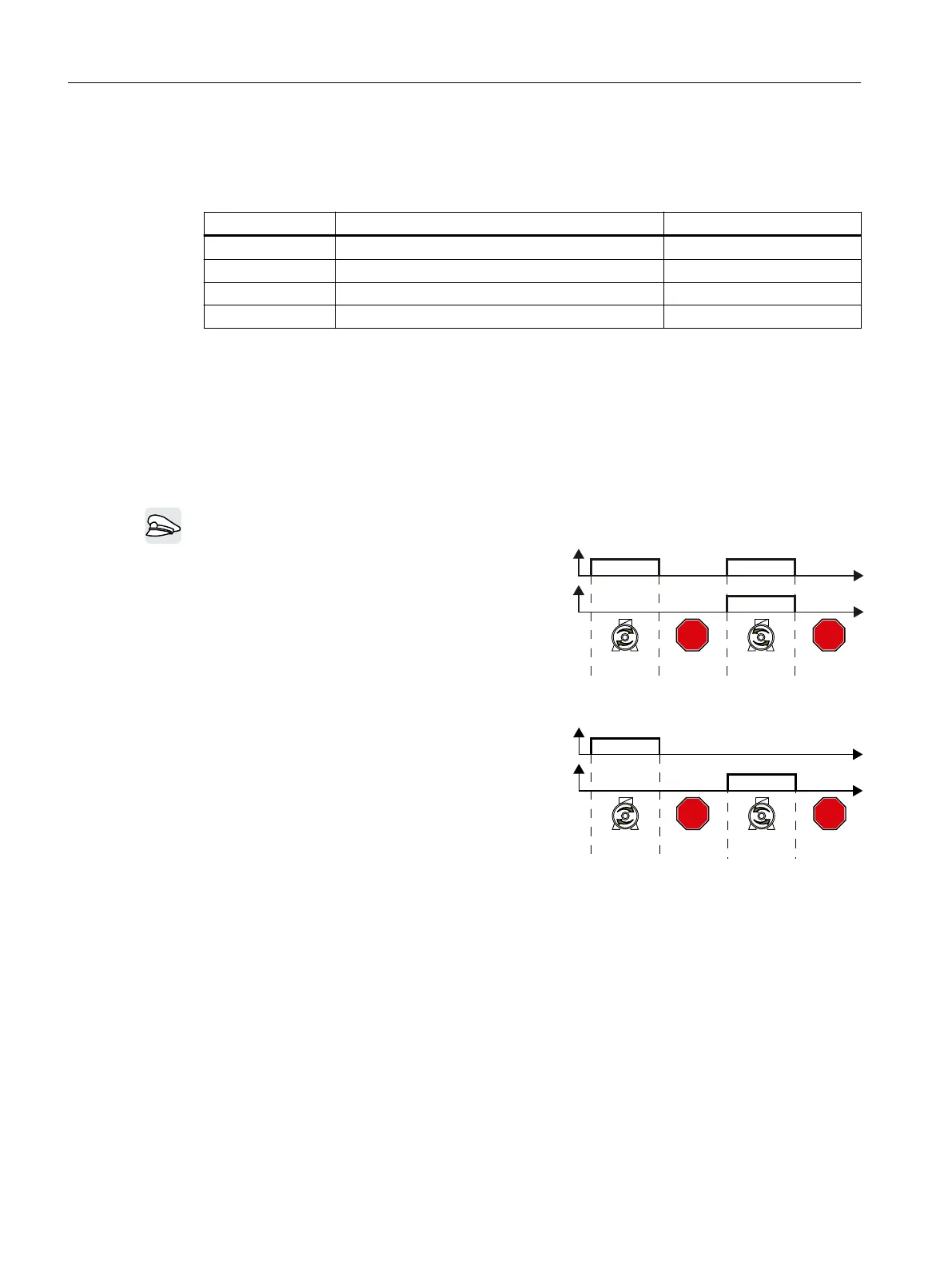

8.5 Controlling clockwise and counter-clockwise rotation via digital
inputs
Overview
The converter o󹪜ers various methods to start and stop the motor and reverse its direction.
Two-wire control, ON/reverse
212))
5HYHUVLQJ
&ORFNZLVH&RXQWHU
FORFNZLVH
6WRS6WRS
W
W
67236723
ON/OFF1:
Switches the motor on or o󹪜
Reversing:
Reverses the motor direction of rota‐
tion
 
Two-wire control, clockwise/coun‐
terclockwise rotation 1 and clock‐
wise/counterclockwise rotation 2
212))
FORFNZLVHURWDWLRQ
212))
FRXQWHU
FORFNZLVHURWDWLRQ
&ORFNZLVH&RXQWHU
FORFNZLVH
6WRS6WRS
W
W
67236723
ON/OFF1 clockwise rotation:
Switches the motor on or o󹪜, clock‐
wise rotation
ON/OFF1 counter-clockwise rotation:
Switches the motor on or o󹪜, counter-
clockwise rotation
 
Advanced commissioning
8.5Controlling clockwise and counter-clockwise rotation via digital inputs
SINAMICS G120C Converters
200 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
