Application example
In the following application example, the higher-level control sets the ramp-up and ramp-down
times of the converter via PROFIBUS.
5DPSXSWLPH
5DPSXSWLPH
VFDOLQJ
5DPSGRZQWLPH
5DPSGRZQWLPH
VFDOLQJ
5HFHLYHGGDWD
S
\
W
[\
U>@
U>@
U>@
S
U>@
U>@
3='
3='
3='
3='

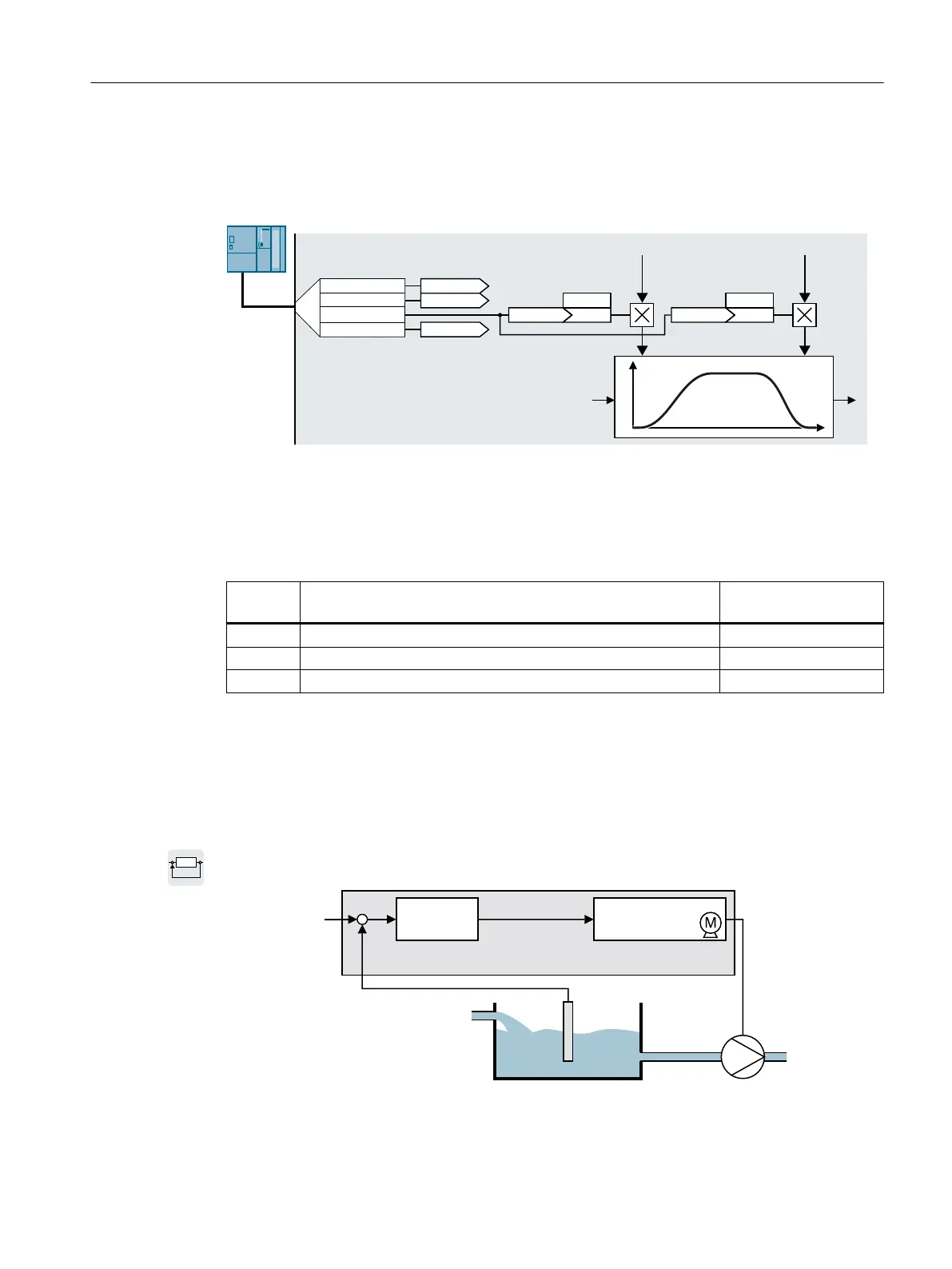

Figure8-41 Application example for changing the ramp-function generator times in operation
Parameter
Table 8-54 Parameters for setting the scaling
Parame‐
ter
Description Factory setting
p1138[C] CI: Ramp-function generator ramp-up time scaling 1
p1139[C] Down ramp scaling 1
r2050 CO: PROFIdrive PZD receive word -
8.19 PID technology controller
Overview
The technology controller controls process variables, e.g. pressure, temperature, level or 󹪞ow.
3XPS
$FWXDOYDOXH
/HYHOVHWSRLQW
7HFKQRORJ\
FRQWUROOHU
0RWRUFRQWURO6SHHGVHWSRLQW

3,'
Figure8-42 Example: Technology controller as a level controller
3,'
Advanced commissioning
8.19PID technology controller
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 289
