Siemens SINAMICS G120C DP User Manual

Advanced commissioning
8
8.1 Overview of the converter functions
Overview
0
'ULYHFRQWURO
0RWRUFRQWURO
&RPPDQGV
6HWSRLQWV
6WDWXV
3URWHFWLRQ$YDLODELOLW\
5HGXFLQJHQHUJ\
XVDJH
6DIHW\IXQFWLRQV
)DLOVDIHVWDWXV
)DLOVDIHFRPPDQGV
6HWSRLQWSURFHV
VLQJ
7HFKQRORJ\
FRQWUROOHU
3,'

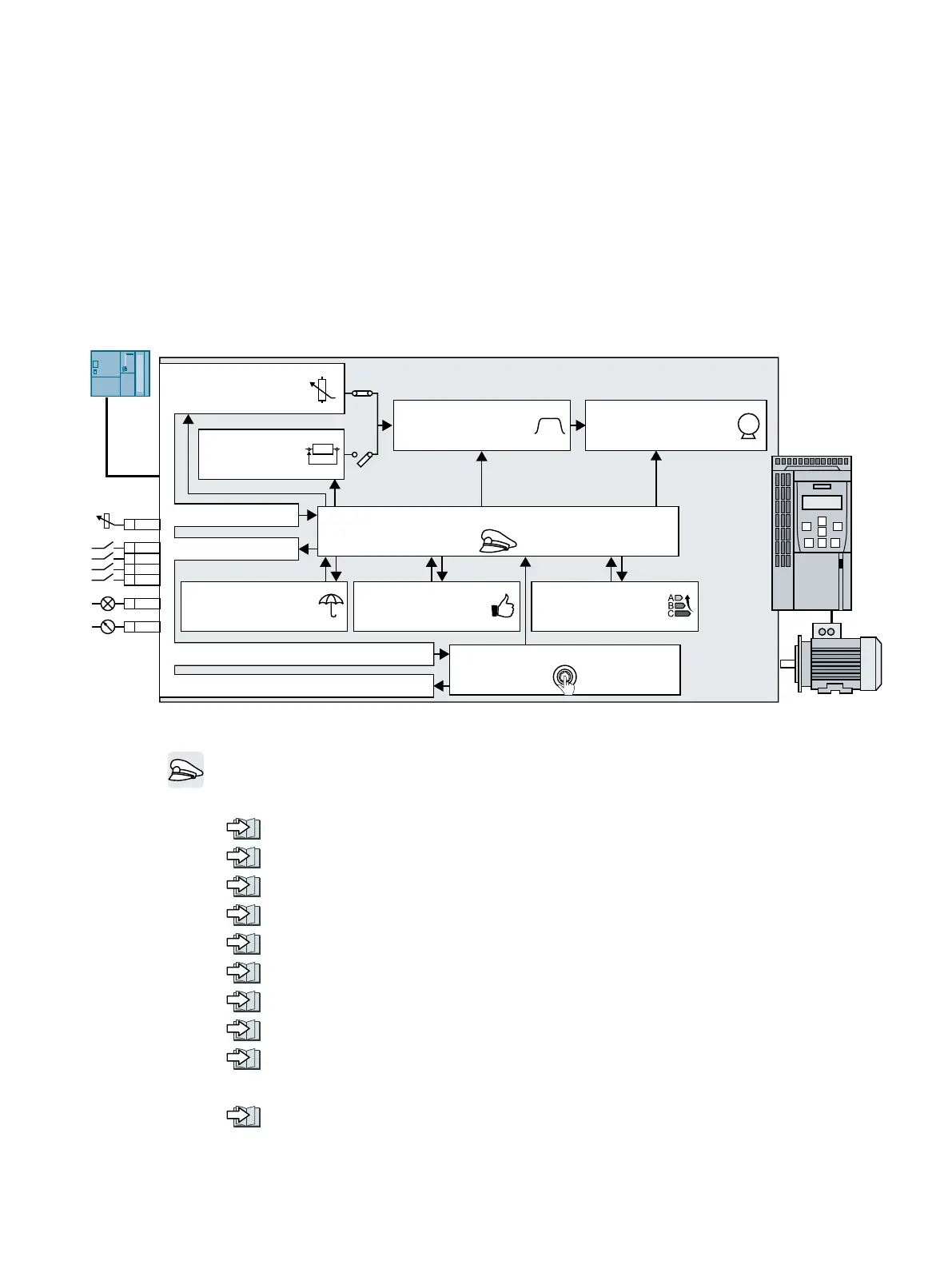

Drive control
The converter receives its commands from the higher-level control via the terminal strip
or the 󹪝eldbus interface of the Control Unit. The drive control de󹪝nes how the converter
responds to the commands.
Sequence control when switching the motor on and o󹪜 (Page186)
Adapt the default setting of the terminal strip (Page188)
Controlling clockwise and counter-clockwise rotation via digital inputs (Page200)
Drive control via PROFIBUS or PROFINET (Page211)
Drive control via Modbus RTU (Page232)
Drive control via USS (Page235)
Drive control via Ethernet/IP (Page238)
Jogging (Page240)
Limit position control (Page242)
The converter can switch between di󹪜erent settings of the drive control.
Switching over the drive control (command data set) (Page243)
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 183

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
