4.7 Mount dU/dt 󹪝lter plus Voltage Peak Limiter

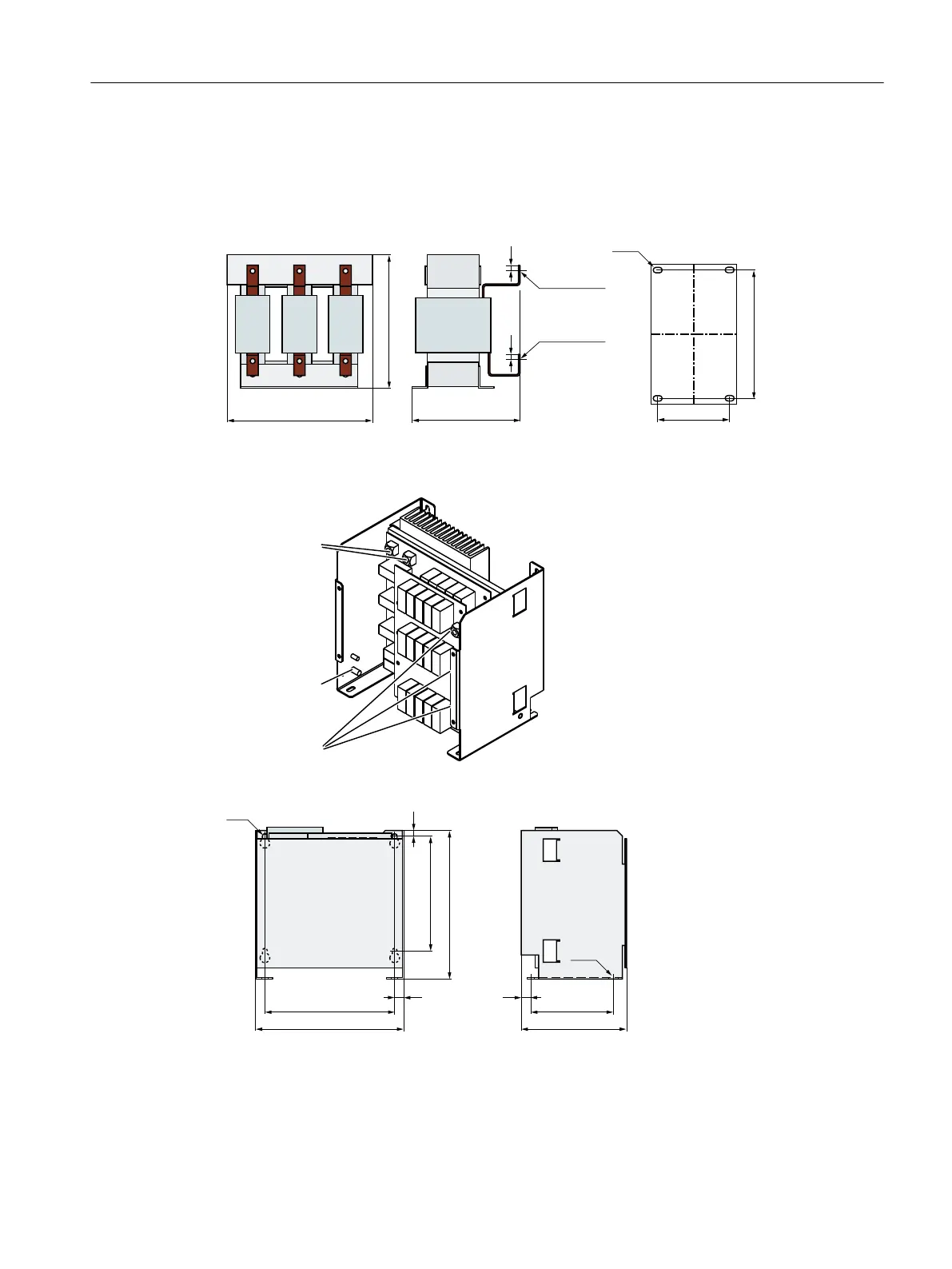

Dimensions [mm] and drilling patterns

[
[
[





Figure4-20 dU/dt 󹪝lter
Mounting: M10 screws, nuts and washers.
89:
'&36'&16
3(
Figure4-21 Overview of the Voltage Peak Limiter
[







Figure4-22 Voltage Peak Limiter
Mounting: M6‑ screws, nuts and washers.
Installing
4.7Mount dU/dt 󹪝lter plus Voltage Peak Limiter
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 61

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
