8.18.4 Skip frequency bands and minimum speed
Overview
The converter has a minimum speed and four skip frequency bands:
• The minimum speed prevents continuous motor operation at speeds less than the minimum
speed.
• Each skip frequency band prevents continuous motor operation within a speci󹪝c speed
range.

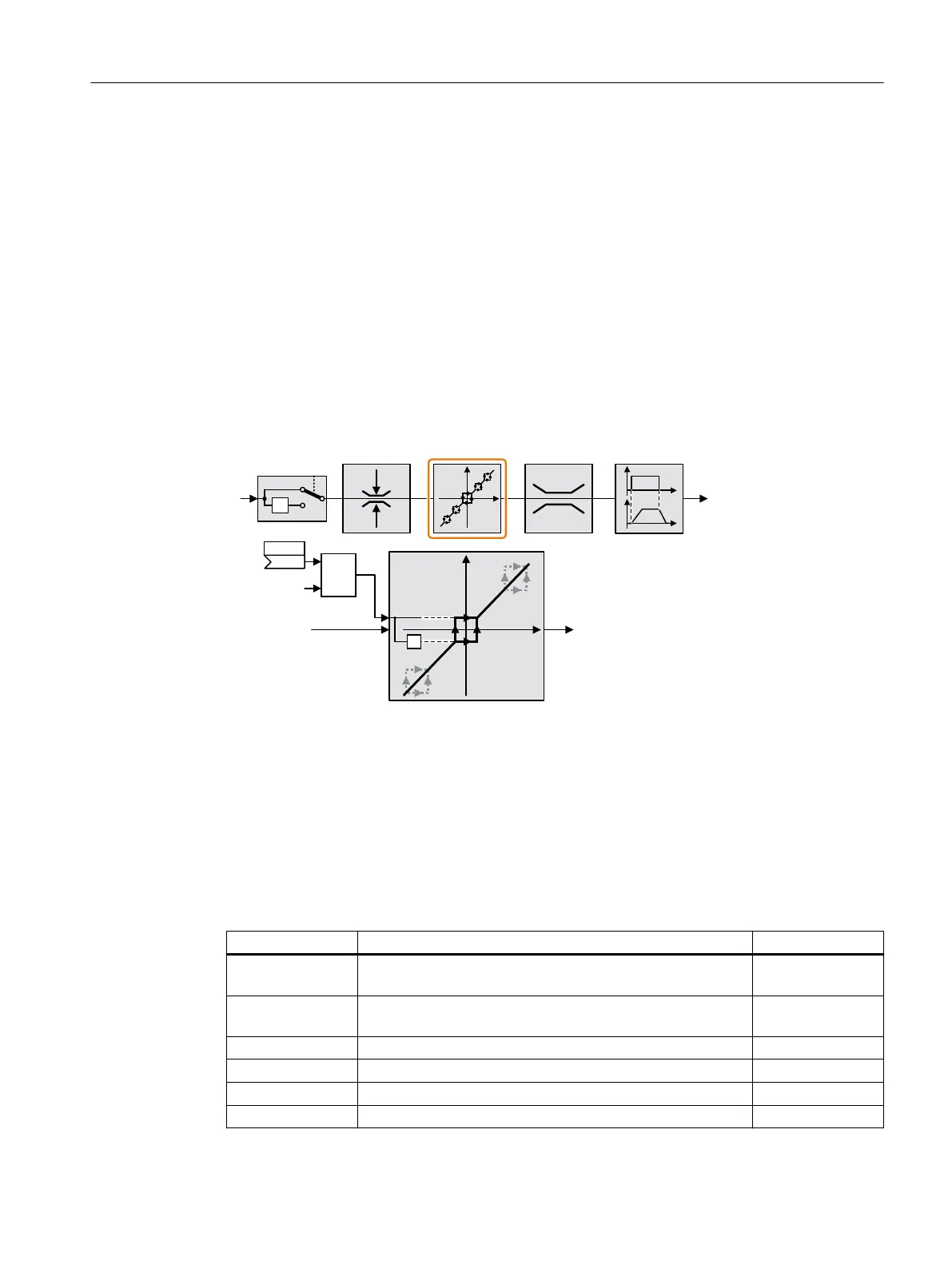

Function description
Minimum speed
0LQLPXP
VSHHG
[
[\
\




[
\
[
\
W
\\[[
0$;
S
Speeds where the absolute value is less than the minimum speed are only possible when the
motor is accelerating or braking.
Skip frequency bands
Additional information on the skip frequency bands is provided in the function diagram.
Parameter
Table 8-51 Minimum speed
Number Name Factory setting
p1051[C] CI: Speed limit of ramp-function generator, positive direction
of rotation
9733
p1052[C] CI: Speed limit of ramp-function generator, negative direction
of rotation
1086
p1080[D] Minimum speed 0rpm
p1083[D] CO: Speed limit in positive direction of rotation 210000rpm
r1084 CO: Speed limit positive active - rpm
p1085[C] CI: Speed limit in positive direction of rotation 1083
Advanced commissioning
8.18Setpoint processing
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 283

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
