4.10.7 Connecting a failsafe digital input
Overview
The converter has the following connection options for failsafe digital inputs:
• Sensor output
• PM-switching failsafe digital output
• PP-switching failsafe digital output
9'&
0
0
3
33
',
',&20
',
',&20
9'&
0
',
',
',&20
',&20
)',)'2
)'2
)',

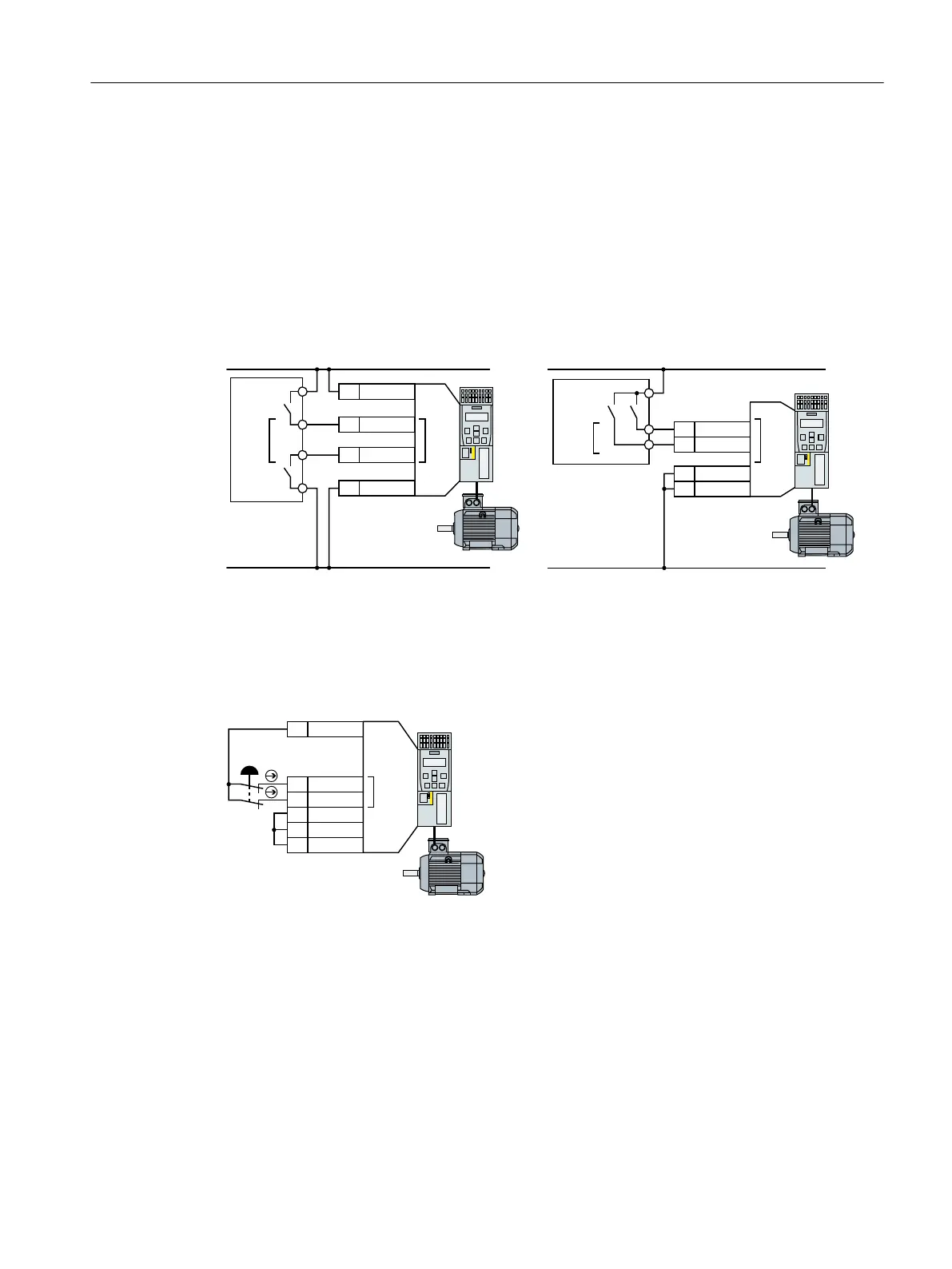

Figure4-38 Connecting a PM-switching and PP-switching failsafe digital output
Function description
The following examples comply with PL d according to EN 13849-1 and SIL2 according to IEC
61508 for the case that all components are installed within one control cabinet.
)',

9RXW
',
',
',&20
',&20
*1'
Figure4-39 Connecting a sensor, e.g. Emergency Stop mushroom pushbutton or limit switch
Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 103

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
