Siemens SINAMICS G120C DP User Manual

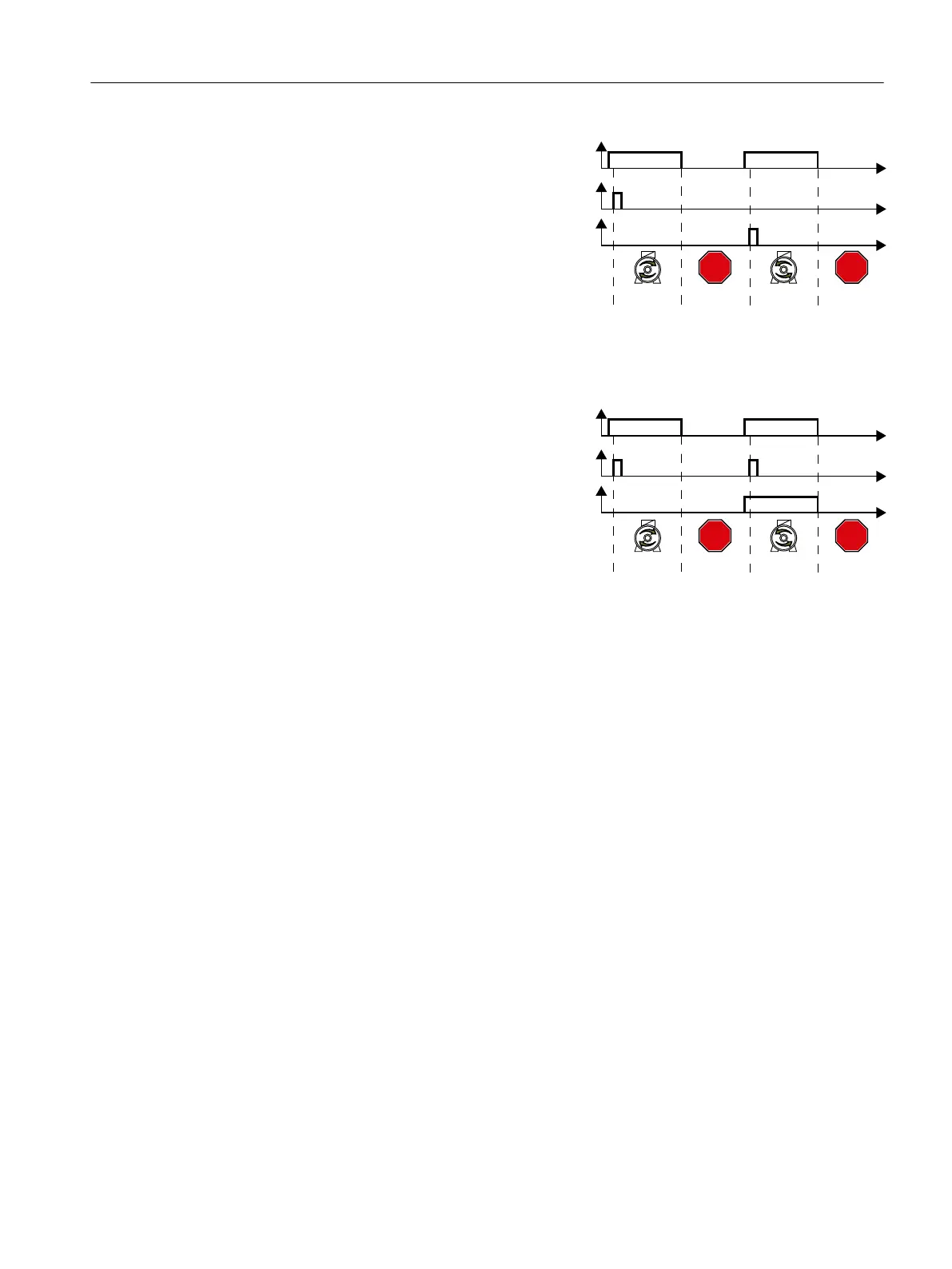

Three-wire control, enable/clock‐
wise/counterclockwise rotation
21FORFNZLVH
URWDWLRQ
(QDEOH2))
21FRXQWHU
FORFNZLVHURWDWLRQ
&ORFNZLVH&RXQWHU
FORFNZLVH
6WRS6WRS
W
W
W
67236723
Enable/OFF1:
Enables the motor to be switched on or
switched o󹪜
ON clockwise rotation:
Switches on the motor, clockwise rota‐
tion
ON counter-clockwise rotation:
Switches on the motor, counter-clock‐
wise rotation
 
Three-wire control, enable/ON/
reverse
21
(QDEOH2))
5HYHUVLQJ
&ORFNZLVH&RXQWHU
FORFNZLVH
6WRS6WRS
W
W
W
67236723
Enable/OFF1:
Enables the motor to be switched on or
switched o󹪜
ON:
Switches on the motor
Reversing:
Reverses the motor direction of rota‐
tion
Advanced commissioning
8.5Controlling clockwise and counter-clockwise rotation via digital inputs
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 201

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
