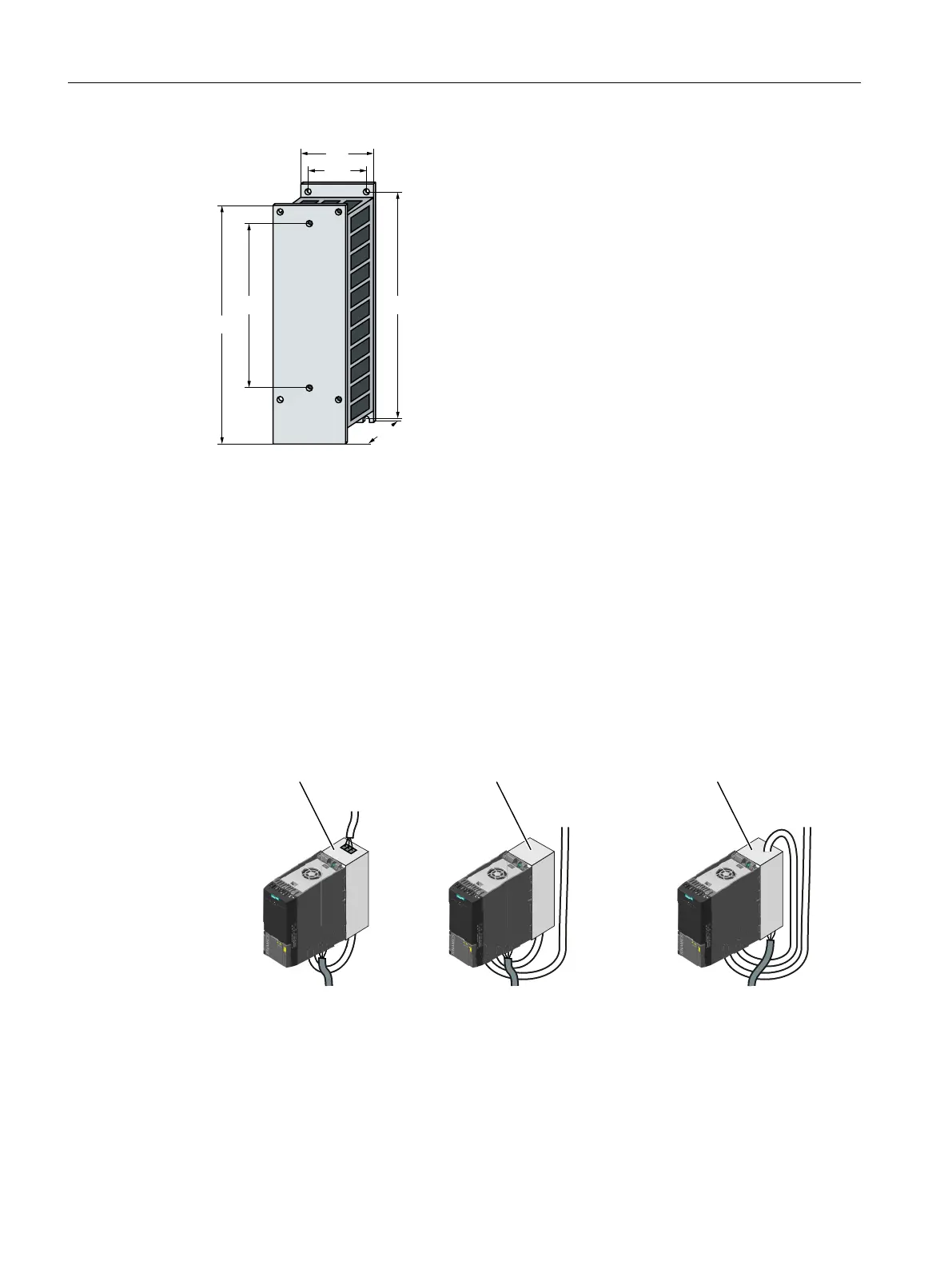

Figure4-10 Braking resistor
Mounting
Mounting of the base components:
• 4 × M4 screws
• 4 × M4 nuts
• 4 × M4 washers
Tightening torque: 5Nm
Mounting frame size FSAA on a base component
0RWRU
/LQHVXSSO\
OLQHILOWHURU
OLQHUHDFWRU
/LQHVXSSO\
OLQHILOWHURU
OLQHUHDFWRU
2XWSXWUHDFWRURU
VLQHZDYHILOWHU
0RWRU
RXWSXWUHDFWRU
RUVLQHZDYHILOWHU
%UDNLQJUHVLVWRU
0RWRU
RXWSXWUHDFWRU
RUVLQHZDYHILOWHU
/LQHVXSSO\
/LQHILOWHURUOLQH
UHDFWRU
Figure4-11 Available base components
Reactors, 󹪝lters and braking resistors are available as base components for converters, frame
size FSAA.
Mount the converter using two M4 screws on the base component.
Installing
4.3Mounting base components
SINAMICS G120C Converters
48 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
