Protection against the spread of 󹪝re
The device may be operated only in closed housings or in control cabinets with protective covers
that are closed, and when all of the protective devices are used. The installation of the device in
a metal control cabinet or the protection with another equivalent measure must prevent the
spread of 󹪝re and emissions outside the control cabinet.
Protection against condensation or electrically conductive contamination
Protect the device, e.g. by installing it in a control cabinet with degree of protection IP54
according to IEC 60529 or NEMA 12. Further measures may be necessary for particularly critical
operating conditions.
If condensation or conductive pollution can be excluded at the installation site, a lower
degree of control cabinet protection may be permitted.
Dimensions
:LGWK
+HLJKW
+HLJKWLQFOXGLQJVKLHOGSODWH
2SHUDWRU3DQHO
'HSWK
PPPP

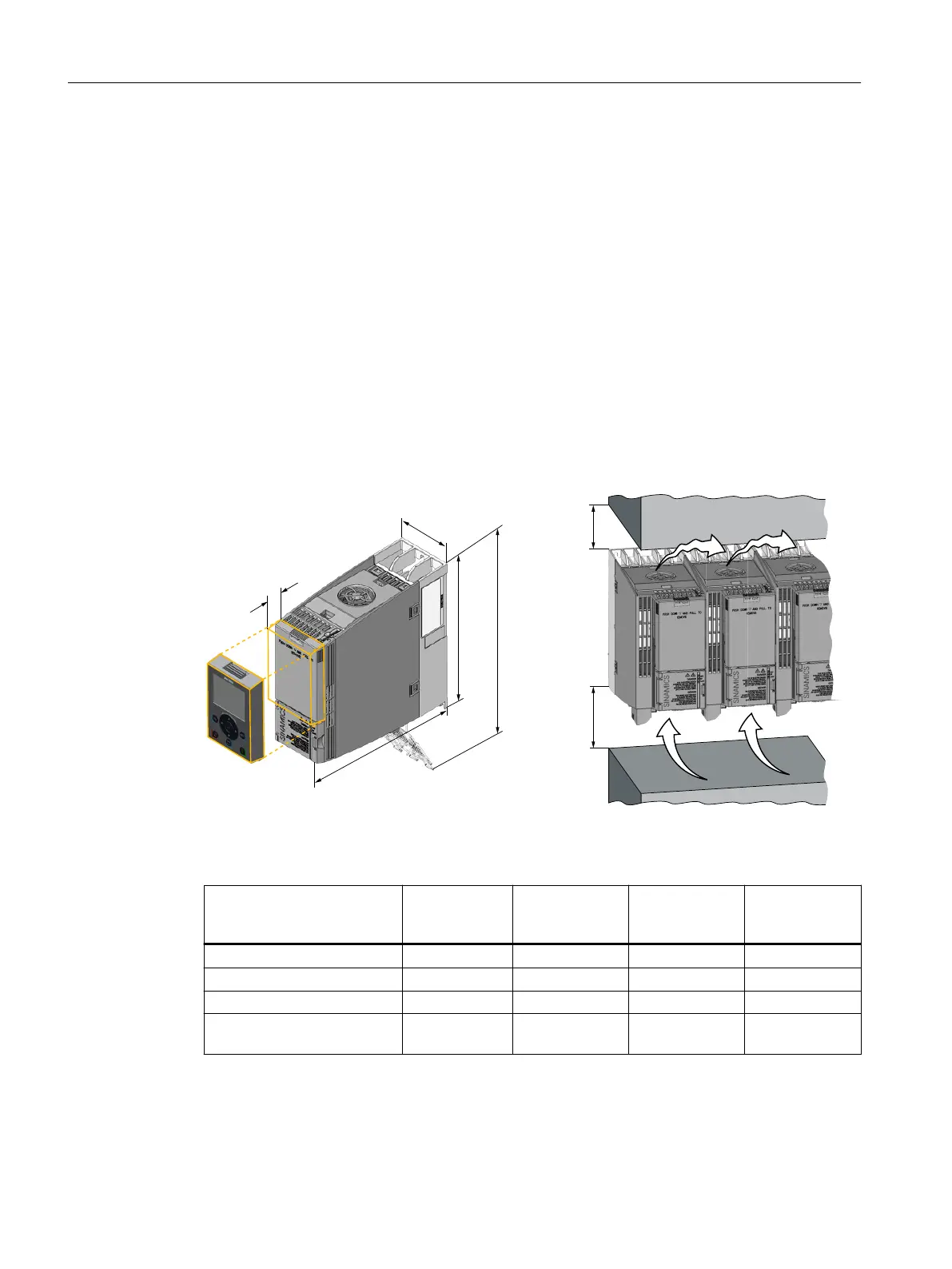

Figure4-14 Dimensions and minimum spacing to other devices, FSAA ... FSC
Table 4-1 Dimensions, FSAA … FSC
 Frame size AA
0.55kW …
2.2kW
Frame size A
3.0kW …
4.0kW
Frame size B
5.5kW …
7.5kW
Frame size C
11kW …
18.5kW
Height 173mm 196 mm 196 mm 295 mm
Height including shield plate 268mm 276mm 276mm 375mm
Width 73 mm
1)
73 mm 100mm 140 mm
Depth of the converter with
PROFINET interface
160 mm 200 mm 205 mm 205 mm
Installing
4.4Mounting the converter
SINAMICS G120C Converters
50 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
