Frame size AA
0.55kW …
2.2kW
Frame size A
3.0kW …
4.0kW
Frame size B
5.5kW …
7.5kW
Frame size C
11kW …
18.5kW
Depth of the converter with
USS/MB or PROFIBUS interface
155 mm 203 mm 203 mm 203 mm
Additional depth with opera‐
tor panel attached
+ 11 mm with inserted BOP‑2 (Basic Operator Panel) or IOP‑2 (Intelligent
Operator Panel)
1)
The line reactor, output reactor and sine-wave 󹪝lters as base components are 76 mm wide. If you mount
the converter on one of these base components and several converters are mounted laterally, this will
result in increased space requirements.
0LQLPXPVSDFLQJDWWKHIURQWPP
+HLJKWLQFOXGLQJVKLHOGSODWH
,QYHUWHUKHLJKW
:LGWK
'HSWK
2SHUDWRU3DQHO
PPPP

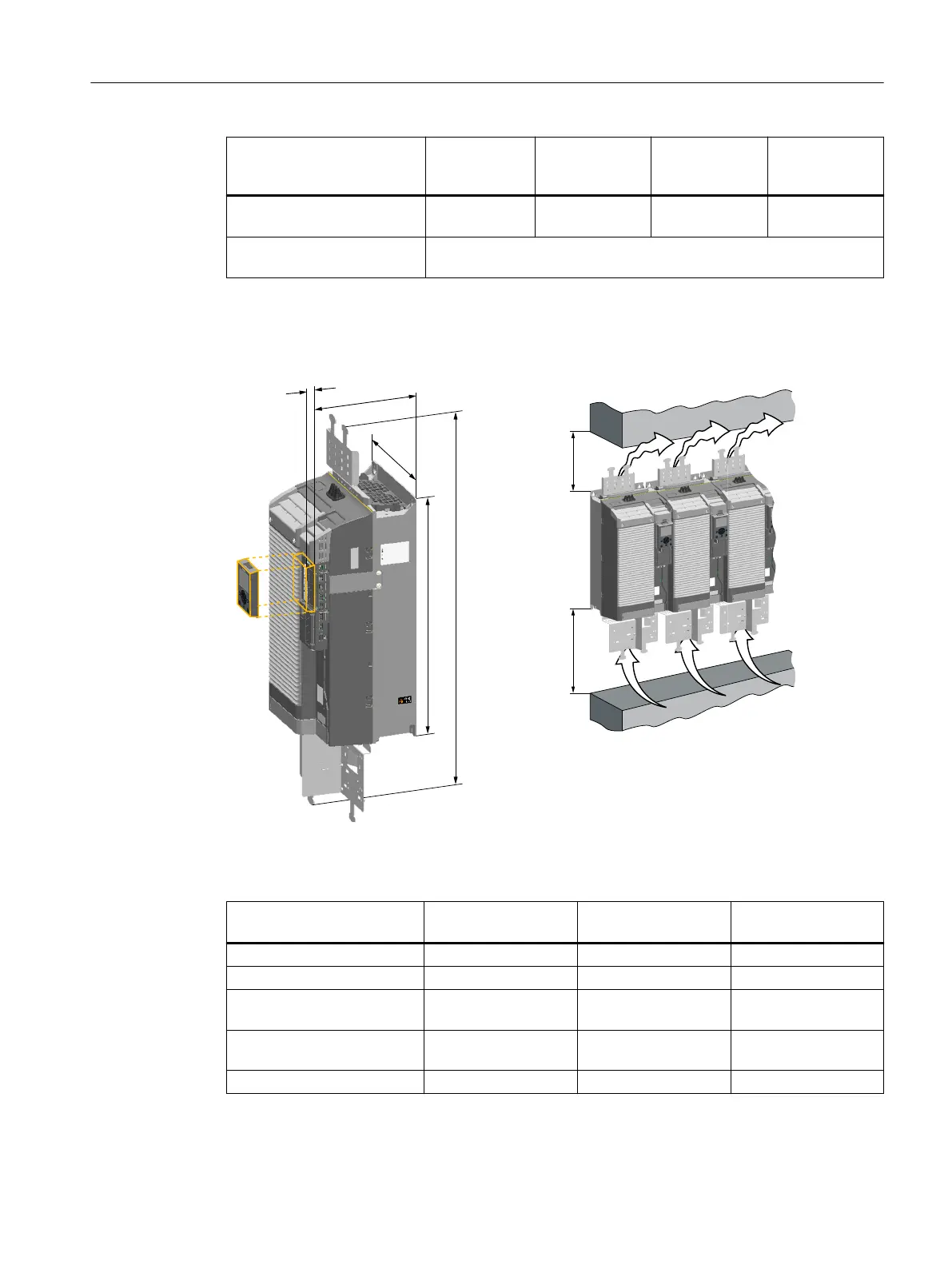

Figure4-15 Dimensions and minimum spacing to other devices, FSD … FSF
Table 4-2 Dimensions, FSD…FSF
Frame size D
22kW … 45kW
Frame size E
55kW
Frame size F
75kW … 132kW
Converter height 472 mm 551 mm 708 mm
Height including shield plate 708mm 850mm 1107mm
Height of the lower shield
plate
152mm 177mm 257mm
Height of the upper shield
plate
1)
84mm 123mm 142mm
Width 200 mm 275 mm 305 mm
Installing
4.4Mounting the converter
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 51
