Siemens SINAMICS G120C DP User Manual

 Frame size D
22kW … 45kW
Frame size E
55kW
Frame size F
75kW … 132kW
Depth 237 mm 237 mm 357 mm
Additional depth with opera‐
tor panel (OP) attached
+ 11 mm with inserted BOP‑2 (Basic Operator Panel) or IOP‑2 (Intelligent
Operator Panel)
1)
The upper shield plate is optionally available

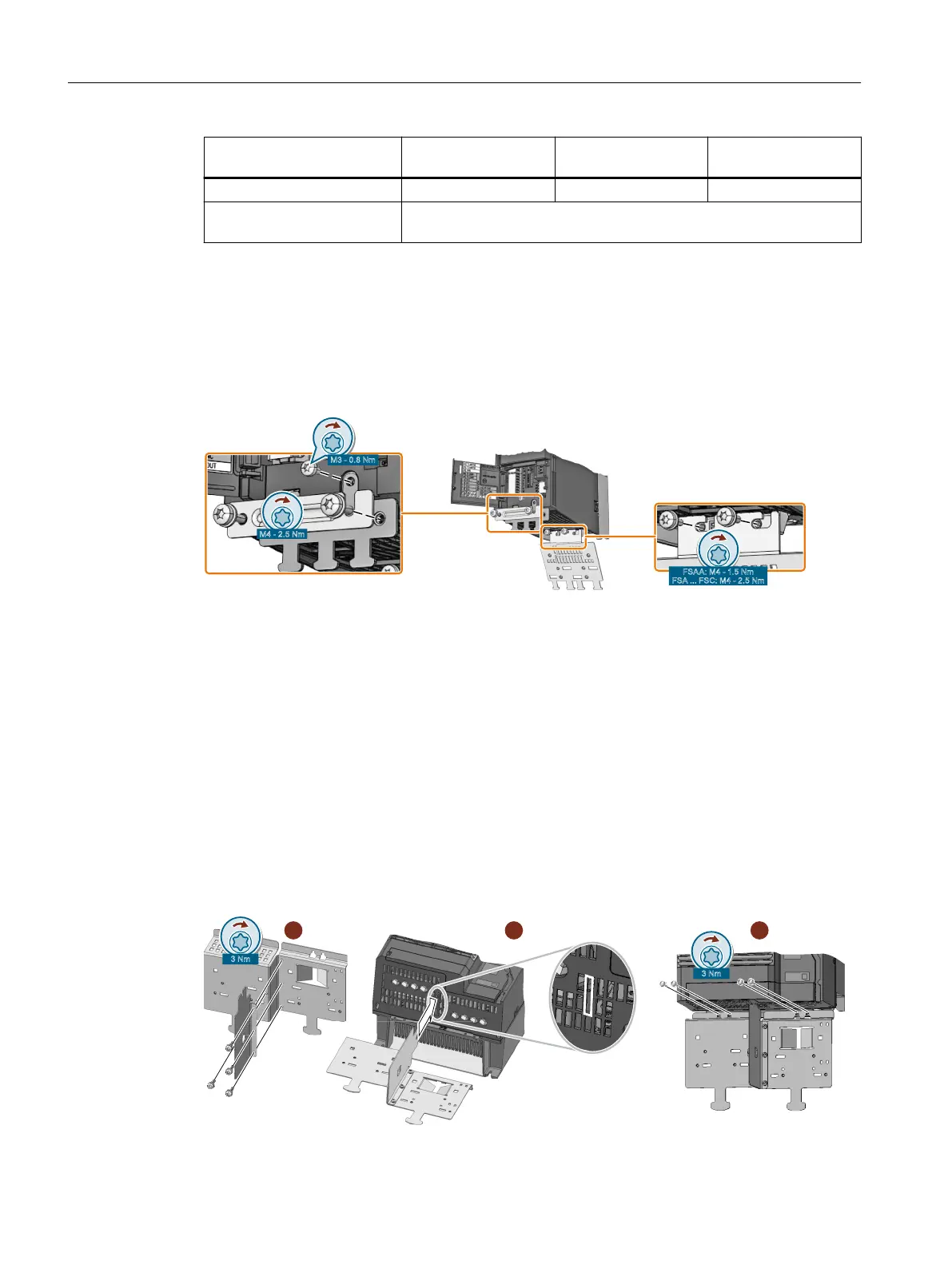

Mounting the shield plates, FSAA…FSC
We recommend that you mount the shield plates provided. The shield plates make it simpler to
install the converter in compliance with EMC regulations and to provide strength relief for the
connected cables.
01P
01P
)6$$01P
)6$)6&01P
Figure4-16 Mounting the shield plates, FSAA…FSC
Mounting the shield plate and EMC connecting bracket, FSD…FSE
Procedure
1. If you are using a converter with an integrated line 󹪝lter, then mount the EMC connecting
bracket on the shield plate ①.
On converters without a 󹪝lter, the EMC connecting bracket is not included in the scope of
supply of the converter.
2. Then slide the shield module into the converter, so that it is held in the converter ② by the
clamping spring. The shield module is located correctly if it can be easily withdrawn from the
converter without any resistance.
3. After you have ensured that it is correctly located, 󹪝x the shield module using the four
screws ③.

1P
1P
Installing
4.4Mounting the converter
SINAMICS G120C Converters
52 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
