You have mounted the EMC connecting bracket and the shield plate.
❒

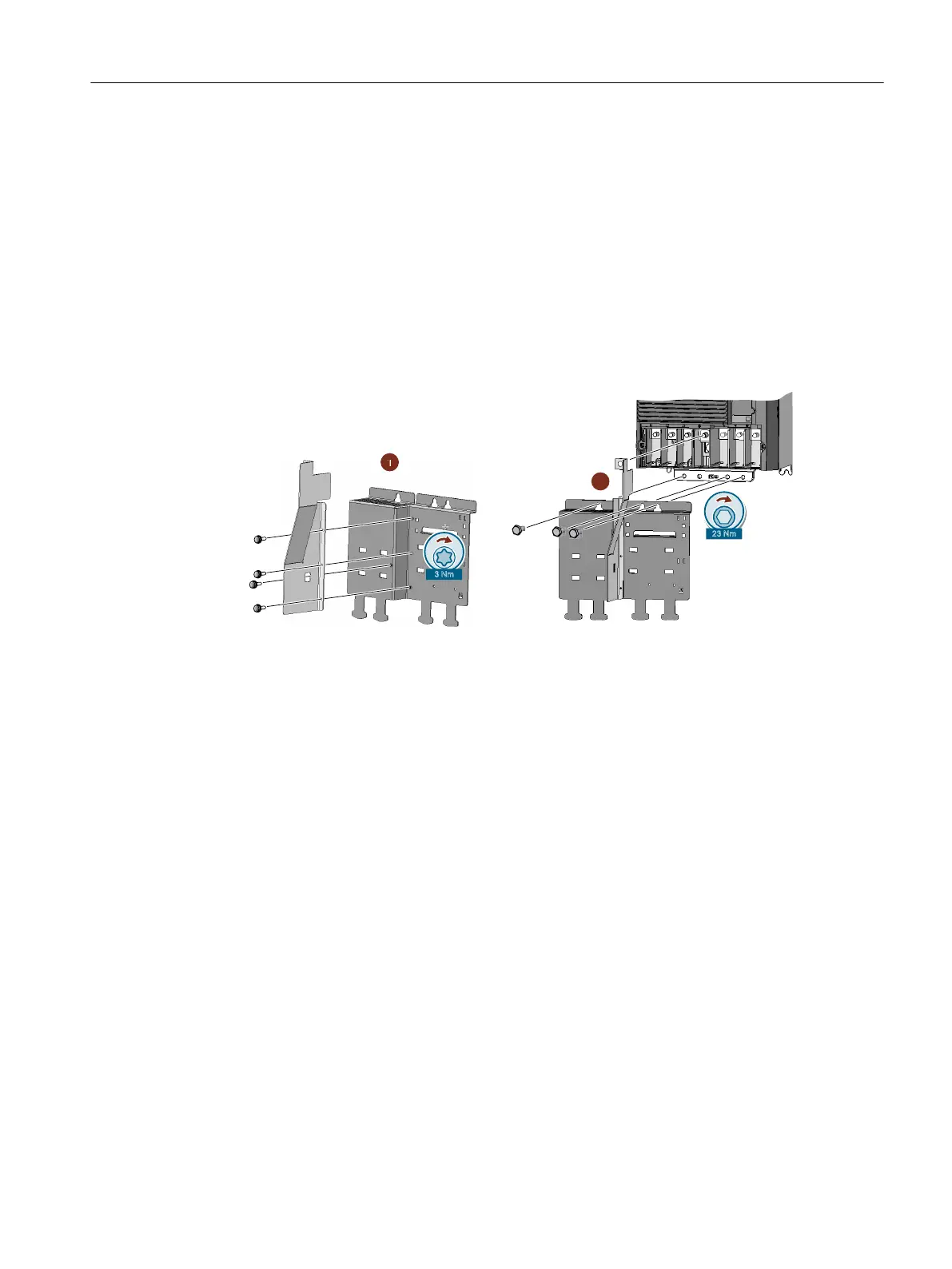

Mounting the shield plate and EMC connecting bracket, FSF
Procedure
1. If you are using a converter with an integrated line 󹪝lter, then mount the EMC connecting
bracket on the shield plate ①.
On converters without a 󹪝lter, the EMC connecting bracket is not included in the scope of
supply of the converter.
2. Screw the shield module to the converter ② using three screws, as shown in the 󹪝gure.



1P
1P
You have mounted the EMC connecting bracket and the shield plate.
❒
Installing
4.4Mounting the converter
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 53

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
