Mounting on a control cabinet panel

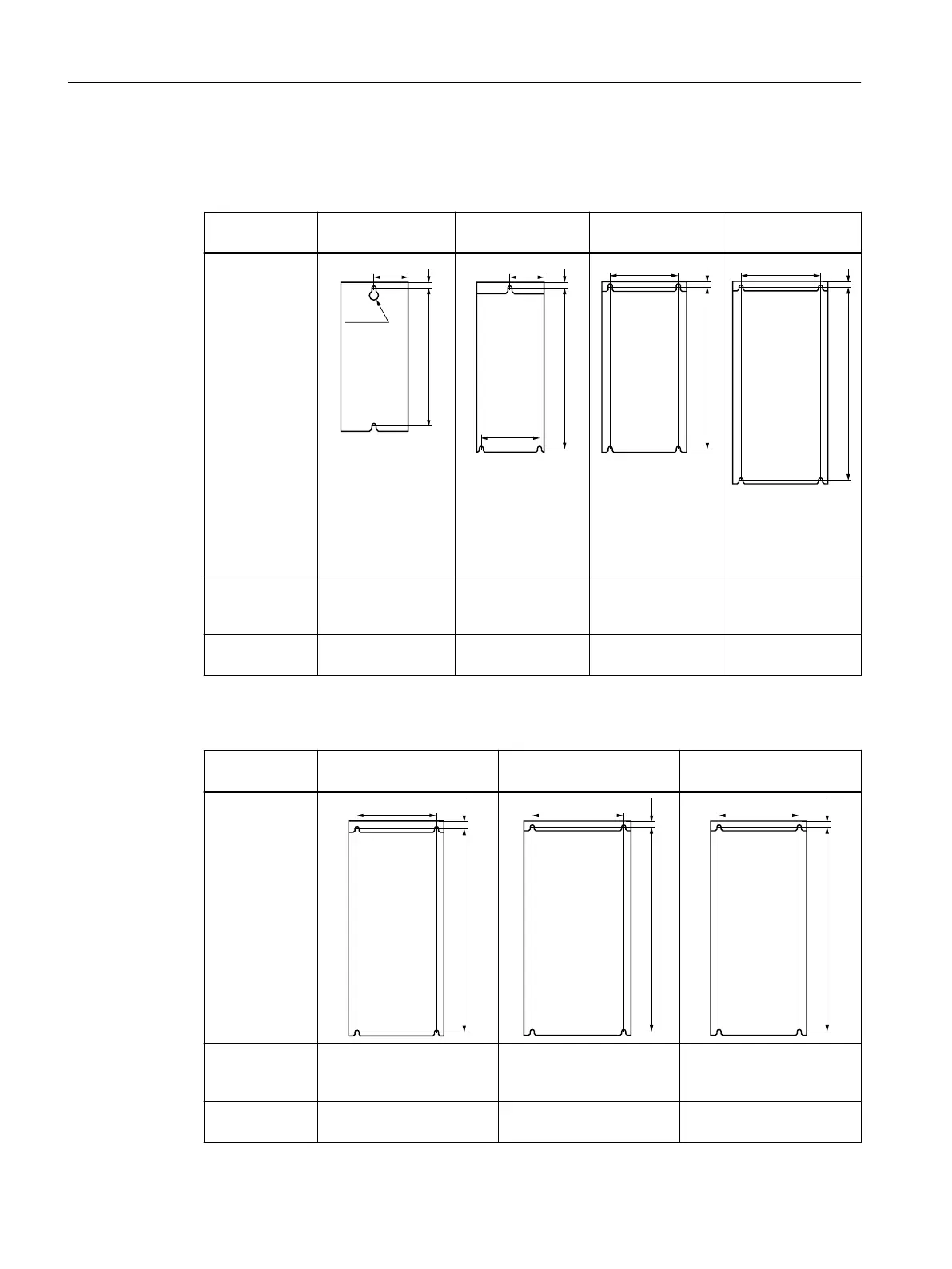

Table 4-3 Drilling patterns and mounting equipment, FSAA … FSC
 Frame size AA
0.55kW … 2.2kW
Frame size A
3.0kW … 4.0kW
Frame size B
5.5kW … 7.5kW
Frame size C
11kW … 18.5kW
Drilling pattern




Drilling pattern
without shield plate
When the shield
plate is mounted,
the drilling pattern
is compatible to
frame size A








Mounting parts 2 × M4 bolts
2 × M4 nuts
2 × M4 washers
3 × M4 bolts
3 × M4 nuts
3 × M4 washers
4 × M4 bolts
4 × M4 nuts
4 × M4 washers
4 x M5 bolts
4 x M5 nuts
4 x M5 washers
Tightening tor‐
que
2.5 Nm 2.5 Nm 2.5 Nm 2.5 Nm
Table 4-4 Drilling templates and mounting equipment, FSD … FSF
 Frame size D
22kW … 45kW
Frame size E
55kW
Frame size F
75kW … 132kW
Drilling pattern







Mounting parts 4 x M5 bolts
4 x M5 nuts
4 x M5 washers
4 x M6 bolts
4 x M6 nuts
4 x M6 washers
4 x M8 bolts
4 x M8 nuts
4 x M8 washers
Tightening tor‐
que
6 Nm 10 Nm 25 Nm
Installing
4.4Mounting the converter
